Repair information 4-41

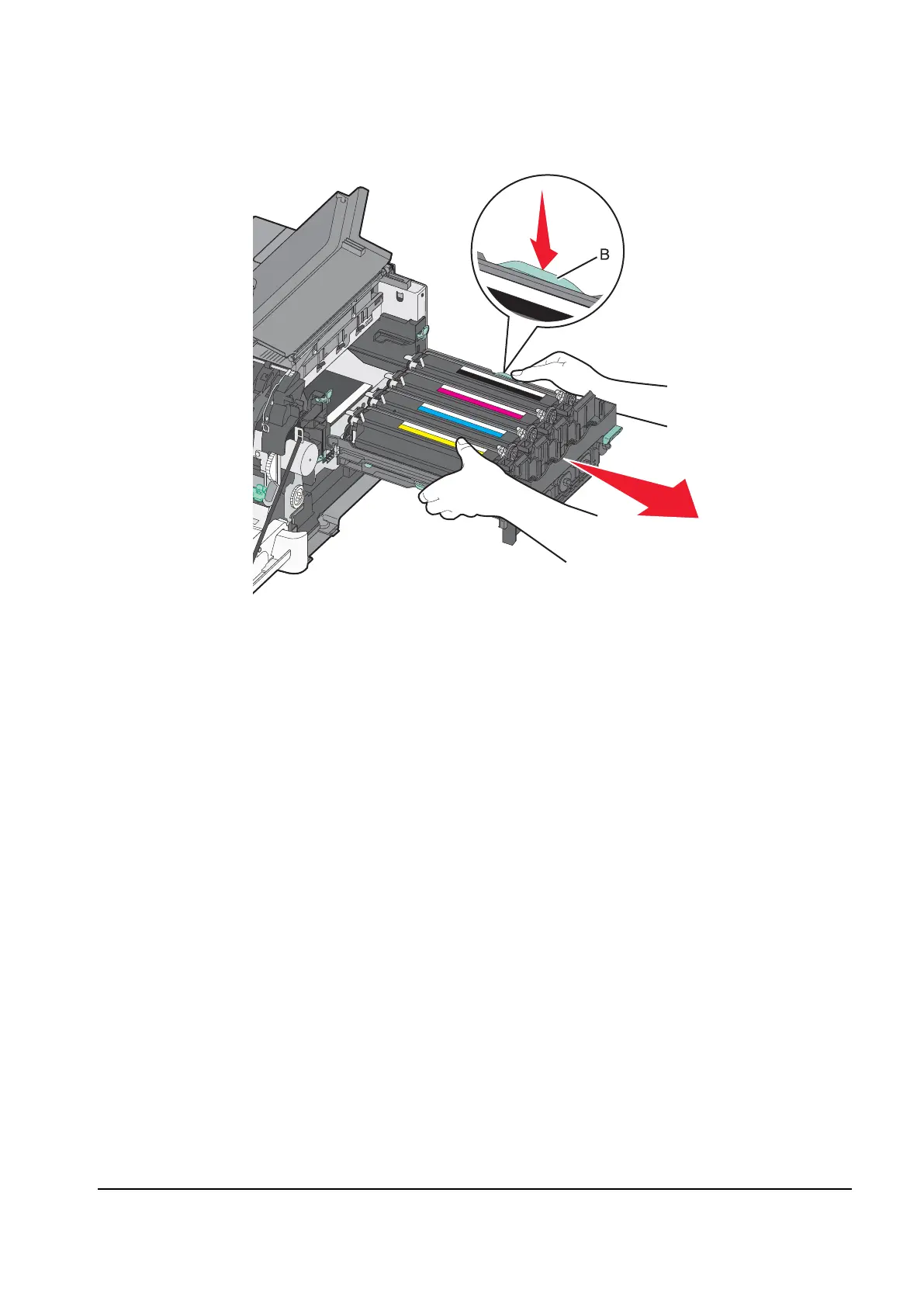

7. Press and hold the release lever (B), and pull the imaging unit straight out.

Warning: When pulling the imaging unit out, Only grab the release levers (B) of the imaging unit.Do not touch

the photoconductors in the bottom of the imaging unit.

Y112730-2
