Repair information 4-23

Duplex sensor removal

1. Remove the waste toner container. See “Waste toner bottle” on page 4-67.

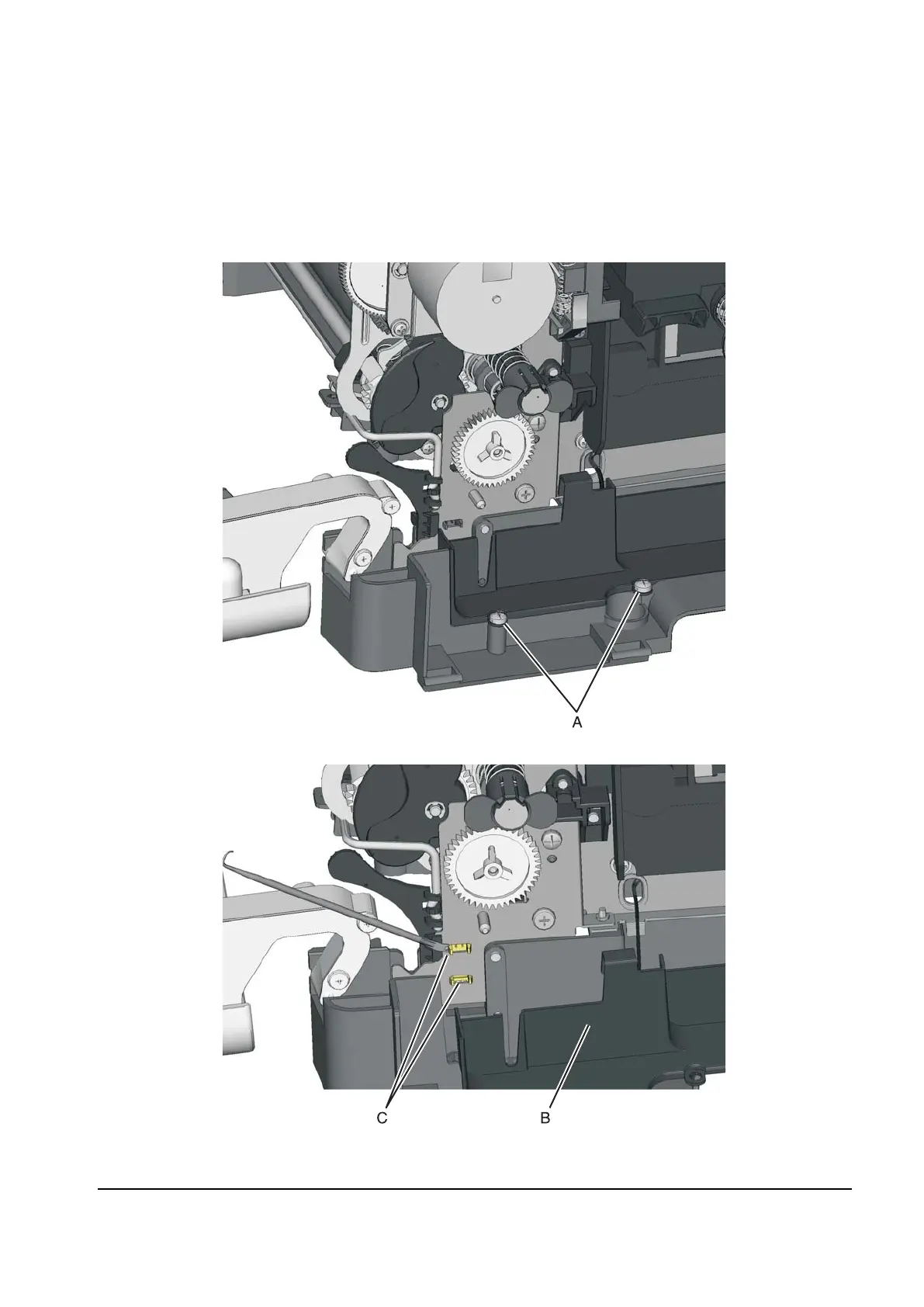

2. Remove the two screws (A) from the cable channel cover.

3. Pull the corner of the cable channel cover (B) away from the right side to access the sensor posts (C).

Y112730-2
