4-4 Service Manual

Front middle cover removal

1. Open the front cover.

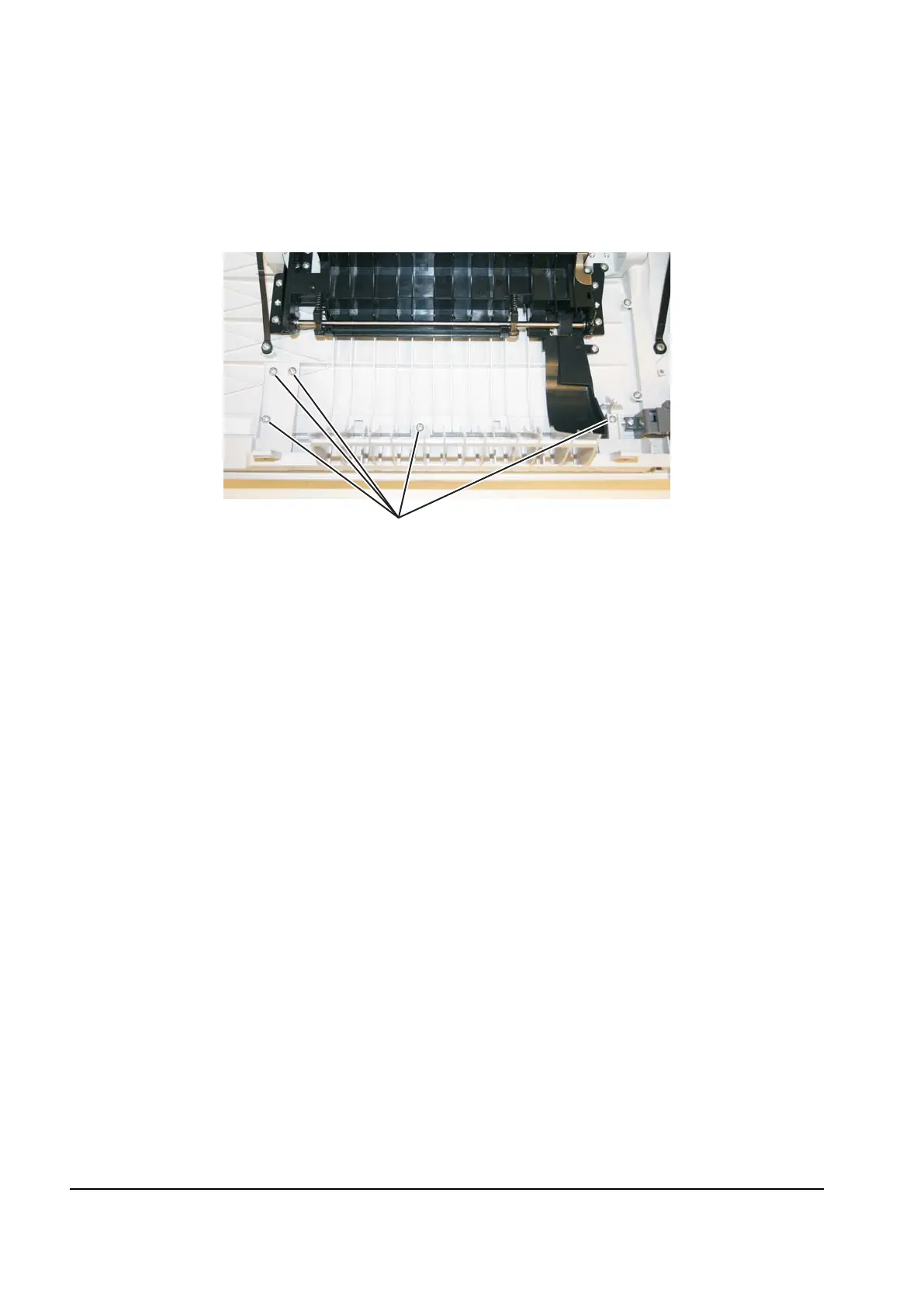

2. Remove the five screws (A) attaching the front middle cover to the lower front cover.

3. Pull the front middle cover away from the front cover.

Left cover removal

1. Remove the media tray.

2. Open the front cover.

3. Position the printer with the left side hanging over the edge of the table.
