Repair information 4-3

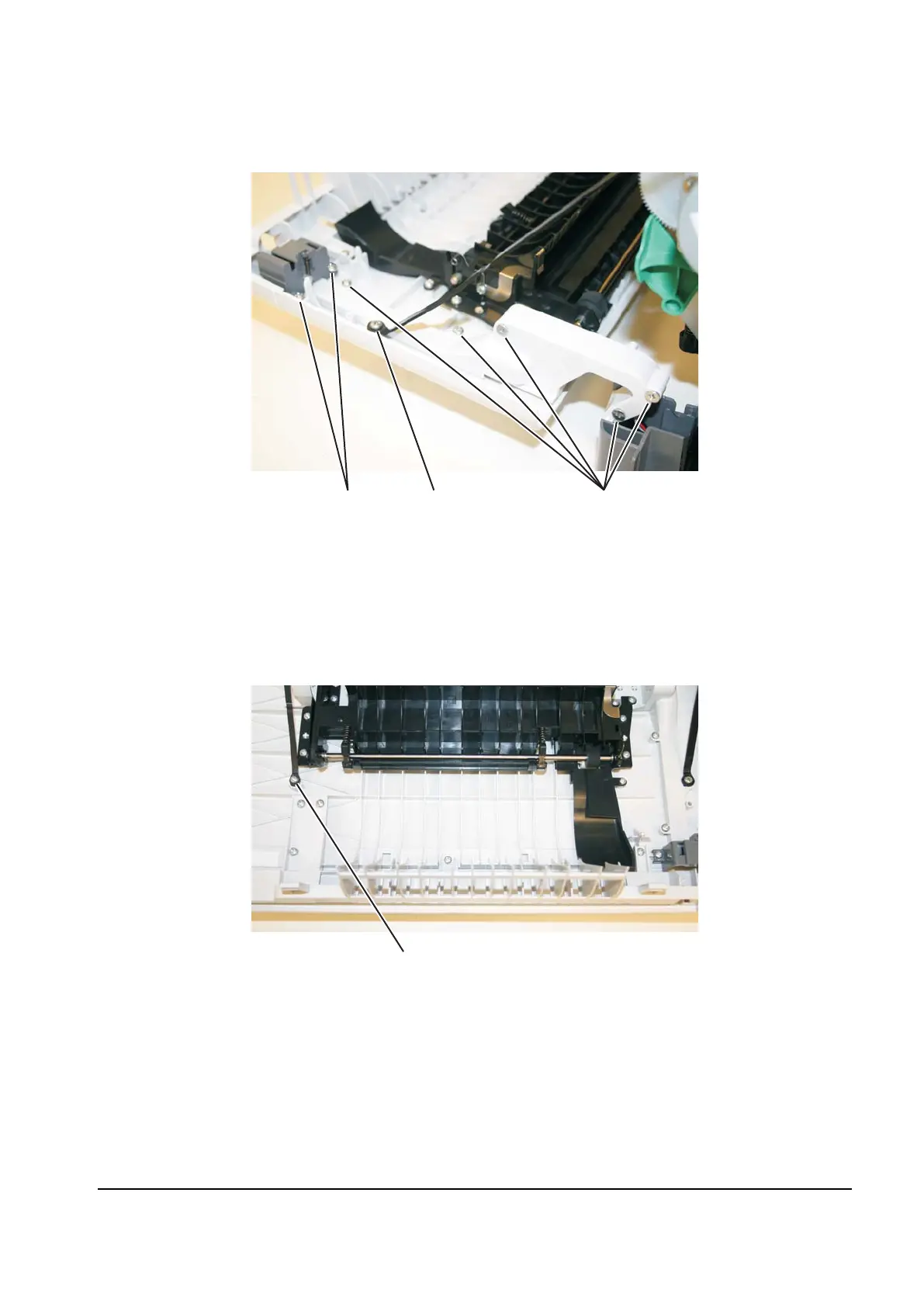

4. Remove the five screws (A) from the cable cover.
5. Remove the cable cover.
6. Remove the screw (B) securing the right restraining strap to the front cover.
Note: Support the door with one hand after removing the screw holding the restraining strap. This is the
longest screw of the eight. The two flat head Phillips screws are used in the door hinge.
7. Remove the two screws (C) securing the interlock and cable.
8. Route the cable through the right hinge.
Note: Make a note of the interlock sensor cable routing through the right hinge and front door.
9. Remove screw (D) securing the restraining strap to the left side of the front door.
10. Lower the front cover to align the flats on the hinges, and remove the front cover.
Y112730-2
