Repair information 4-31

High-voltage power supply (HVPS) assembly removal

1. Remove the left cover.

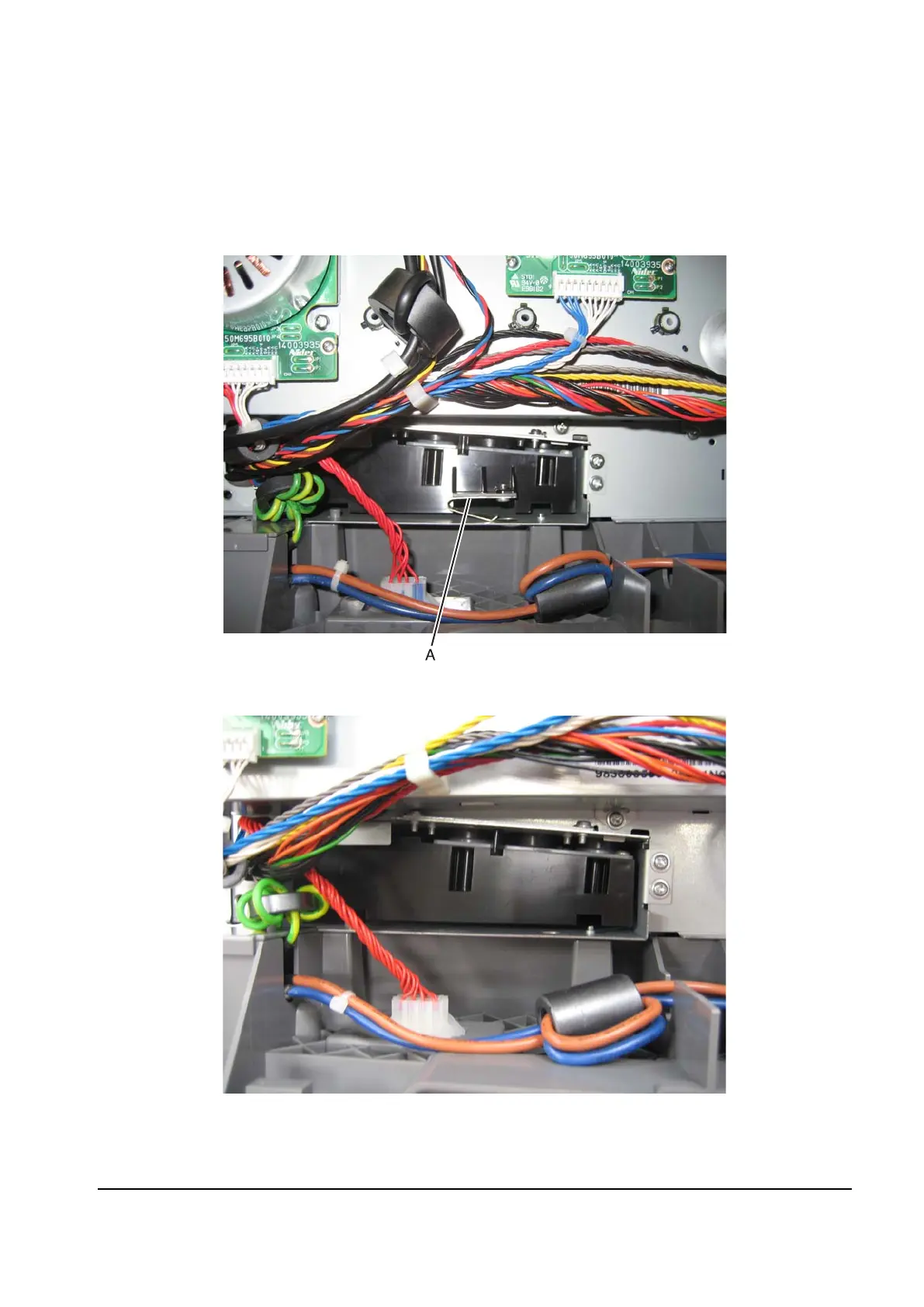

2. Is there a leaf spring (A) biasing the HVPS upward?

• Go to “High-voltage power supply (HVPS) with spring” on page 4-33

• If there is no spring, go to “High voltage power supply (HVPS) with no spring removal” on

page 4-32 below.

Y112730-2
