Repair information 4-15

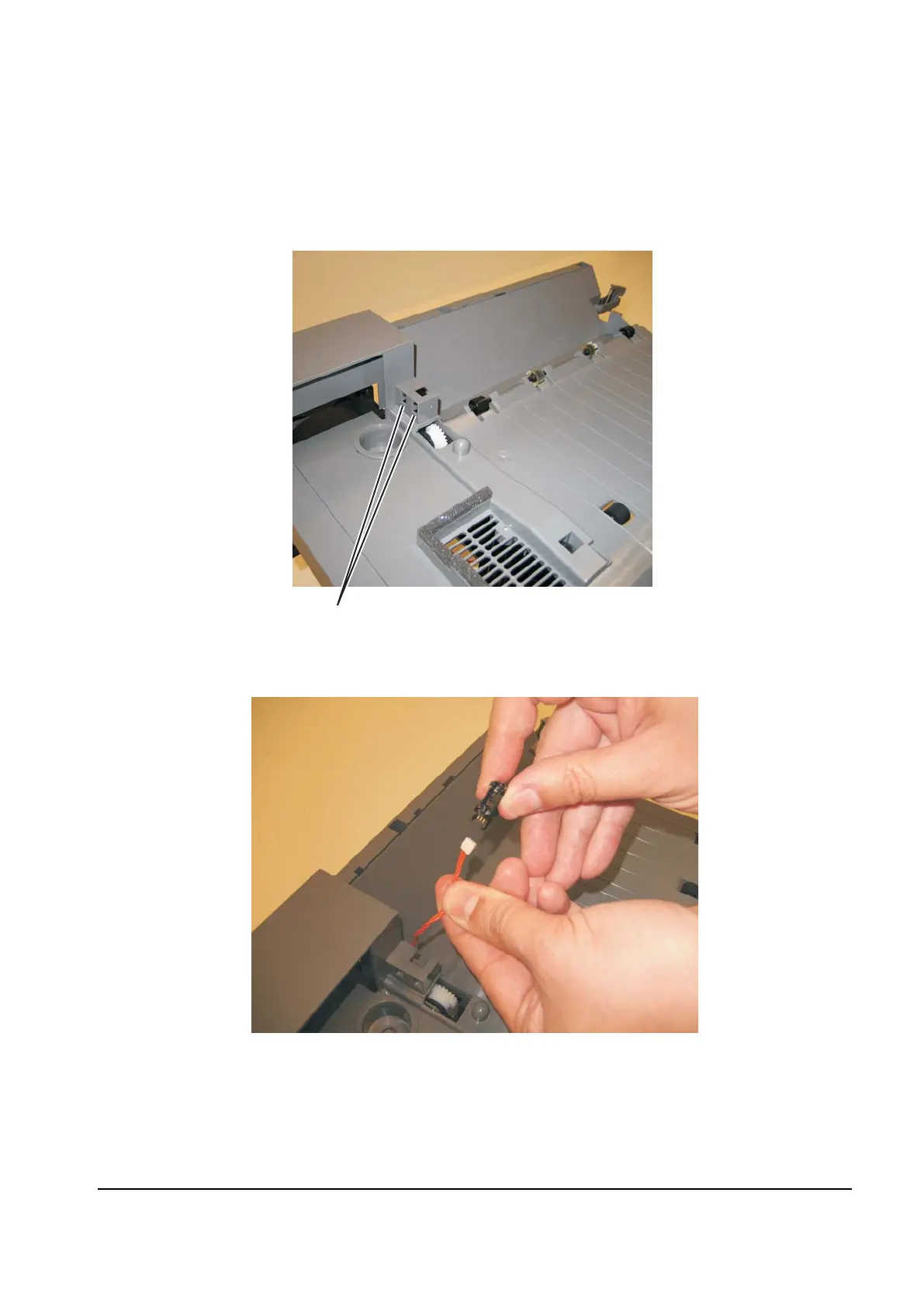

Bin full sensor

1. Remove the flatbed unit. See “Flatbed removal” on page 4-72.

2. Using a small flatblade screwdriver, gently depress the tabs (A) which secure the sensor to the top cover

assembly.

3. Pull the sensor away from the top cover assembly.

4. Disconnect the sensor from the cable.

Y112730-2
