Repair information 4-69

Wireless network antenna

1. Remove the rear shield. See “Rear shield removal” on page 4-7.

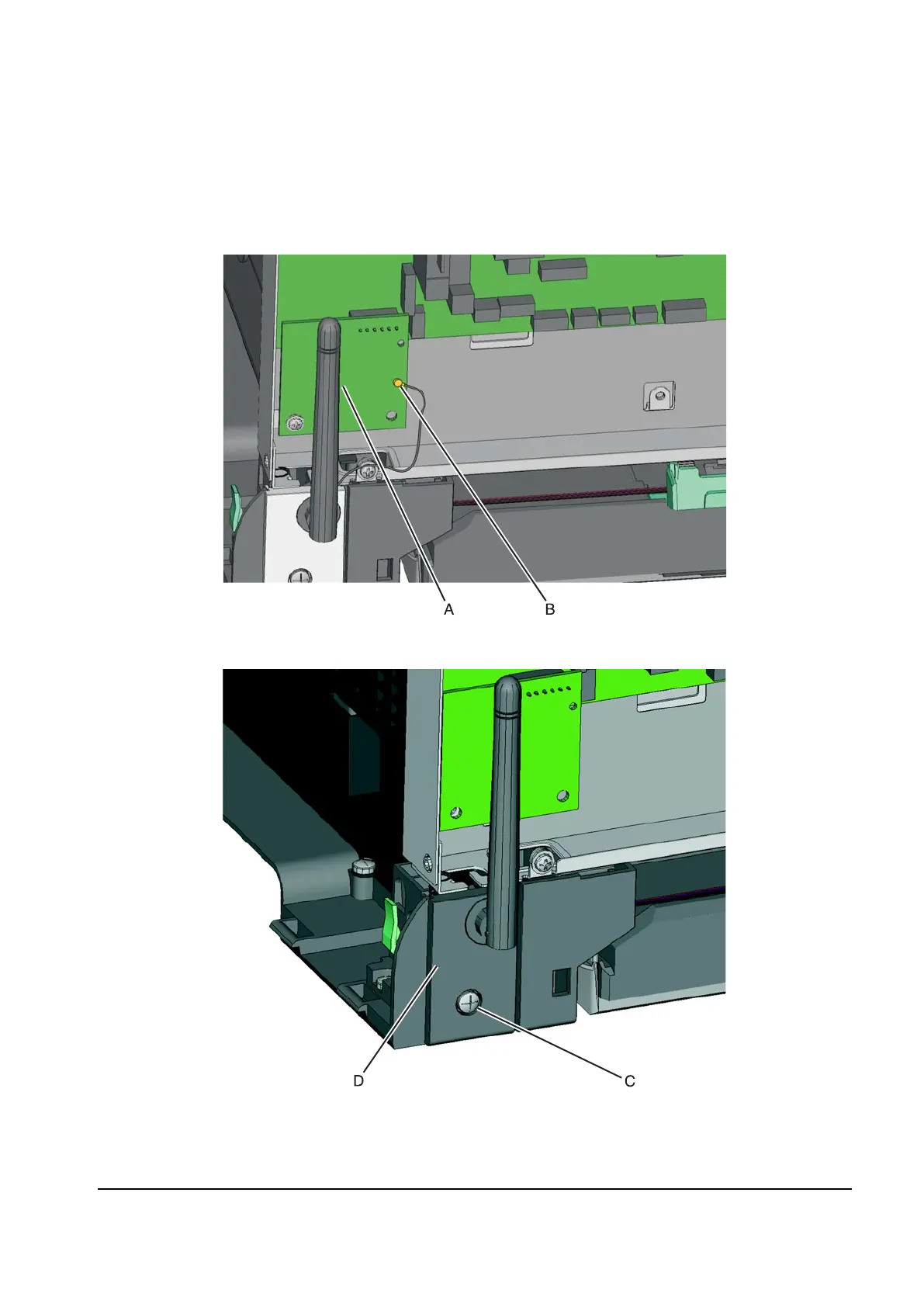

2. Lift to disconnect the wireless card (A) from the controller board.

3. Carefully disconnect the antenna cable (B) from the wireless card at the card.

4. Remove the screw (C) that secures the antenna cover (D) to the frame, and remove the antenna cover and

antenna.

Y112730-2
