Repair information 4-43

Low-voltage power supply (LVPS) assembly

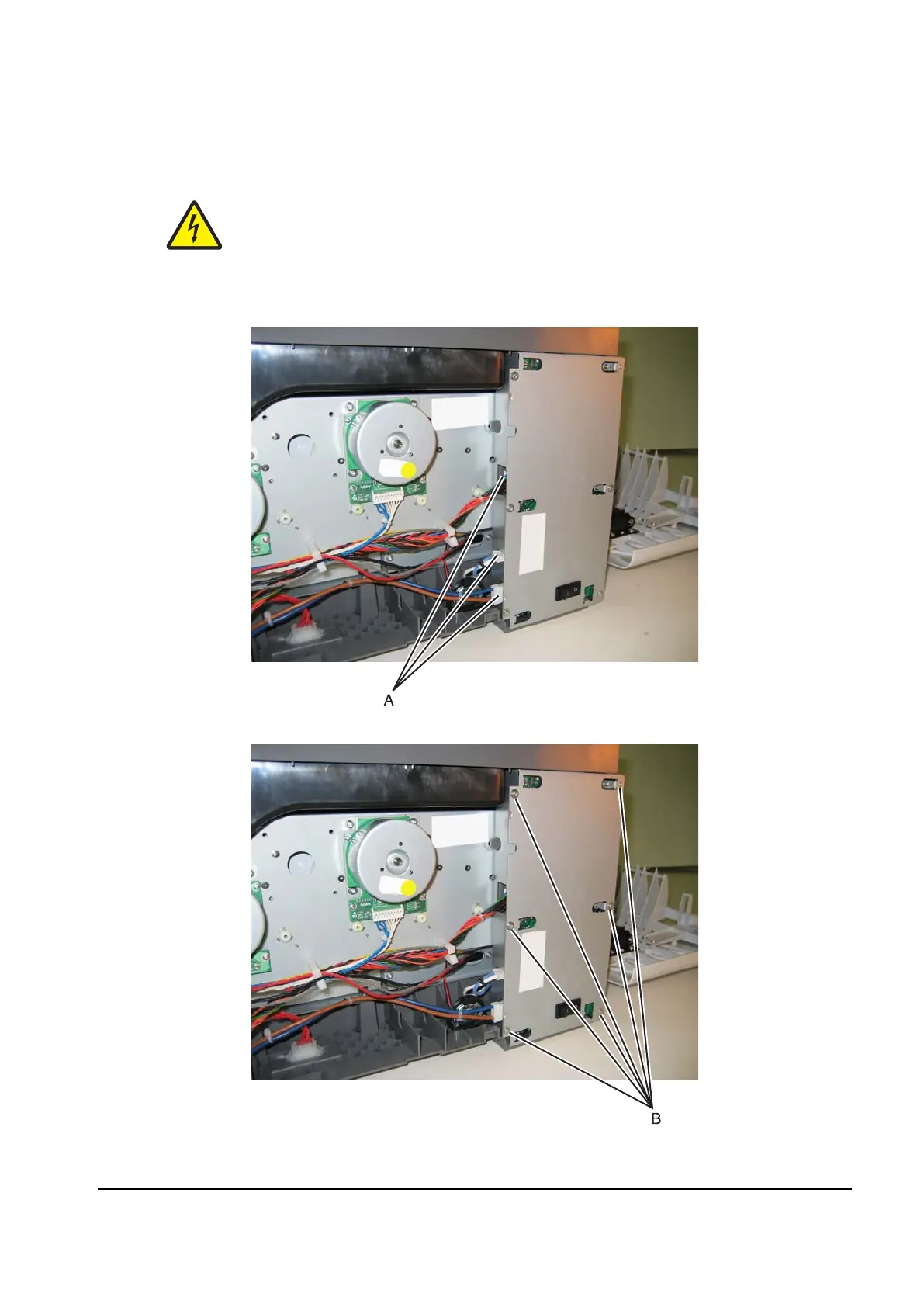

1. Remove the left cover. See “Left cover removal” on page 4-4.

2. Disconnect the three cables (A) from the LVPS.

3. Remove the six screws (B) and the ground cable connected to the LVPS cage.

4. Remove the LVPS.

Y112730-2
