Diagnostic aids 3-45

291.xx ADF paper jams

Remove all original documents from the ADF input tray.

2. Remove the ADF input tray. See “ADF input tray” on page 4-84.

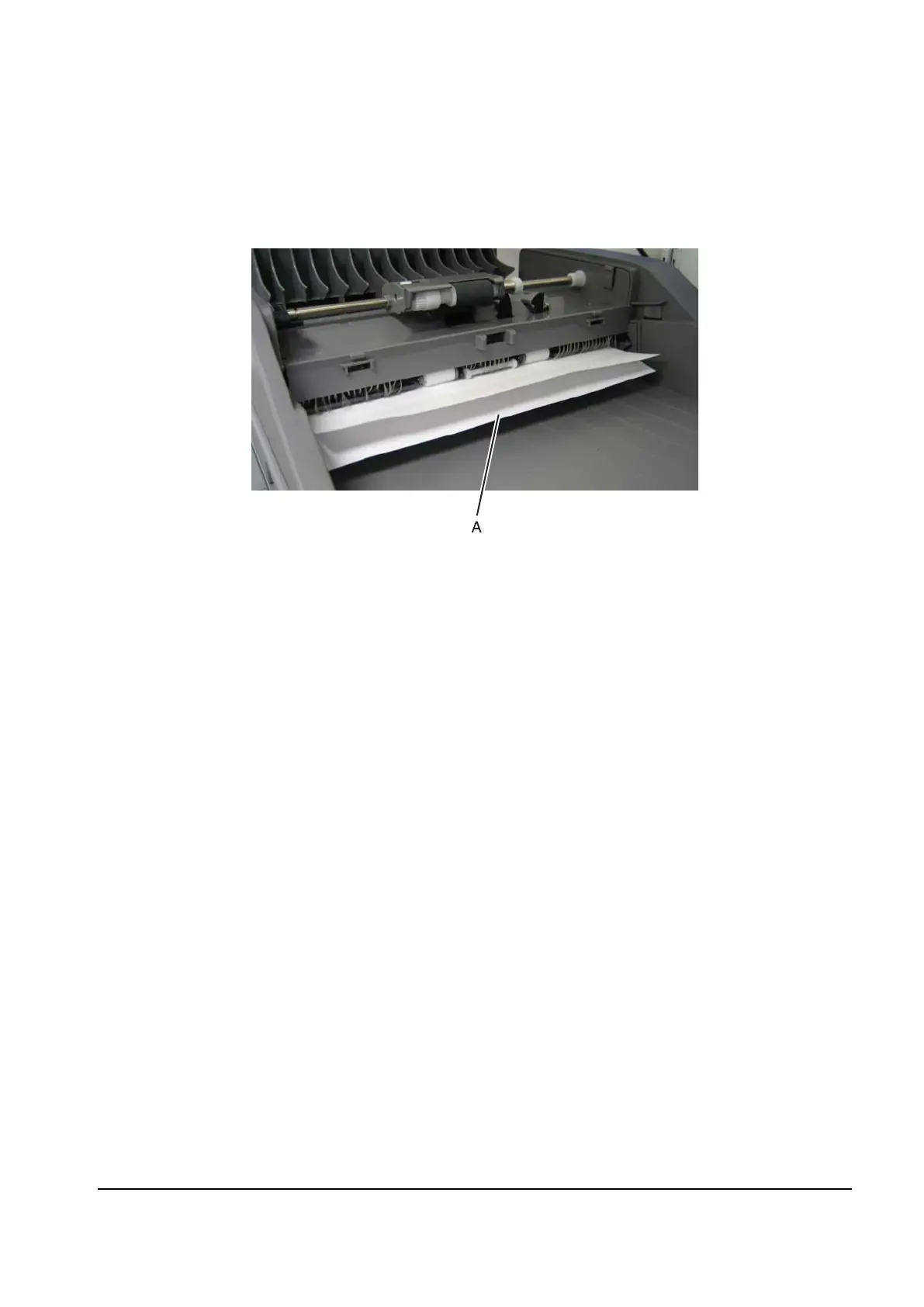

3. Remove the original from the ADF by pulling the lower of the two sheets (A) from the ADF exit.

4. Replace the ADF input tray.

Y112730-2
