4-68 Service Manual

Waste toner bottle contact block removal

1. Open the front cover.

2. Remove the right cover assembly. See “Right cover removal” on page 4-7.

3. Remove the waste toner bottle. See “Waste toner bottle” on page 4-67.

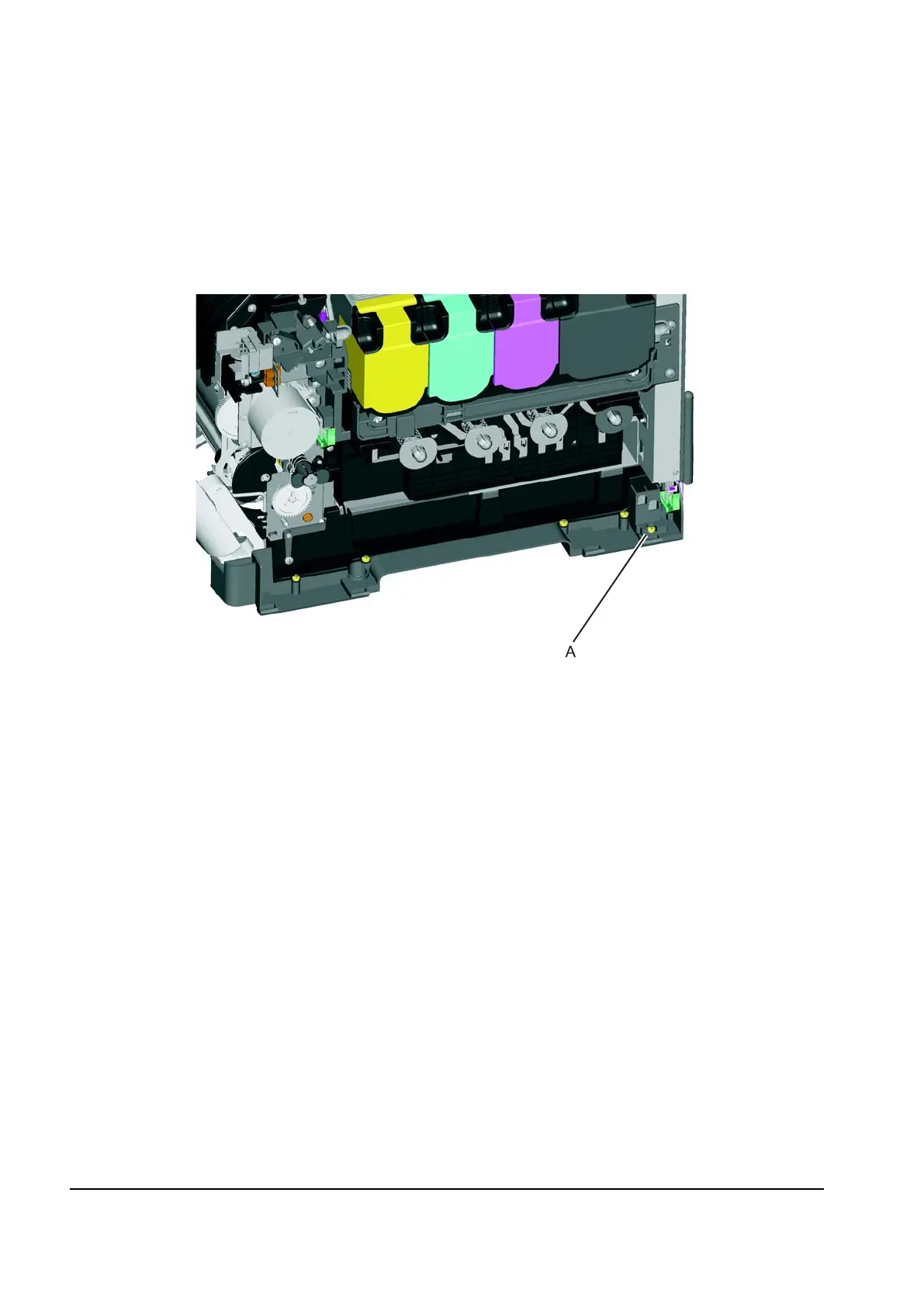

4. Remove the screw (A) from the back of the waste toner bottle contact block

5. Remove the rear shield. See “Rear shield removal” on page 4-7.

6. Disconnect the waste toner bottle contact block cable from connector JWT1 on the controller board.

7. Remove the waste toner bottle contact block.
