Repair information 4-9

Top cover assembly removal

1. Remove the flatbed assembly. Go to “Flatbed removal” on page 4-72.

2. Remove the AIO toner cover. Go to “AIO toner cover” on page 4-97.

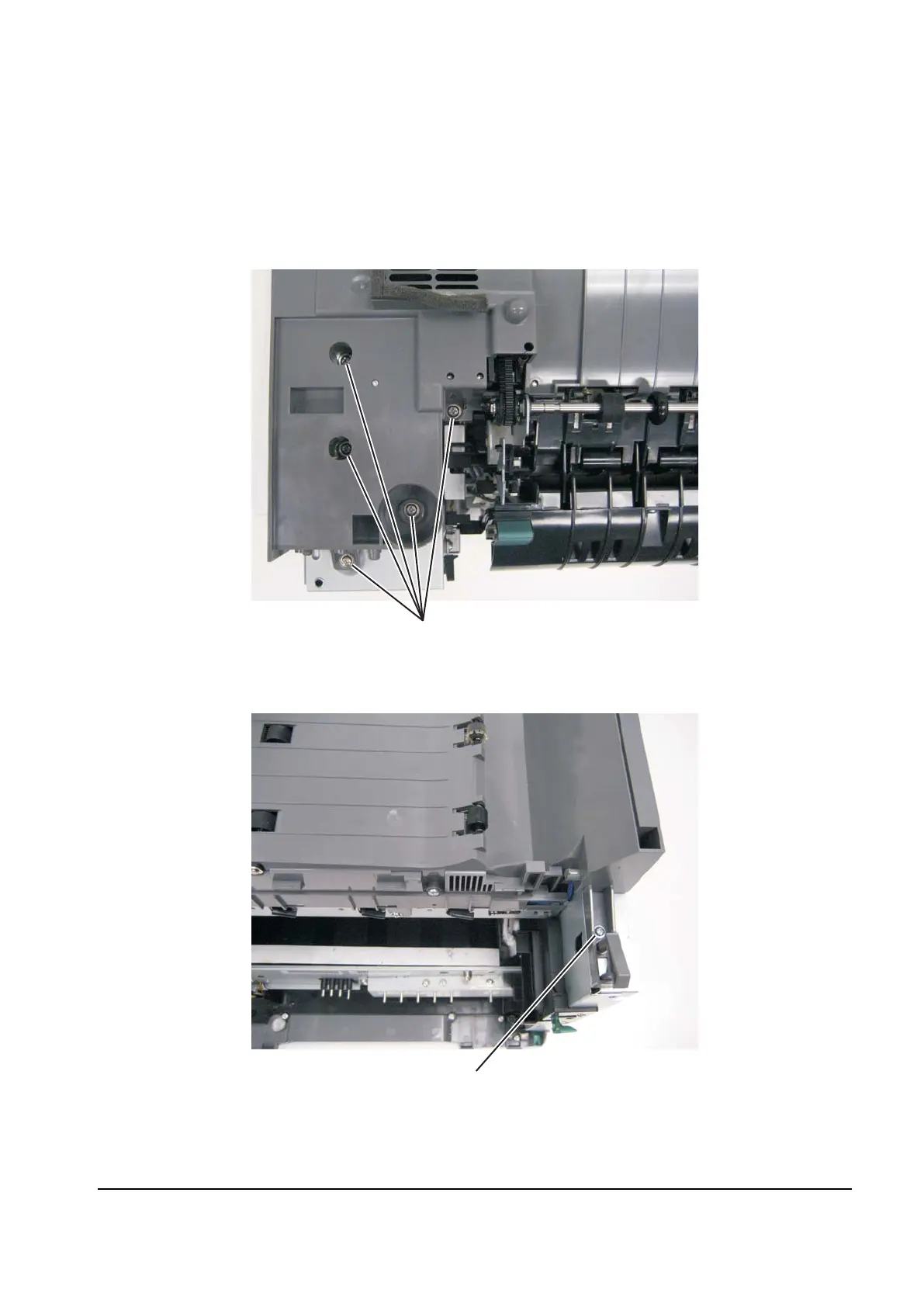

3. Remove the five screws (A) from the left front side.

4. Remove one screw (B) from the top right side of the cover.

Y112730-2
