4-40 Service Manual

Imaging unit (IU) removal

The Imaging unit is customer-replaceable unit and is not a FRU.

1. Open the front cover.

2. Lift the toner cover by sliding the latch to the left.

3. Remove the waste toner bottle. See “Waste toner bottle” on page 4-67.

4. Remove the cartridge bottles.

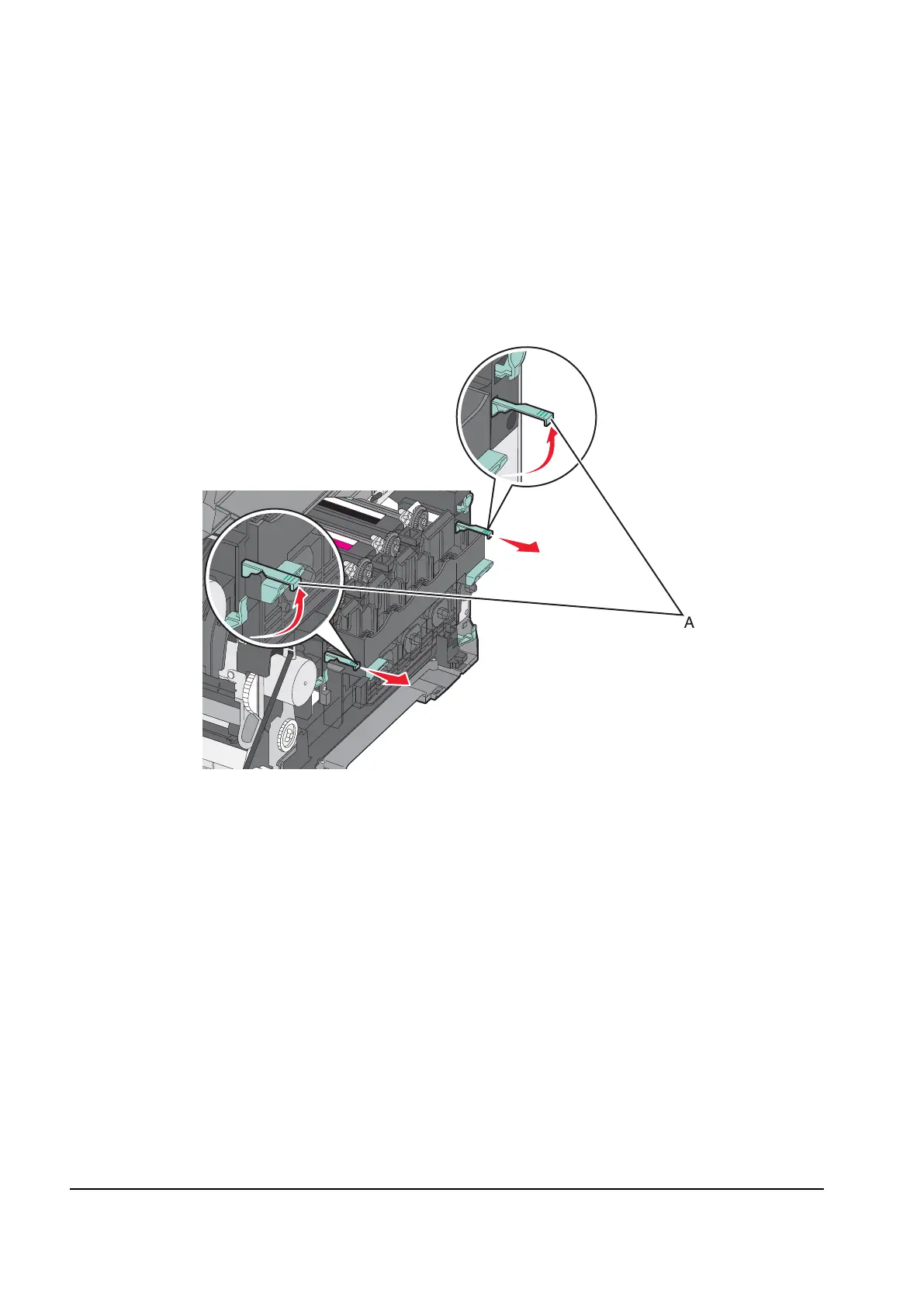

5. Lift the two latches (A) to unlock the imaging uni.

6. Pull back on the latches until the imaging unit meets resistance.

Y112730-2
