Repair information 4-93

Cover scanner right

1. Remove the imaging unit in the print engine.

2. Raise the scanner assembly to the up position, and lock in place.

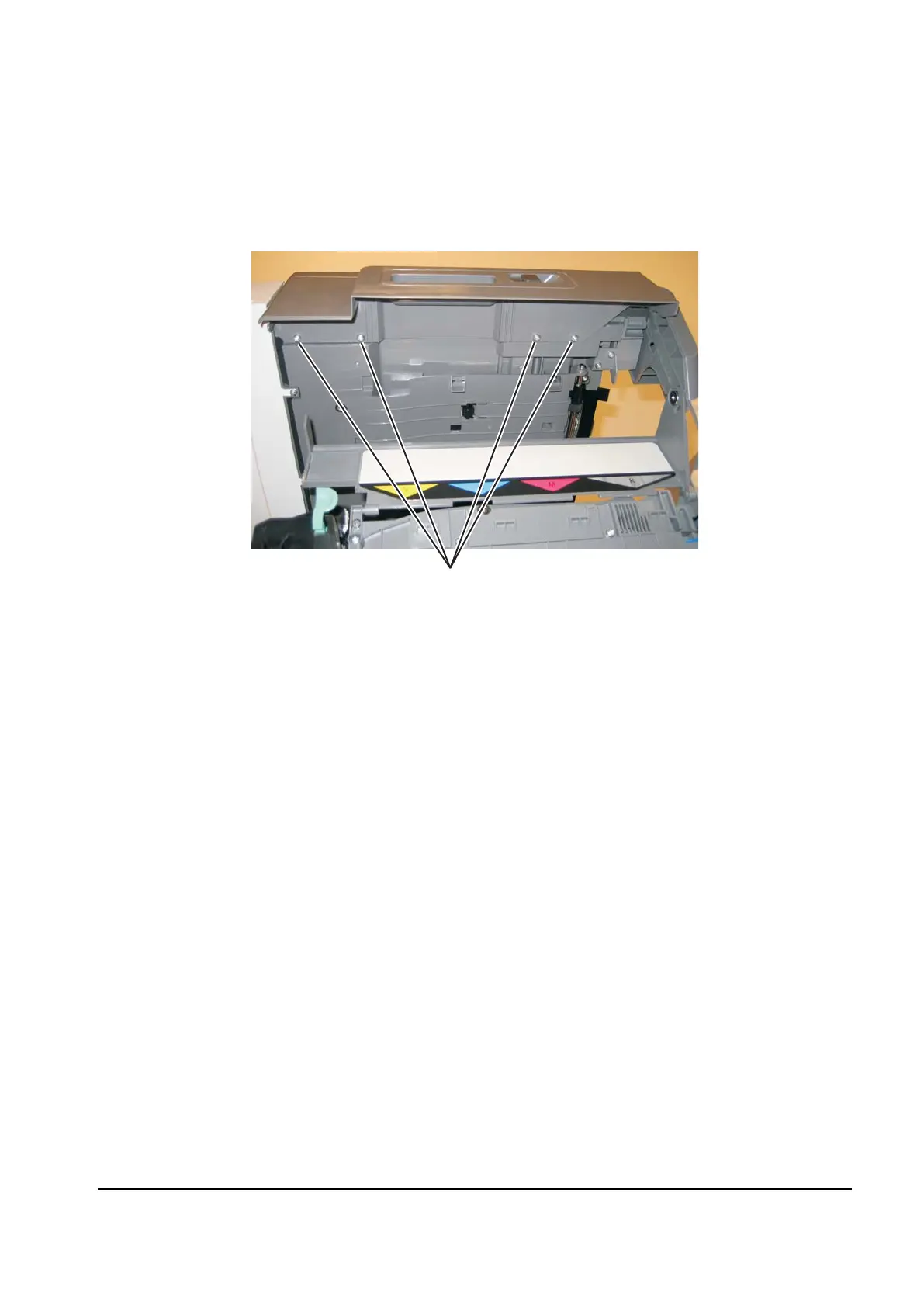

3. Remove the four screws (A) securing the right scanner cover to the flatbed unit.

Y112730-2
