Olivetti d-Color MF920 Service Manual

Repair information 4-83

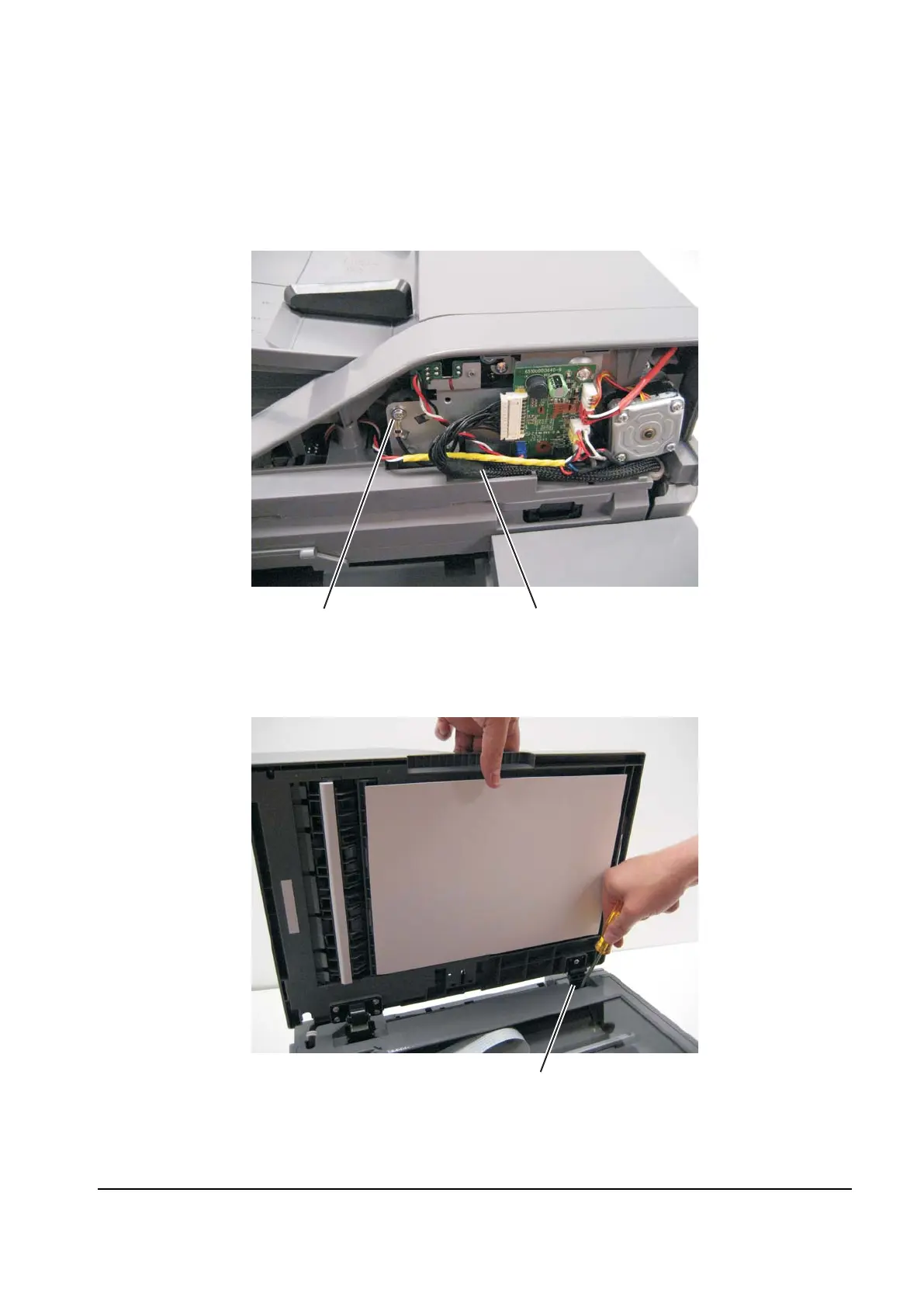

Duplex ADF removal
1. Remove the duplex ADF rear cover from the ADF assembly. See “Duplex ADF rear cover” on
page 4-82. Save the cover for use on the new ADF unit.
2. Disconnect the ground cable (A) from the ADF assembly.
3. Disconnect the ADF cable (B) from the ADF card located on the ADF assembly.
4. Carefully pull the ADF cable and grommet away from the ADF assembly.
5. Lift the ADF to an upright position.
6. Use a screwdriver to release the right hinge (C) from the flatbed unit.
7. Remove the ADF assembly.
Note: After installing the new ADF unit, you will need to perform the duplex ADF registration procedure.
See “Scanner Manual Registration” on page 3-35.
A B
C
Y112730-2
