5-20 Service Manual

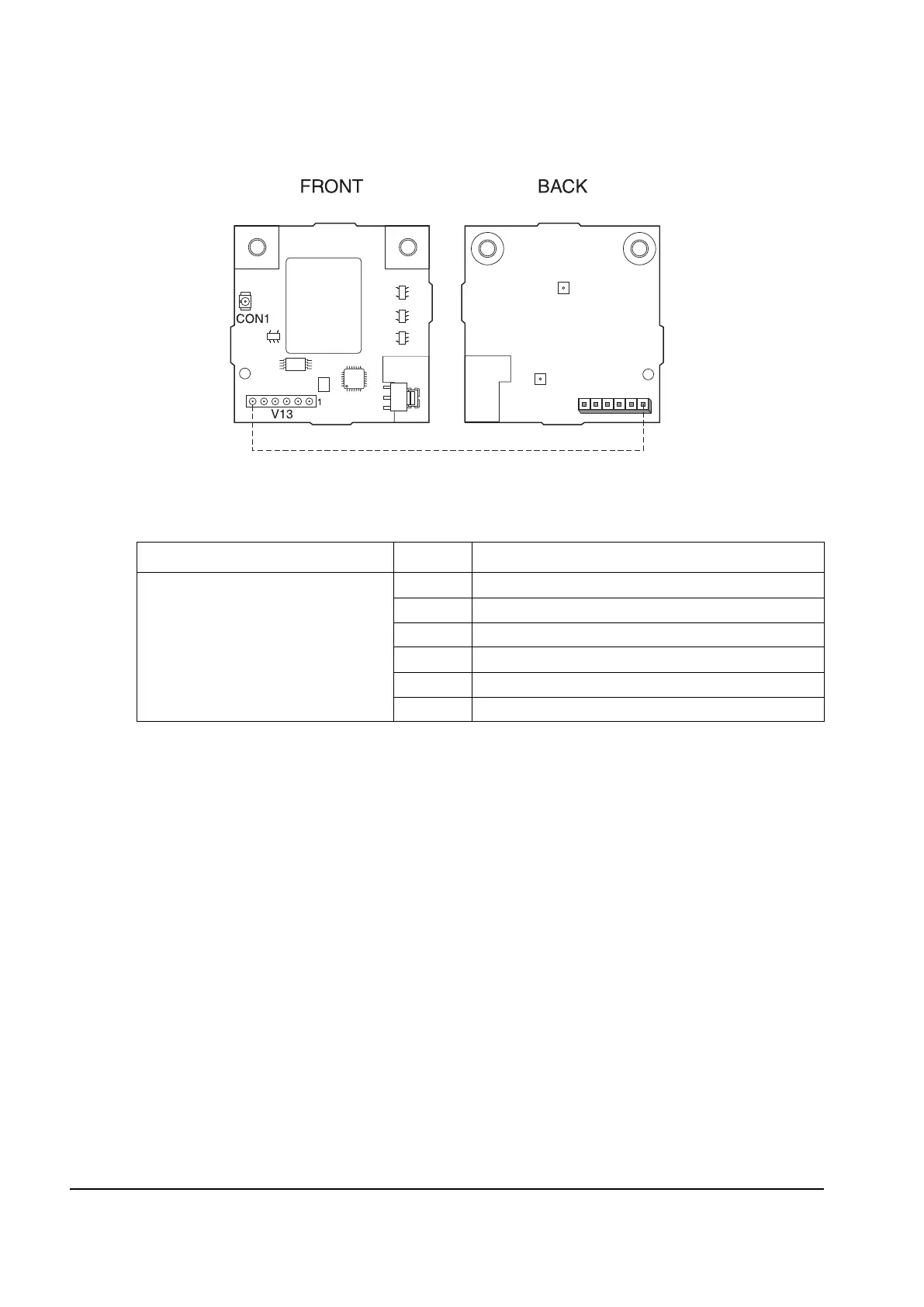

Wireless card

Connectors

Wireless card

Connector Pin no. Signal

From JUSBW1 on controller 1 Ground

2 USB_HST_VP

3 USB_HST_VM

4 Ground

5+5V

6 Wireless_POR

Y112730-2
