Repair information 4-71

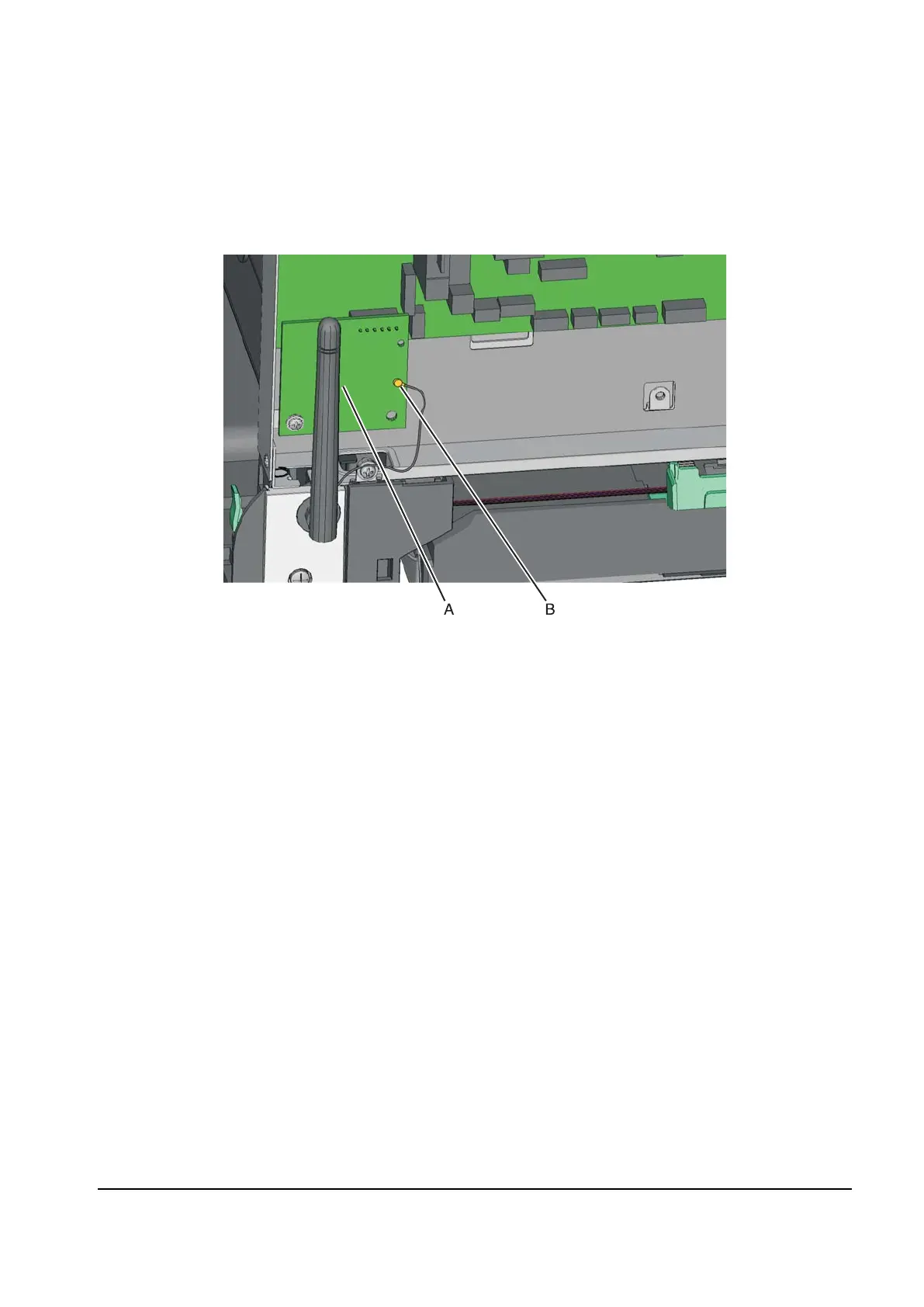

Wireless network card

1. Remove the rear shield. See “Rear shield removal” on page 4-7.

2. Lift to remove the wireless card (A) from the controller board.

3. Carefully disconnect the antenna cable (B) from the wireless card at the card.

Y112730-2
