Olivetti d-Color MF920 Service Manual

Repair information 4-85
ADF cable removal
1. Remove the simplex, or duplex ADF rear cover. See
2. Remove the left cover.See “Left cover removal” on page 4-4
3. Remove the AIO back cable cover.See “AIO back cable cover removal” on page 4-8
4. Remove the rear shield. See “Rear shield removal” on page 4-7

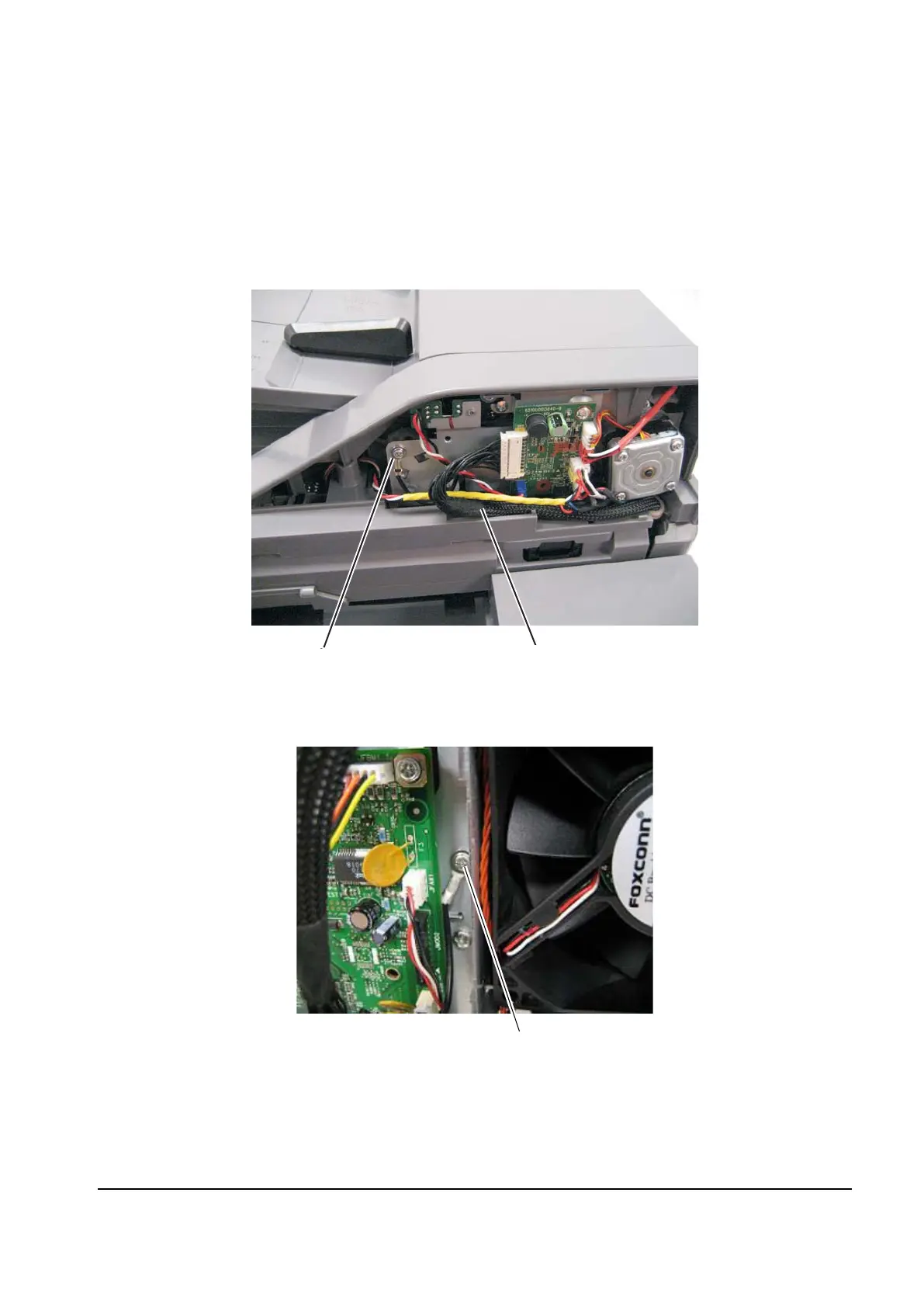

5. Disconnect the ADF cable (A) from the relay card in the ADF unit.
6. Disconnect the ground (B) from the ADF.
7. Disconnect the ADF cable from connector JADF1 on the controller board.
8. Disconnect the ground (C) from the print engine.
A B
B
A
C
Y112730-2
