Repair information 4-37

Continuing the removal (with or without the spring clamp kit)

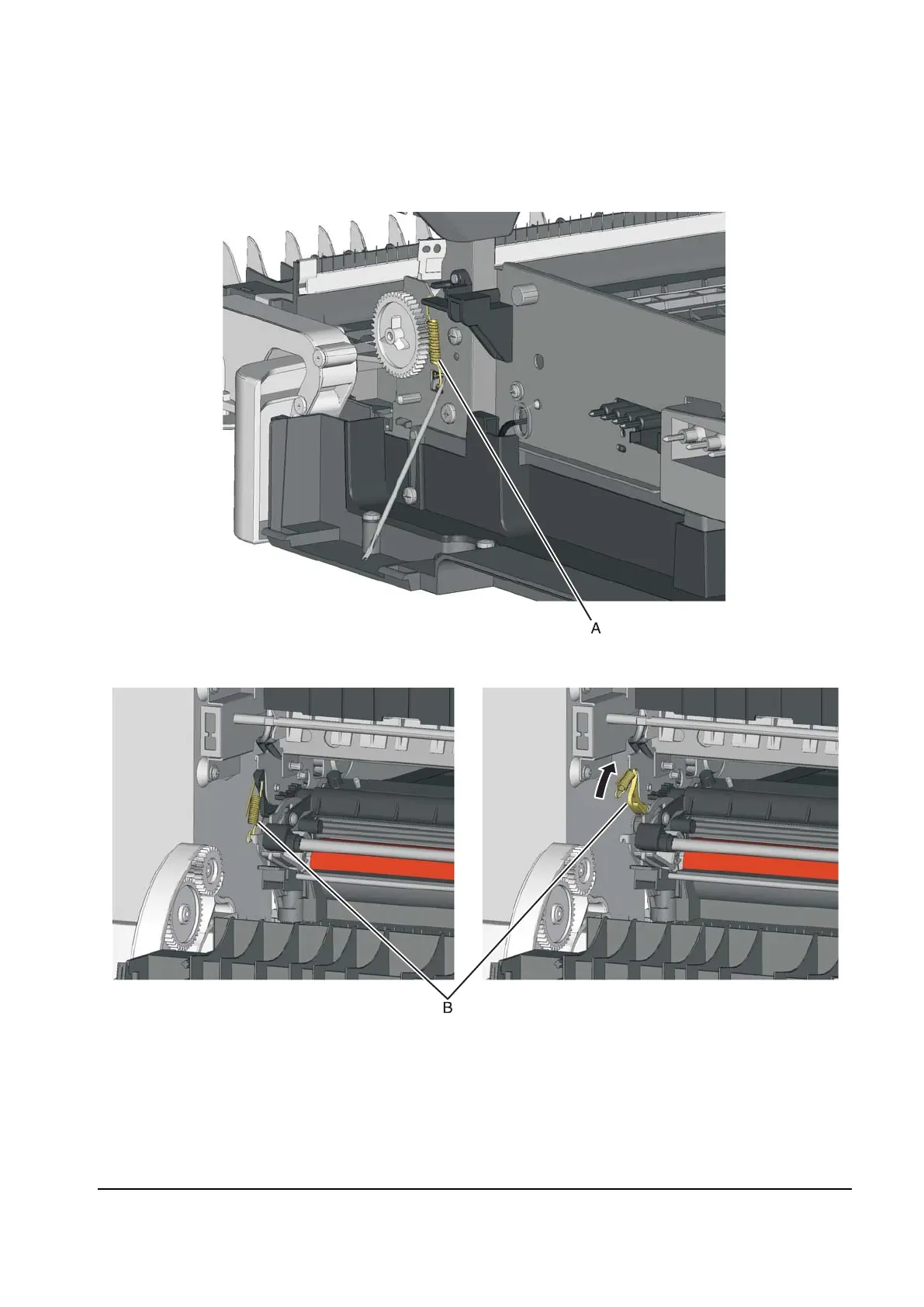

Disconnect the one spring (A) from the side frames, leaving them attached to the ITU or spring clamp.

2. Rotate the left spring (B) and pivot the cam away from the ITU so the spring is held out of the ITU path.

Y112730-2
