Repair information 4-49

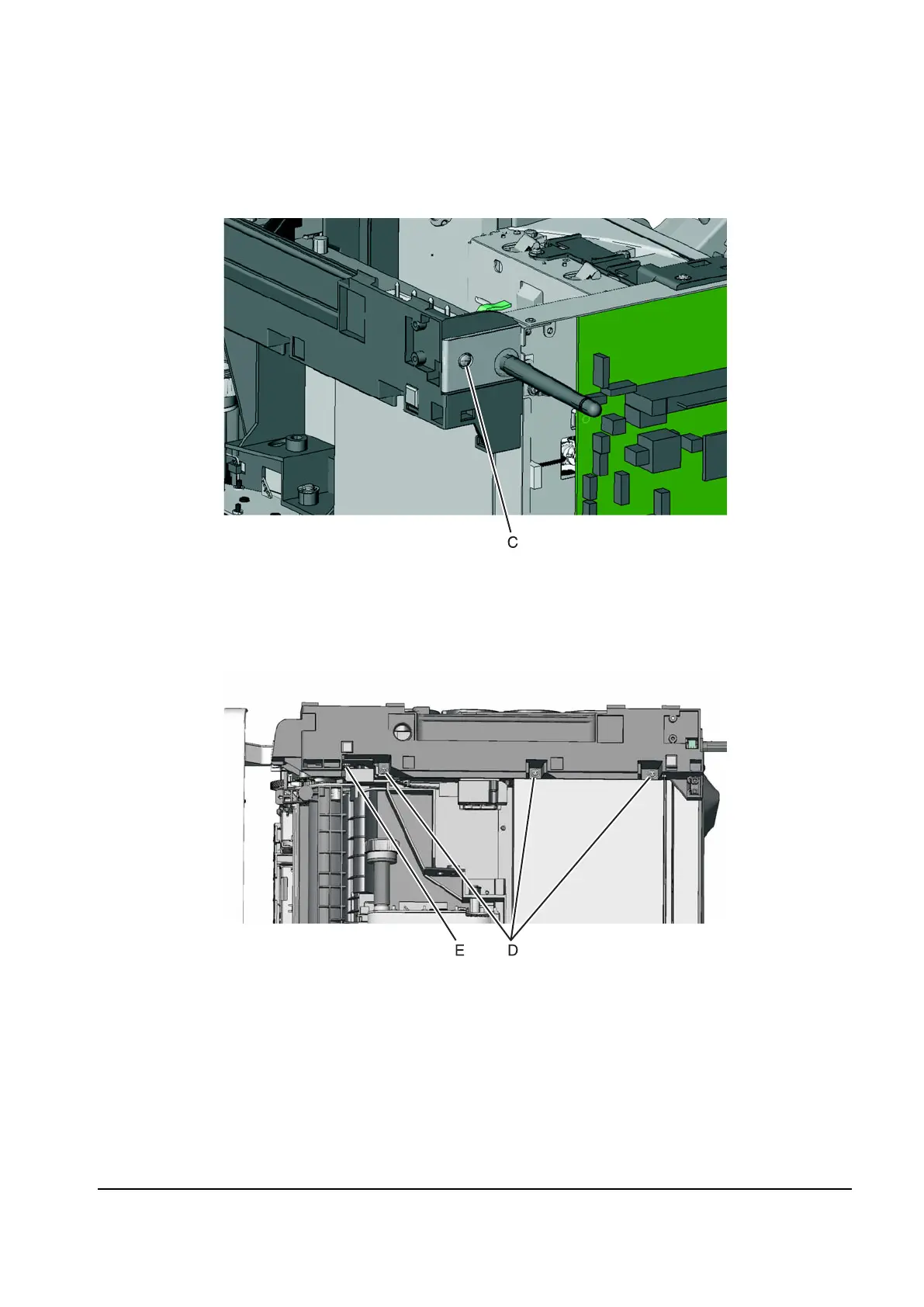

9. Remove the screw (C) securing the wireless antenna (Wireless models only) to access the right frame. Do

not remove the antenna.

10. Remove the duplex sensor. See “Duplex sensor removal” on page 4-23.

11. Remove the three screws (D) securing the lower right frame to the printer.

12. Remove the screw (E) close to the front of the printer.
