4-58 Service Manual

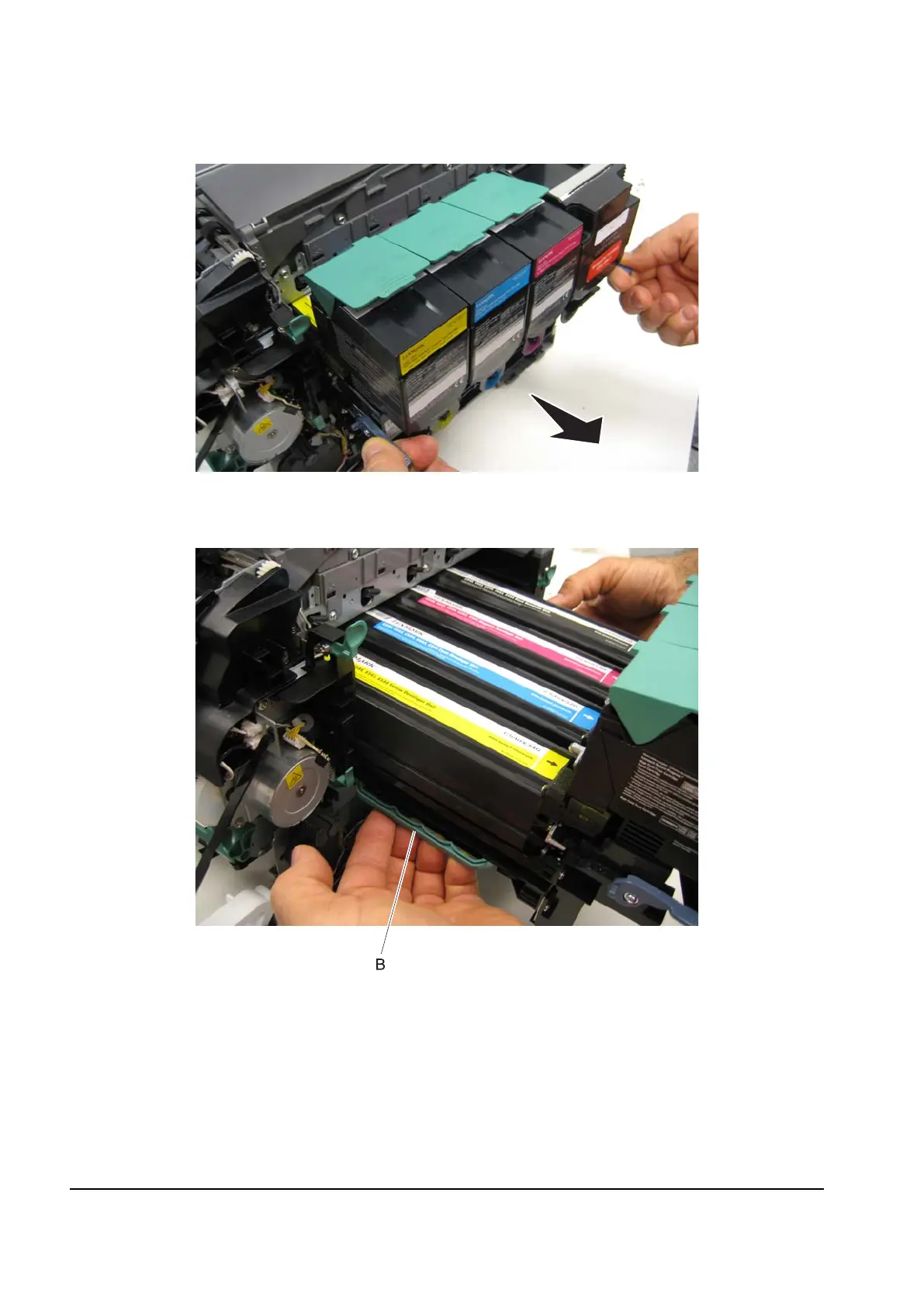

7. Pull the two latches until the imaging unit meets resistance.

8. Press and hold the handles (B), and pull the imaging unit straight out.

Note: Do not wrap your fingers around the imaging unit. Avoid touching the bottom.

Note: Store the imaging unit in a dark place or cover it with a blanket.

Y112730-2
