Network Instructions Section 3-25
Operand Specifications
Description SEND(090) transfers the data beginning at word S to addresses beginning at
D in the designated device through the PLC’s CPU Bus or over a network.
The number of words to be transmitted is specified in C.
If the destination node number is set to FF, the data will be broadcast to all of
the nodes in the designated network. This is known as a broadcast transmis-
sion.
If a response is requested (bits 12 to 15 of C+3 set to 0) but a response has
not been received within the response monitoring time, the data will be
retransmitted up to 15 times (retries set in bits 0 to 3 of C+3). There will be no
response or retries for broadcast transmissions.
SEND(090) can be used to transmit data to a particular serial port in the des-
tination device as well as the device itself.

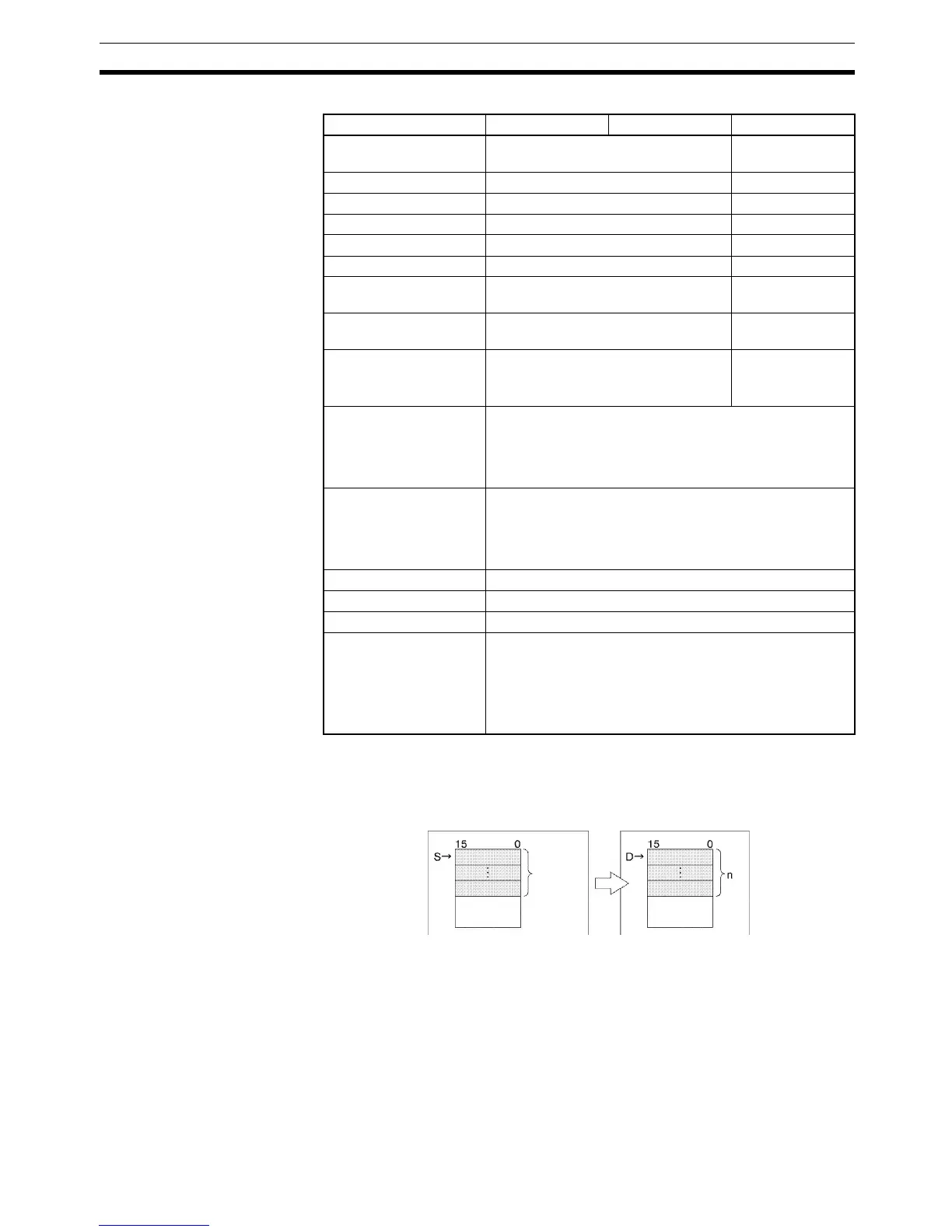

Area S D C
CIO Area CIO 0000 to CIO 6143 CIO 0000 to
CIO 6139
Work Area W000 to W511 W000 to W507
Holding Bit Area H000 to H511 H000 to H507
Auxiliary Bit Area A000 toA959 A000 to A955
Timer Area T0000 to T4095 T0000 to T4091
Counter Area C0000 to C4095 C0000 to C4091
DM Area D00000 to D32767 D00000 to
D32763
EM Area without bank E00000 to E32767 E00000 to
E32763
EM Area with bank En_00000 to En_32767
(n = 0 to C)
En_00000 to
En_32763
(n = 0 to C)
Indirect DM/EM
addresses in binary
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 o C)
Indirect DM/EM
addresses in BCD
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
Constants ---
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Local node Destination node
Number
of words
to trans-
mit, n
