Omron SYSMAC CJ - REFERENCE MANUAL 08-2008

84
Instruction Functions Section 2-2

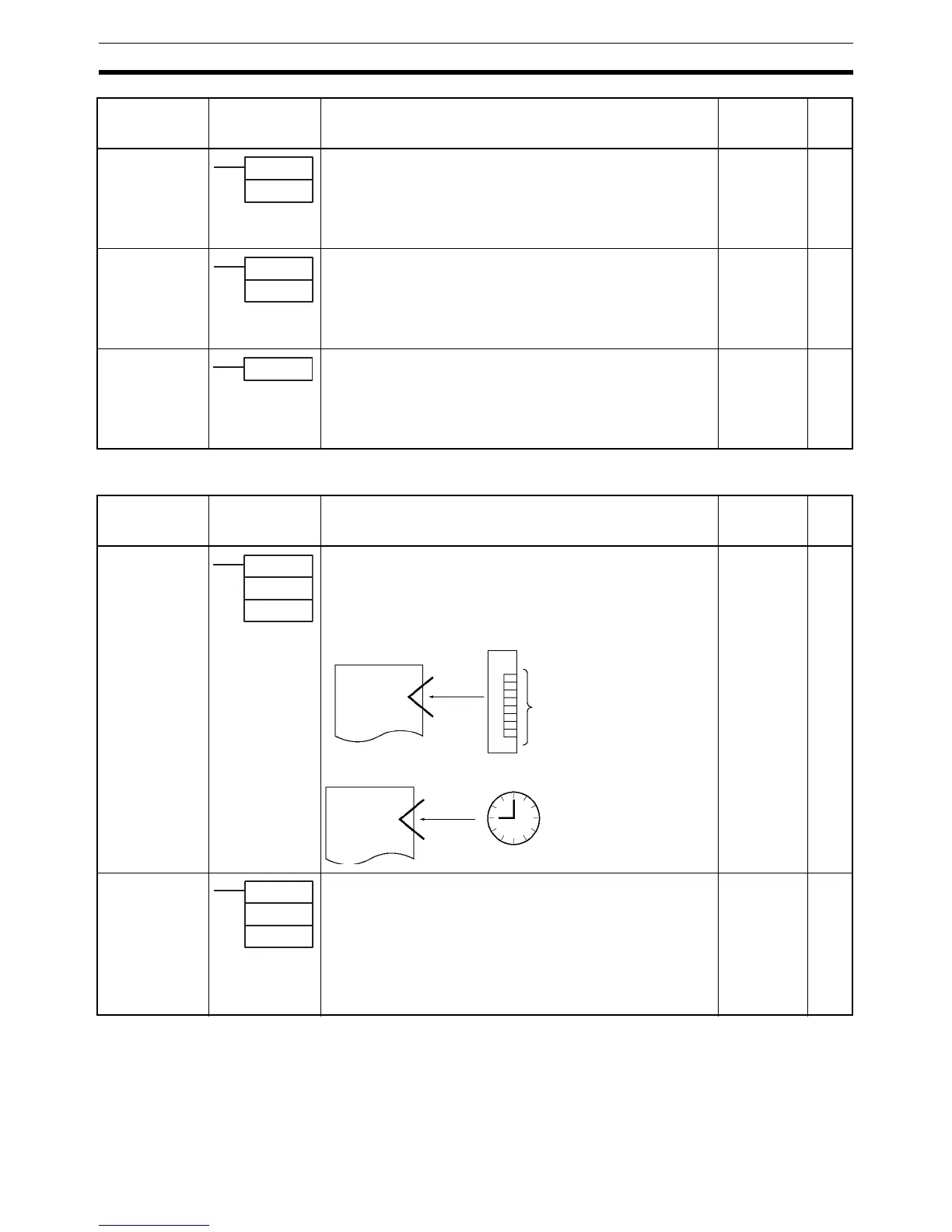

2-2-18 Interrupt Control Instructions
GLOBAL SUB-
ROUTINE CALL
(CS1-H, CJ1-H,
CJ1M, or CS1D
only)
GSBS
750
Calls the subroutine with the specified subroutine number and exe-
cutes that program.
Output
Not required
824
GLOBAL SUB-
ROUTINE ENTRY
(CS1-H, CJ1-H,
CJ1M, or CS1D
only)
GSBN
751
Indicates the beginning of the subroutine program with the specified
subroutine number.
Output
Not required
832
GLOBAL SUB-
ROUTINE
RETURN (CS1-H,
CJ1-H, CJ1M, or
CS1D only)
GRET
752
Indicates the end of a subroutine program. Output
Not required
835
Instruction
Mnemonic
Code
Symbol/Operand Function Location
Execution
condition
Page
SET INTERRUPT
MASK
(Not supported
by CS1D CPU
Units for Duplex-
CPU Systems.)
MSKS
@MSKS
690
Output
Required
839
READ
INTERRUPT
MASK
(Not supported
by CS1D CPU
Units for Duplex-
CPU Systems.)
MSKR
@MSKR
692
Reads the current interrupt processing settings that were set with
MSKS(690).
Output
Required
846
Instruction
Mnemonic
Code
Symbol/Operand Function Location
Execution
condition
Page
GSBS(750)
N
N: Subroutine
number
GSBN(751)
N
N: Subroutine
number
GRET(752)
MSKS(690)
N
C
N: Interrupt
identifier
C: Control data
Sets up interrupt processing for I/O interrupts or scheduled
interrupts. Both I/O interrupt tasks and scheduled interrupt tasks
are masked (disabled) when the PC is first turned on.
MSKS(690) can be used to unmask or mask I/O interrupts and
set the time intervals for scheduled interrupts.
Interrupt Input Unit 0 to 3
I/O
interrupt
Mask (1) or unmask (0)
interrupt inputs 0 to 7.
Time interval
Scheduled
interrupt
Set scheduled
interrupt time interval.
MSKR(692)
N
D
N: Interrupt
identifier
D: Destination
word
