Basic I/O Unit Instructions Section 3-23
When cyclic refreshing of a Special I/O Unit is disabled, execute IORF(097) or
FIORF(225) (CJ1-H-R CPU Units only) to refresh the Unit’s data within 11
seconds after program execution starts. If IORF(097) or FIORF(225) is not
executed within 11 seconds to refresh the Unit’s data, a CPU Unit Monitor
Error will occur in the Special I/O Unit and the ERH and RUN Indicators will be
lit.

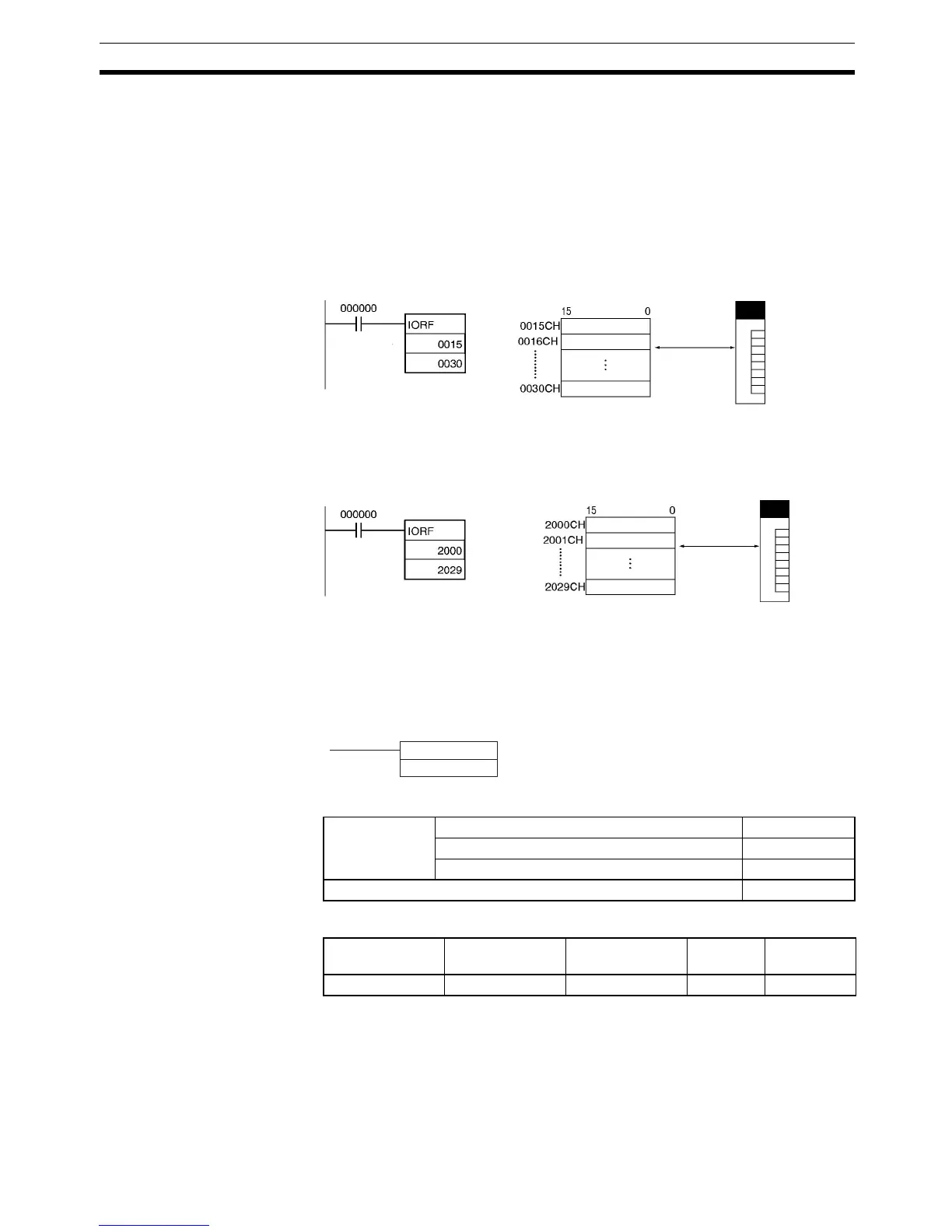

Examples Refreshing Words in the I/O Bit Area
The following example shows how to refresh 16 words from CIO 0015 to
CIO 0030 when CIO 000000 turns ON.
Refreshing Words in the Special I/O Unit Bit Area
The following example shows how to refresh 30 words from CIO 2000 to
CIO 2029 when CIO 000000 turns ON.
3-23-2 SPECIAL I/O UNIT I/O REFRESH: FIORF(225)
Purpose Performs I/O refreshing immediately for the specified Special I/O Unit’s allo-
cated CIO Area and DM Area words.t with the specified unit number.
This instruction is supported by the CJ1-H-R CPU Units only.
Ladder Symbol
Variations
Applicable Program Areas
Operands N: Unit number
Specifies the Special I/O Unit’s unit number (0000 to 005F hex or 0 to 95 dec-
imal).
Note If the Special I/O Unit uses more than one unit number, specify the lowest unit
number.
St:
E:
St
E
I/O refreshing
I/O Unit
St:
E:
St
E
Special I/O Unit
I/O refreshing
FIORF(225)
N
N: Unit number
Variations Executed Each Cycle for ON Condition FIORF(225)
Executed Once for Upward Differentiation @FIORF(225)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Function block
definitions
Block program
areas
Step program
areas
Subroutin
es
Interrupt
tasks
OK OK OK OK OK
