Data Control Instructions Section 3-18

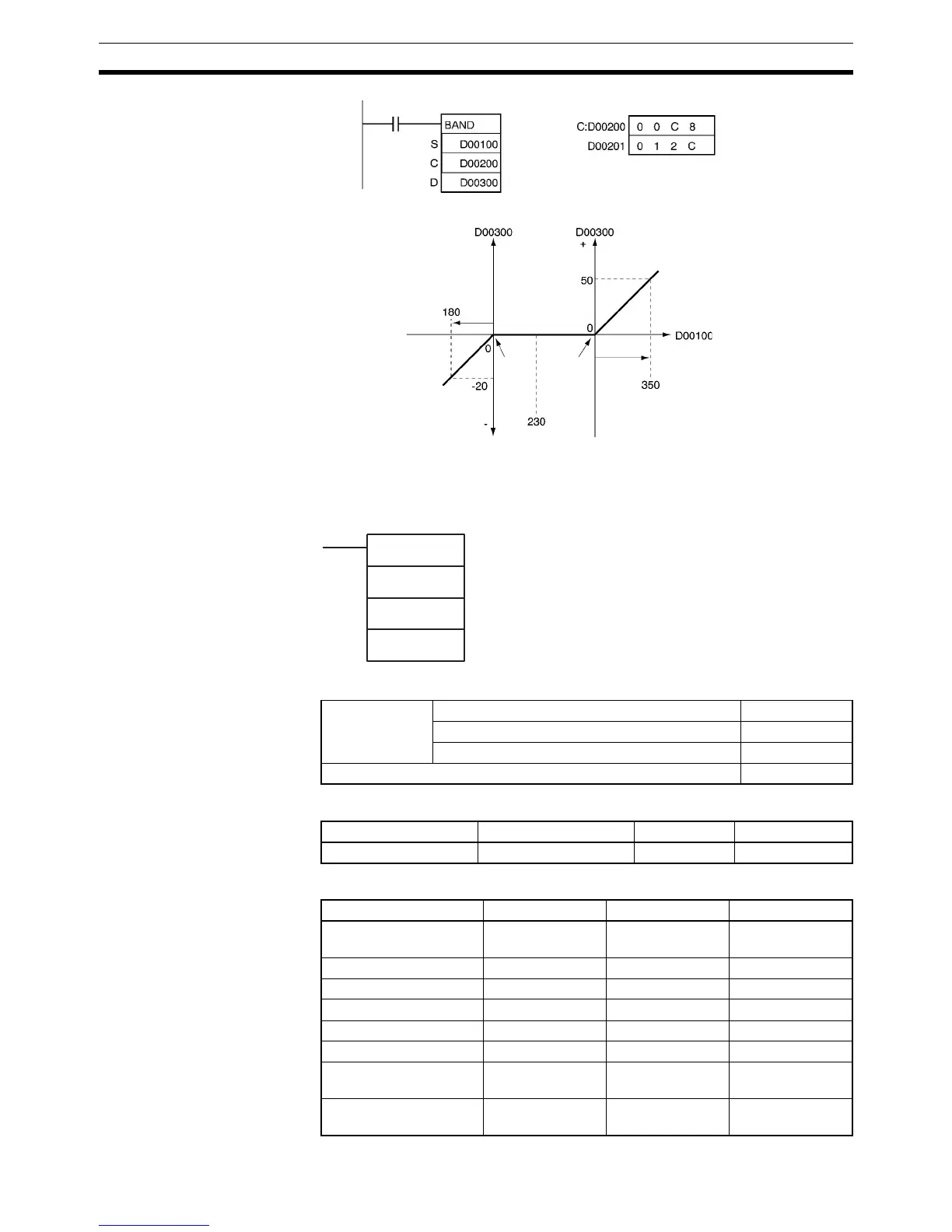

3-18-5 DEAD ZONE CONTROL: ZONE(682)
Purpose Adds the specified bias to input data and outputs the result.
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
Upper limit
Lower limit: 200
Upper limit: 300
Upper
limit:
300
Lower
limit:
200
Lower limit
ZONE(682)
S
C
D
S: Input word
C: First limit word
D: Output word
Variations Executed Each Cycle for ON Condition ZONE(682)
Executed Once for Upward Differentiation @ZONE(682)
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification Not supported.
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area S C D
CIO Area CIO 0000 to CIO
6143
CIO 0000 to CIO
6142
CIO 0000 to CIO
6143
Work Area W000 to W511 W000 to W510 W000 to W511
Holding Bit Area H000 to H511 H000 to H510 H000 to H511
Auxiliary Bit Area A000 to A959 A000 to A958 A448 to A959
Timer Area T0000 to T4095 T0000 to T4094 T0000 to T4095
Counter Area C0000 to C4095 C0000 to C4094 C0000 to C4095
DM Area D00000 to
D32767
D00000 to
D32766
D00000 to
D32767
EM Area without bank E00000 to
E32767
E00000 to
E32766
E00000 to
E32767
