864
High-speed Counter/Pulse Output Instructions Section 3-21
long time are being used; it can also cause errors in timers (TIM and TIMH)
and data tracing. Be particularly careful when the scheduled time interval
units are set to 0.5 ms or 1 ms in the PLC Setup.

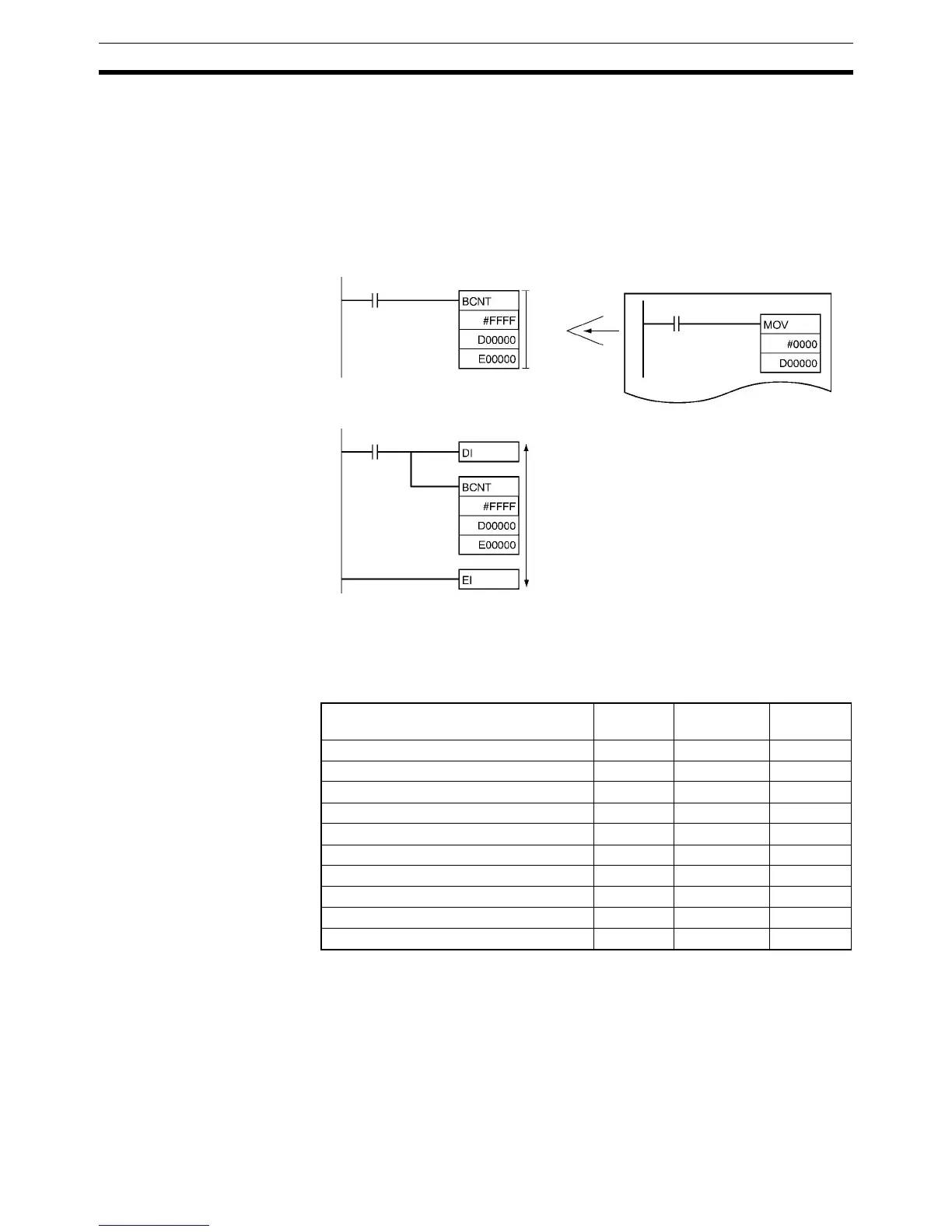

Interrupts are accepted even while one instruction is being executed. There-
fore, if an interrupt is accepted while an instruction requiring a long processing
time is being executed, correct processing results may not be obtained
because both the interrupt task and the instruction may access the same
data. In such a case, use DI(693) and EI(694) to disable and enable the inter-
rupt.
3-21 High-speed Counter/Pulse Output Instructions
This section describes instructions used to control the high-speed counters
and pulse outputs.
3-21-1 MODE CONTROL: INI(880) (CJ1M-CPU21/22/23 Only)
Purpose INI(880) can be used to execute the following operations for built-in I/O of
CJ1M CPU Units:
• To start comparison with the high-speed counter comparison table
• To stop comparison with the high-speed counter comparison table
• To change the PV of the high-speed counter.
• To change the PV of interrupt inputs in counter mode.
Interrupts
disabled
Interrupt
during
execution
Interrupt task
Instruction Mnemonic Function
code
Page
MODE CONTROL INI 880 864
HIGH-SPEED COUNTER PV READ PRV 881 868
COUNTER FREQUENCY CONVERT PRV2 881 874
REGISTER COMPARISON TABLE CTBL 882 878
SPEED OUTPUT SPED 885 882
SET PULSES PULS 886 887
PULSE OUTPUT PLS2 887 890
ACCELERATION CONTROL ACC 888 896
ORIGIN SEARCH ORG 889 903
PULSE WITH VARIABLE DUTY FACTOR PWM 891 906
