329
Comparison Instructions Section 3-7

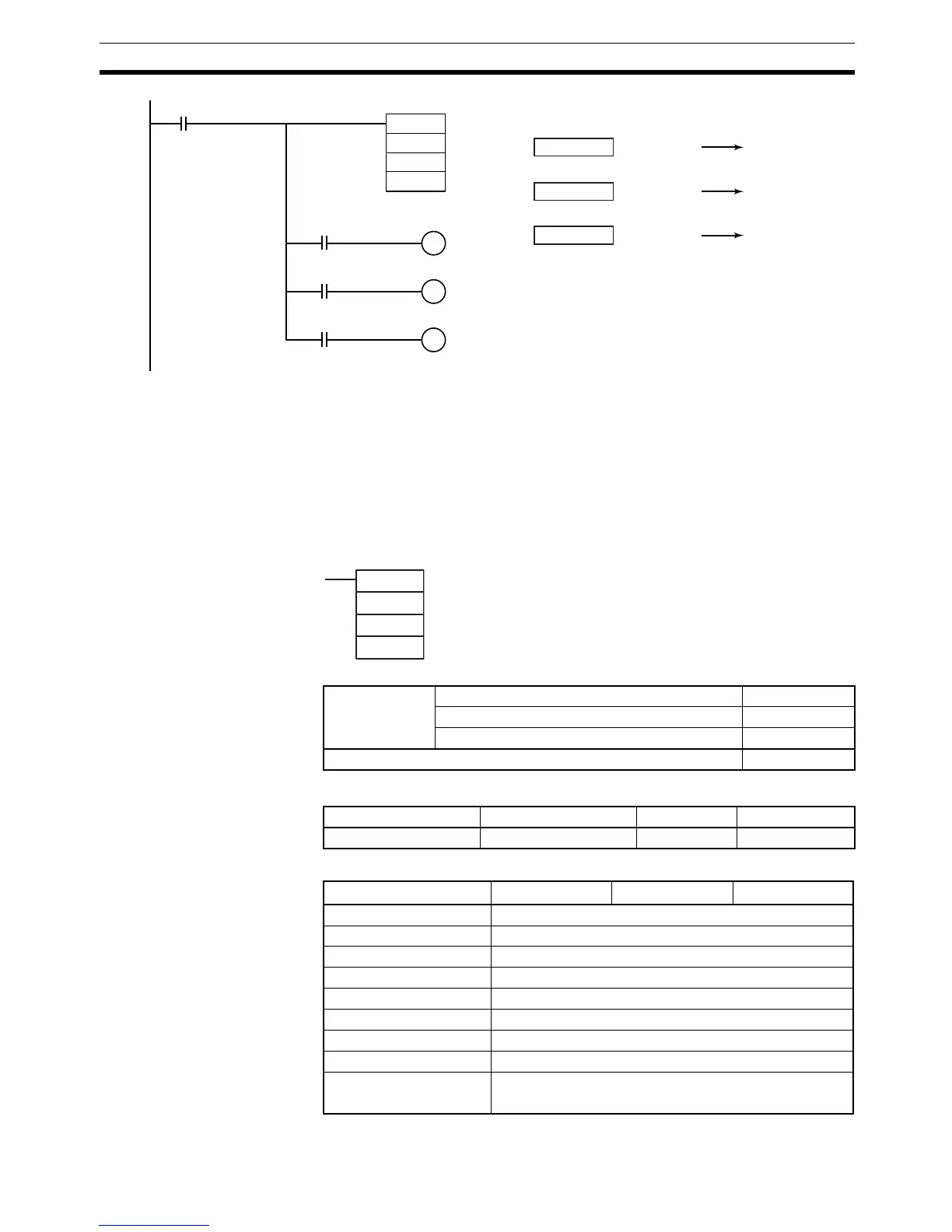

3-7-12 DOUBLE AREA RANGE COMPARE: ZCPL(116)
Purpose Compares a 32-bit unsigned binary value (CD+1, CD) with the range defined
by lower limit (LL+1, LL) and upper limit (UL+1, UL). The results are output to
the Arithmetic Flags.
This instruction is supported by CS1-H, CJ1-H, CJ1M, and CS1D CPU Units
only.
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
D00000
LL CD UL
= ON(1)
D00000
> ON(1)
D00000
< ON(1)
≤
>
≤
>
0005Hex
001FHex
001FHex
0005Hex
002000
000000
>
002001
=
002002
<
ZCP
D00000
#0005
#001F
CD
LL
UL
Arithmetic
Flags
ZCPL(116)
CD
LL
UL
CD: First word of Comparison Data
LL: First word of Lower Limit
UL: First word of Upper Limit
Variations Executed Each Cycle for ON Condition ZCP(088)
Executed Once for Upward Differentiation Not supported
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area CD LL UL
CIO Area CIO 0000 to CIO 6142
Work Area W000 to W510
Holding Bit Area H000 to H510
Auxiliary Bit Area A000 to A958
Timer Area T0000 to T4094
Counter Area C0000 to C4094
DM Area D00000 to D32766
EM Area without bank E00000 to E32766
EM Area with bank En_00000 to En_32766
(n = 0 to C)
