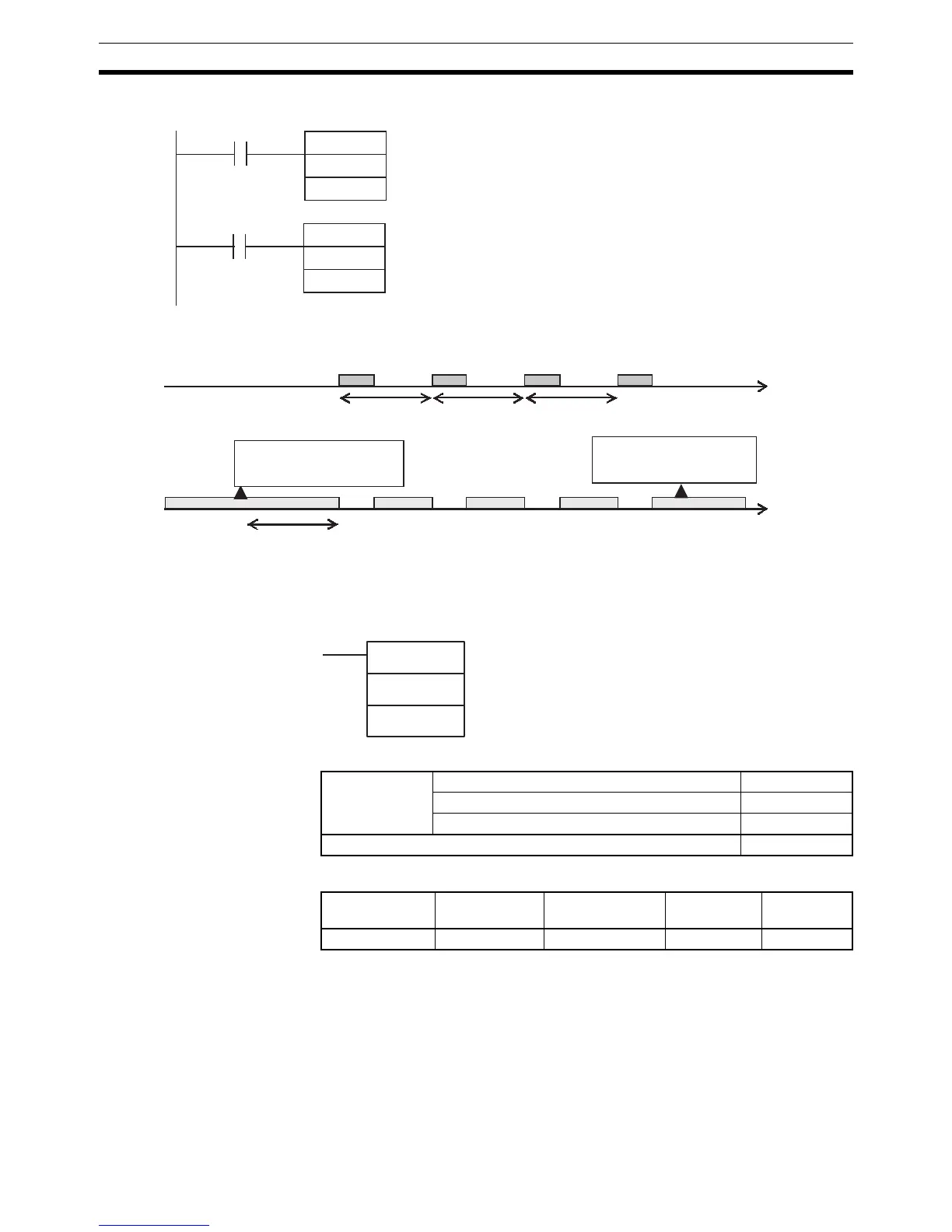

Interrupt Control Instructions Section 3-20
3-20-2 READ INTERRUPT MASK: MSKR(692)
Purpose Reads the current interrupt control settings that were set with MSKS(690).
Ladder Symbol
Variations
Applicable Program Areas
1. Execution of MSKS(690)
(Interrupt enabled, 15 ms)
Cyclic task
15 ms
Scheduled interrupt task number 2
15 ms 15 ms
15 ms
@MSKS
4
&15
W00000
4
&0
W00001
N
C
N
C
2. Execution of MSKS(690)
(Interrupt stopped)
@MSKS
MSKR(692)
N
D
N: Interrupt number
D: Destination word
Variations Executed Each Cycle for ON Condition MSKR(692)
Executed Once for Upward Differentiation @MSKR(692)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Function block
definitions
Block program
areas
Step program
areas
Subroutines Interrupt
tasks
OK OK OK OK OK
