Sequence Control Instructions Section 3-5
Precautions NOP(000) can only be used with mnemonic displays, not with ladder pro-
grams.
3-5-3 Overview of Interlock Instructions
Interlock Instructions The following instruction combinations can be used to interlock outputs in a
program section.
• INTERLOCK and INTERLOCK CLEAR (IL(002) and IL(003))
• MULTI-INTERLOCK DIFFERENTIATION HOLD and MULTI-INTERLOCK
CLEAR (MILH(517) and MILC(519))*
Note MILH(517) holds the status of the Differentiation Flag, so differentiat-
ed instructions that were interlocked are executed after the interlock
is cleared.
• MULTI-INTERLOCK DIFFERENTIATION RELEASE and MULTI-INTER-
LOCK CLEAR (MILR(518) and MILC(519))*
Note MILR(518) does not hold the status of the Differentiation Flag, so dif-
ferentiated instructions that were interlocked are not executed after
the interlock is cleared.
* These instructions are supported only by CS/CJ-series CPU Unit Ver. 2.0
or later.
Differences between
Interlocks and Multiple
Interlocks

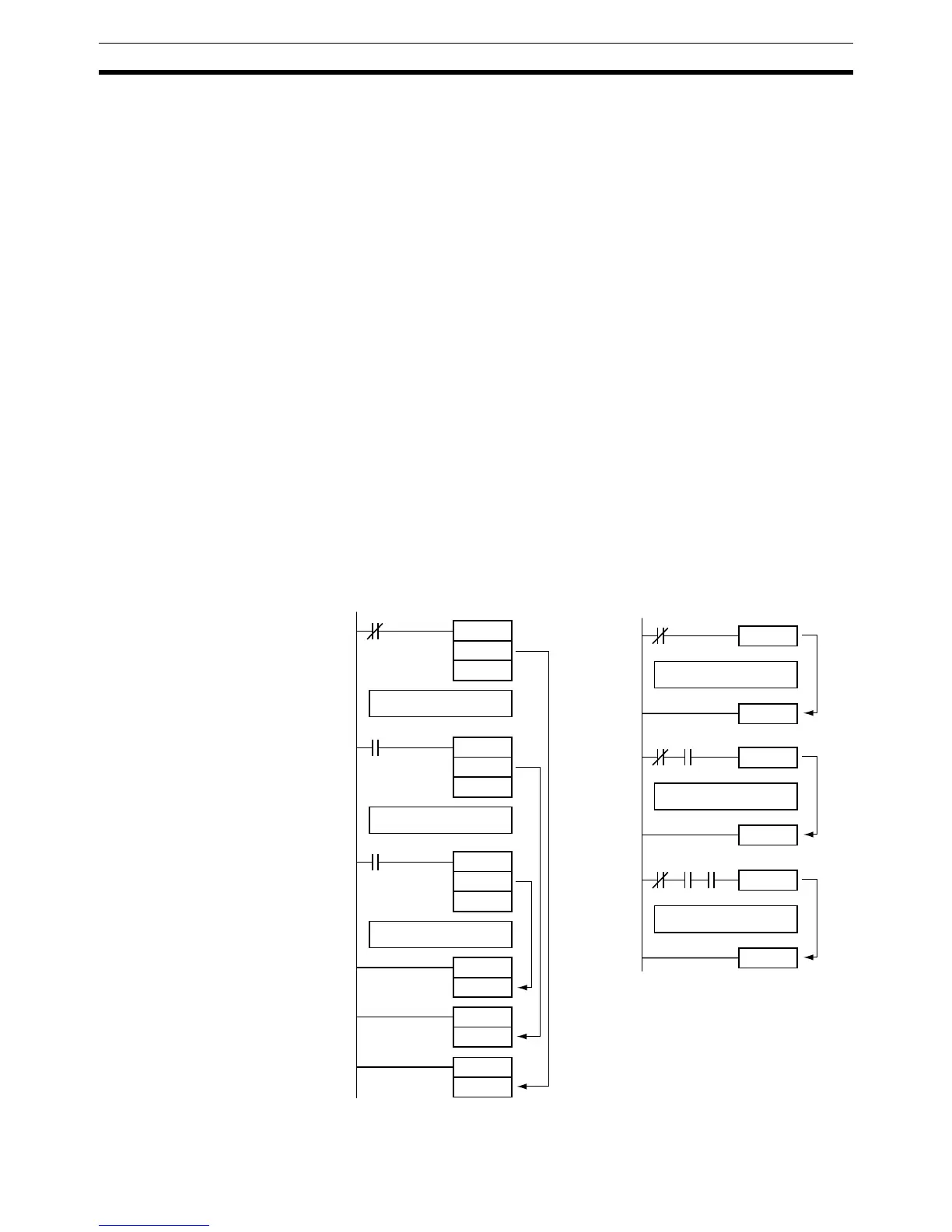

Regular interlocks (IL(002) and IL(003)) cannot be nested, but multiple inter-
locks (MILH(517), MILR(518), and MILC(519)) can be nested. Ladder pro-
gramming can be simplified by nesting multiple interlocks, as shown in the
following diagram.
a
MILH
0
A1
b
MILH
1
A2
c
MILH
2
A3
MILC
2
MILC
1
MILC
0
a
IL
A1
ILC
a
IL
A2
b
bc
ILC
a
IL
A3
ILC
Interlocks with MILH and MILC Interlocks with IL and ILC
