354
Data Movement Instructions Section 3-8

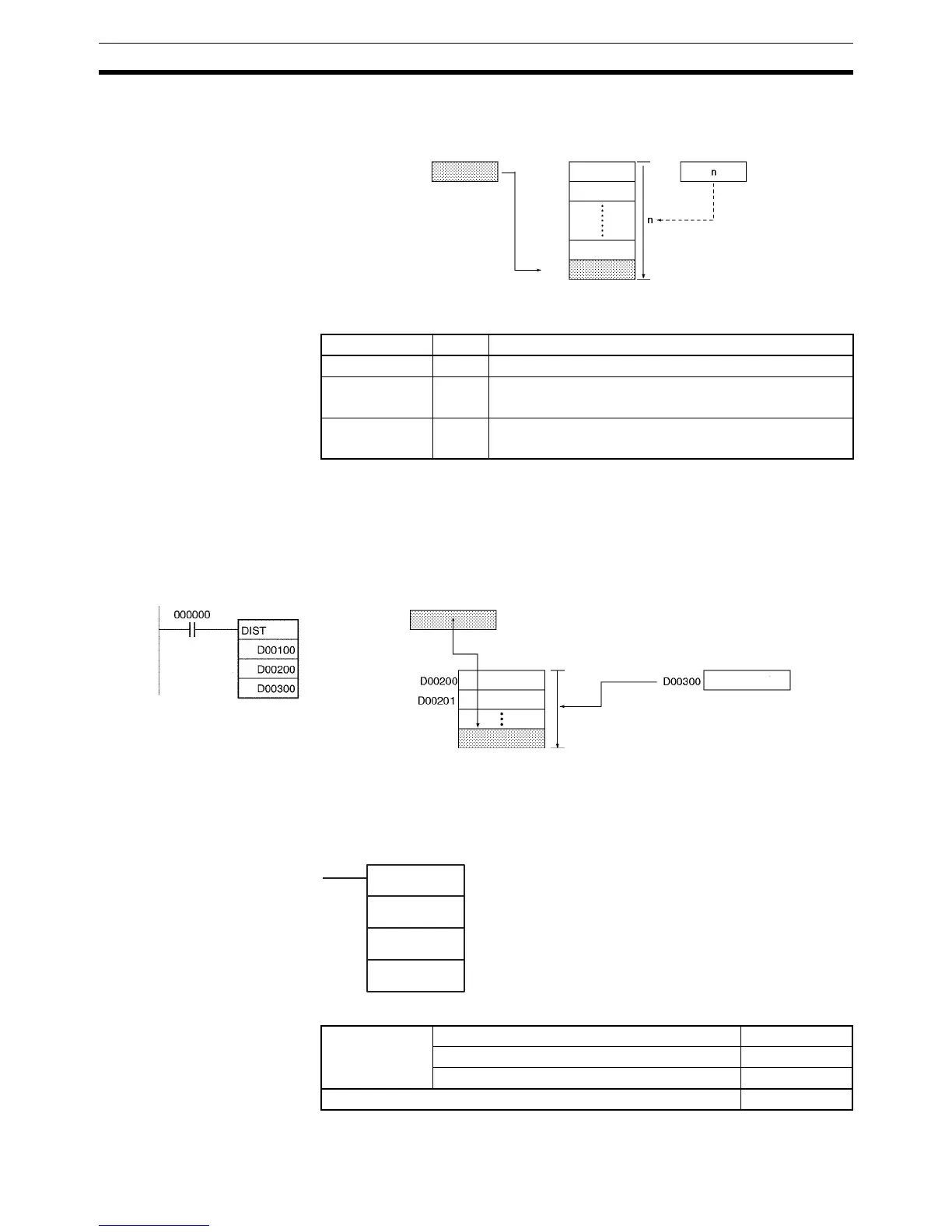

Description DIST(080) copies S to the destination word calculated by adding Of to Bs.
The same DIST(080) instruction can be used to distribute the source word to
various words in the data area by changing the value of Of.
Flags
Precautions Be sure that the offset does not exceed the end of the data area, i.e., Bs and
Bs+Of are in the same data area.
Example When CIO 000000 is ON in the following example, the contents of D00100 will
be copied to D00210 (D00200 + 10) if the contents of D00300 is 10 (0A hexa-
decimal). The contents of D00100 can be copied to other words by changing
the offset in D00300.
3-8-13 DATA COLLECT: COLL(081)
Purpose Transfers the source word (calculated by adding an offset value to the base
address) to the destination word.
Ladder Symbol
Variations
S
Bs+n
OfBs
Name Label Operation
Error Flag ER OFF
Equals Flag = ON if the source data is 0000.
OFF in all other cases.
Negative Flag N ON if the leftmost bit of the source data is 1.
OFF in all other cases.
S: D00100
D00210
S
0 0 0 A
Copied by DIST(080).
Offset +10 words
4-digit hexadecimal
Of:
Bs:
Bs
Of
COLL(081)
D
Bs: Source base address
Of: Offset
D: Destination word
Bs
Of
Variations Executed Each Cycle for ON Condition COLL(081)
Executed Once for Upward Differentiation @COLL(081)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
