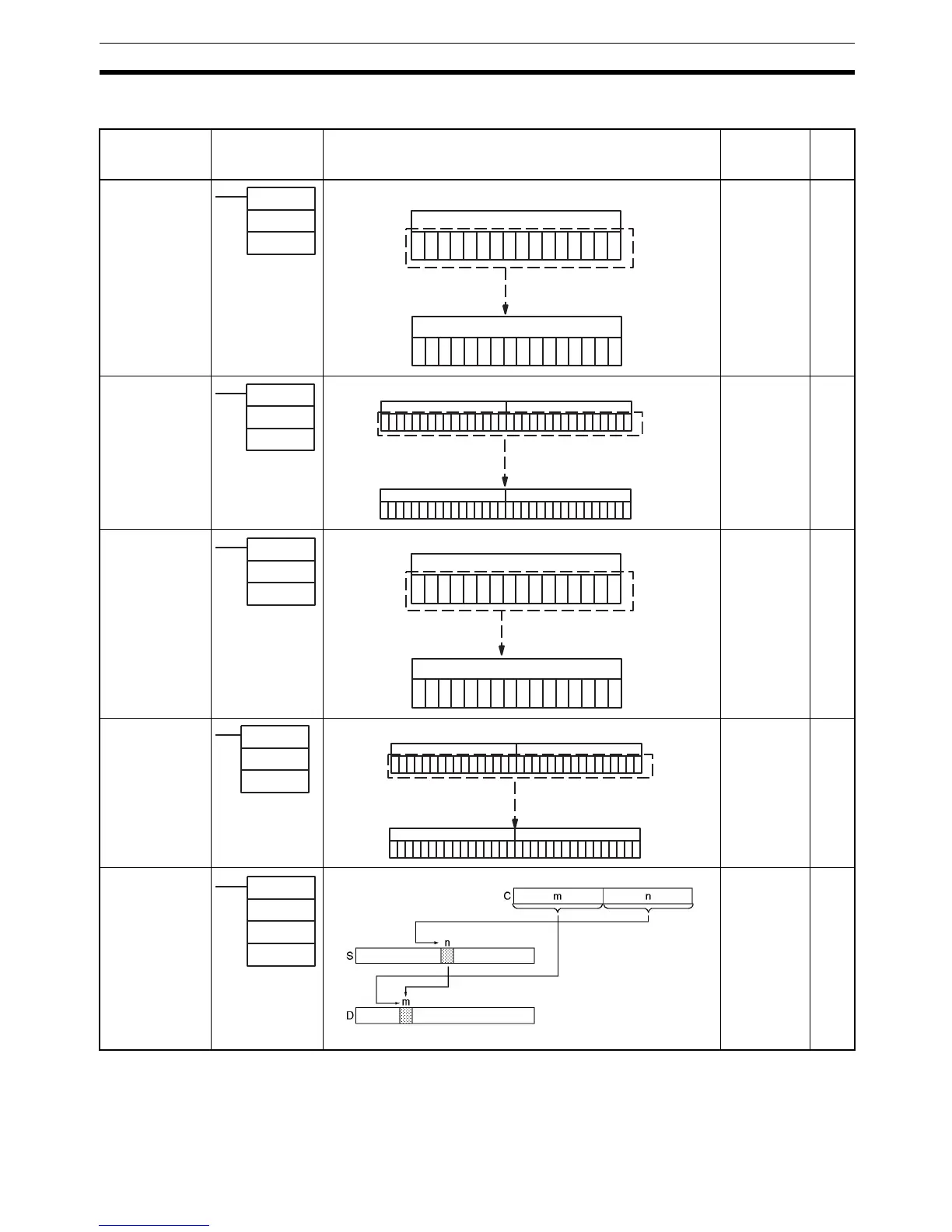

Instruction Functions Section 2-2
2-2-6 Data Movement Instructions
Instruction
Mnemonic
Code
Symbol/Operand Function Location
Execution
condition
Page
MOVE
MOV
@MOV
!MOV
!@MOV
021
Output
Required
331
DOUBLE MOVE
MOVL
@MOVL
498
Output
Required
334
MOVE NOT
MVN
@MVN
022
Output
Required
333
DOUBLE MOVE
NOT
MVNL
@MVNL
499
Output
Required
336
MOVE BIT
MOVB
@MOVB
082
Output
Required
337
MOV(021)
S
D
S: Source
D: Destination
Transfers a word of data to the specified word.
Source word
Destination word
Bit status not
changed.
MOVL(498)
S
D
S: 1st source
word
D: 1st destination
word
S
D
S+1
D+1
Bit status not
changed.
Transfers two words of data to the specified words.
MVN(022)
S
D
S: Source
D: Destination
Transfers the complement of a word of data to the specified word.
Source word
Bit status
inverted.
Destination word
MVNL(499)
S
D
S: 1st source
word
D: 1st destination
word
S
D
S+1
D+1
Transfers the complement of two words of data to the specified words.
Bit status
inverted.
S
C
D
MOVB(082)
S: Source word or
data
C: Control word
D: Destination
word
Transfers the specified bit.
