Sequence Input Instructions Section 3-3

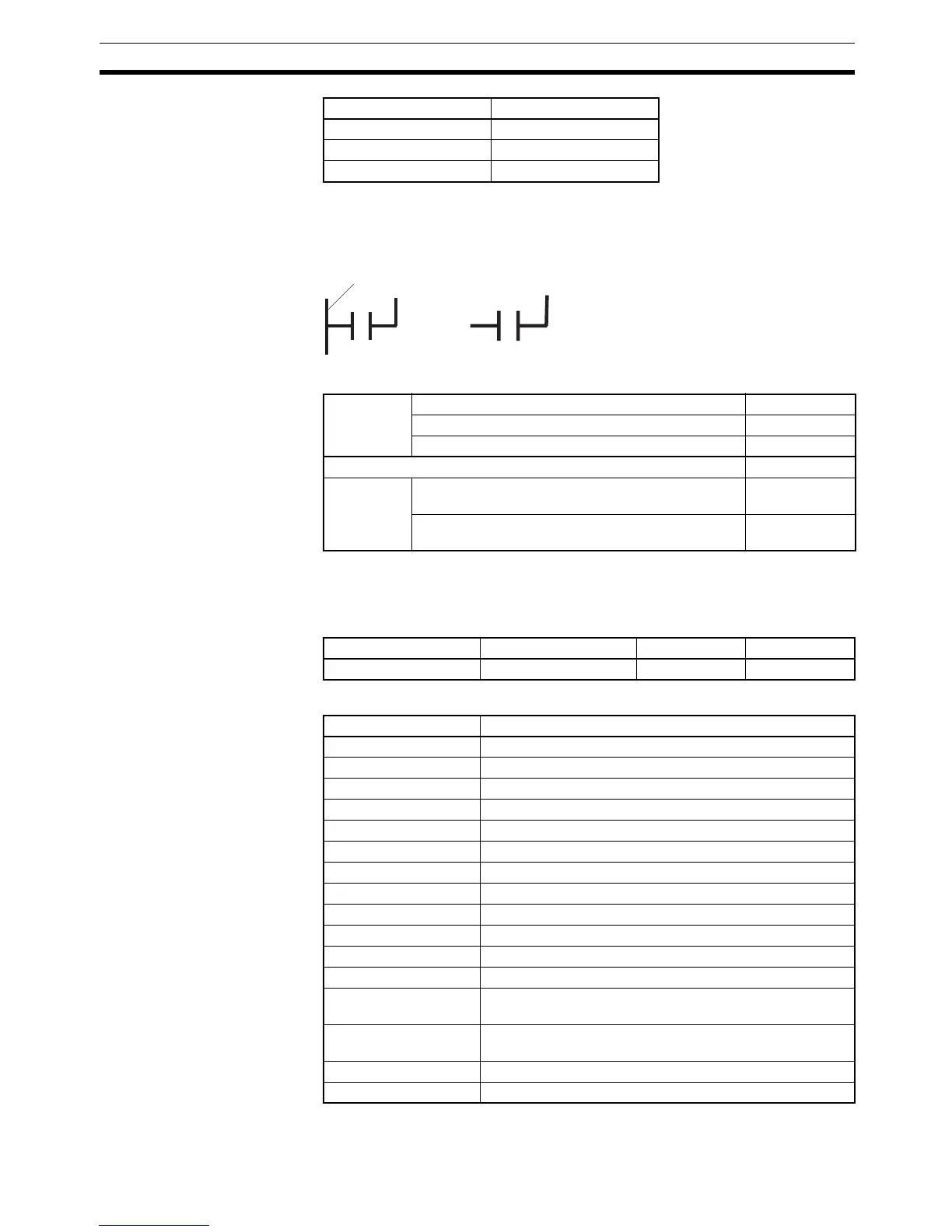

3-3-5 OR: OR
Purpose Takes a logical OR of the ON/OFF status of the specified operand bit and the
current execution condition.
Ladder Symbol
Variations
Note Immediate refreshing is not supported by CS1D CPU Units for Duplex-CPU
Systems.
Applicable Program Areas
Operand Specifications
OR LD ---
AND LD ---
OUT 000006
Instruction Operand
Bus bar
Variations Creates ON Each Cycle OR Result is ON OR
Creates ON Once for Upward Differentiation @OR
Creates ON Once for Downward Differentiation %OR
Immediate Refreshing Specification (See note.) !OR
Combined
Variations
Refreshes Input Bit and Creates ON Once for
Upward Differentiation (See note.)
!@OR
Refreshes Input Bit and Creates ON Once for
Downward Differentiation (See note.)
!%OR
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area OR bit operand
CIO Area CIO 000000 to CIO 614315
Work Area W00000 to W51115
Holding Bit Area H00000 to H51115
Auxiliary Bit Area A00000 to A95915
Timer Area T0000 to T4095
Counter Area C0000 to C4095
Task Flag Area TK0000 to TK0031
Condition Flags ER, CY, N, OF, UF, >, =, <, >=, <>, <=, ON, OFF, AER
Clock Pulses 0.02 s, 0.1 s, 0.2 s, 1 s, 1 min
DM Area ---
EM Area without bank ---
EM Area with bank ---
Indirect DM/EM
addresses in binary
---
Indirect DM/EM
addresses in BCD
---
Constants ---
Data Registers ---
