170
Sequence Input Instructions Section 3-3
Description OR is used for a normally open bit connected in parallel. A normally open bit
is configured to form a logical OR with a logic block beginning with a LOAD or
LOAD NOT instruction (connected to the bus bar or at the beginning of the
logic block). If there is no immediate refreshing specification, the specified bit
in I/O memory is read. If there is an immediate refreshing specification, the
status of the Basic Input Unit’s input terminal is read.
Flags There are no flags affected by this instruction.
Precautions Differentiate up (@) or differentiate down (%) can be specified for OR. If differ-
entiate up (@) is specified, the execution condition is turned ON for one cycle
only after the status of the operand bit goes from OFF to ON. If differentiate
down (%) is specified, the execution condition is turned ON for one cycle only
after the status of the operand bit goes from ON to OFF.
Immediate refreshing (!) can be specified for OR. An immediate refresh
instruction updates the status of the input bit just before the instruction is exe-
cuted from the Basic Input Unit (but not for Basic Input Units on Slave Racks
or for C200H Group 2 Multi-point Input Units).
For OR, it is possible to combine immediate refreshing and up or down differ-
entiation (!@ or !%). If either of these is specified, the input is refreshed from
the Basic Input Unit just before the instruction is executed and the execution
condition is turned ON for one cycle only after the status of the operand bit
goes from OFF to ON, or from ON to OFF.

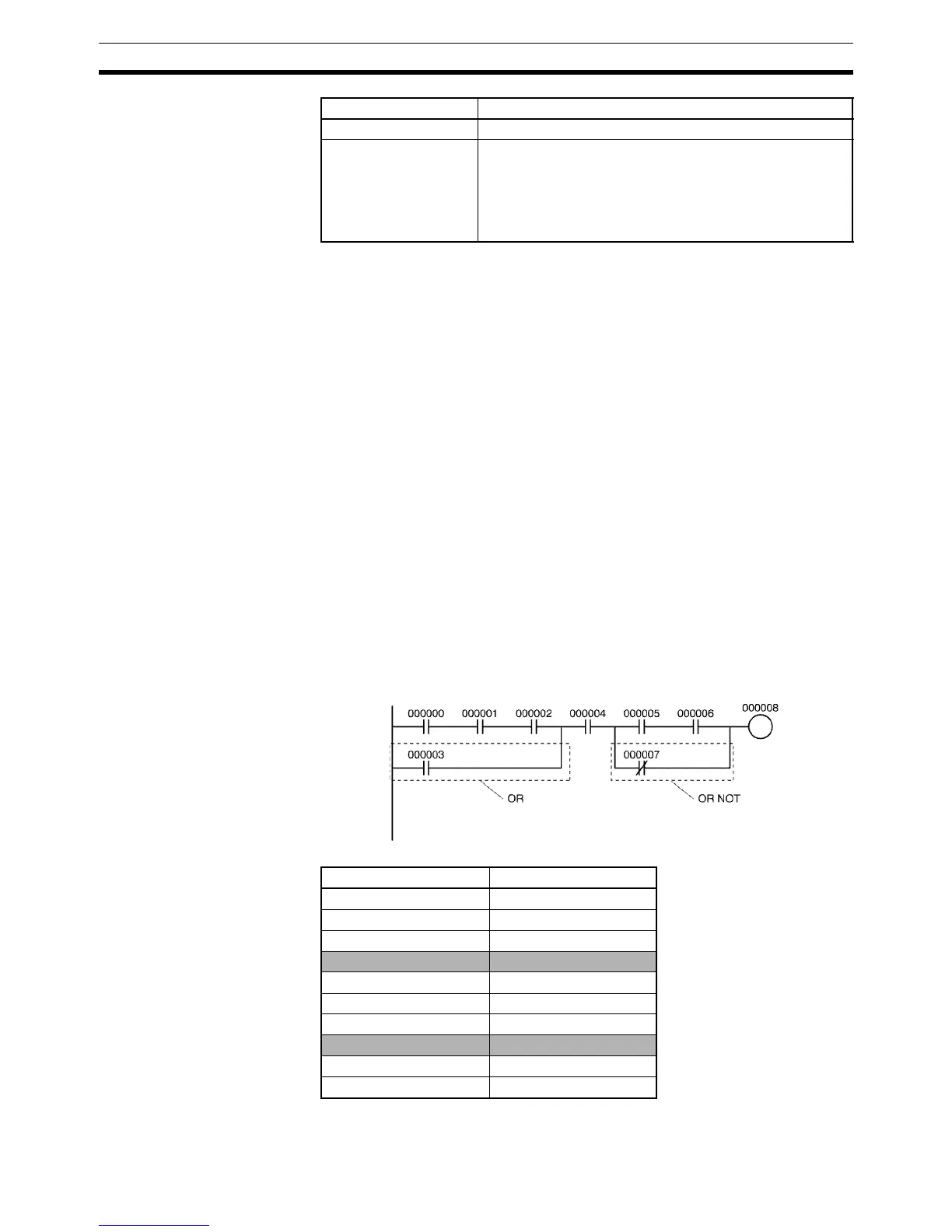

Example
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Area OR bit operand
Instruction Operand
LD 000000
AND 000001
AND 000002
OR 000003
AND 000004
LD 000005
AND 000006
OR NOT 000007
AND LD ---
OUT 000008
