Clock Instructions Section 3-28

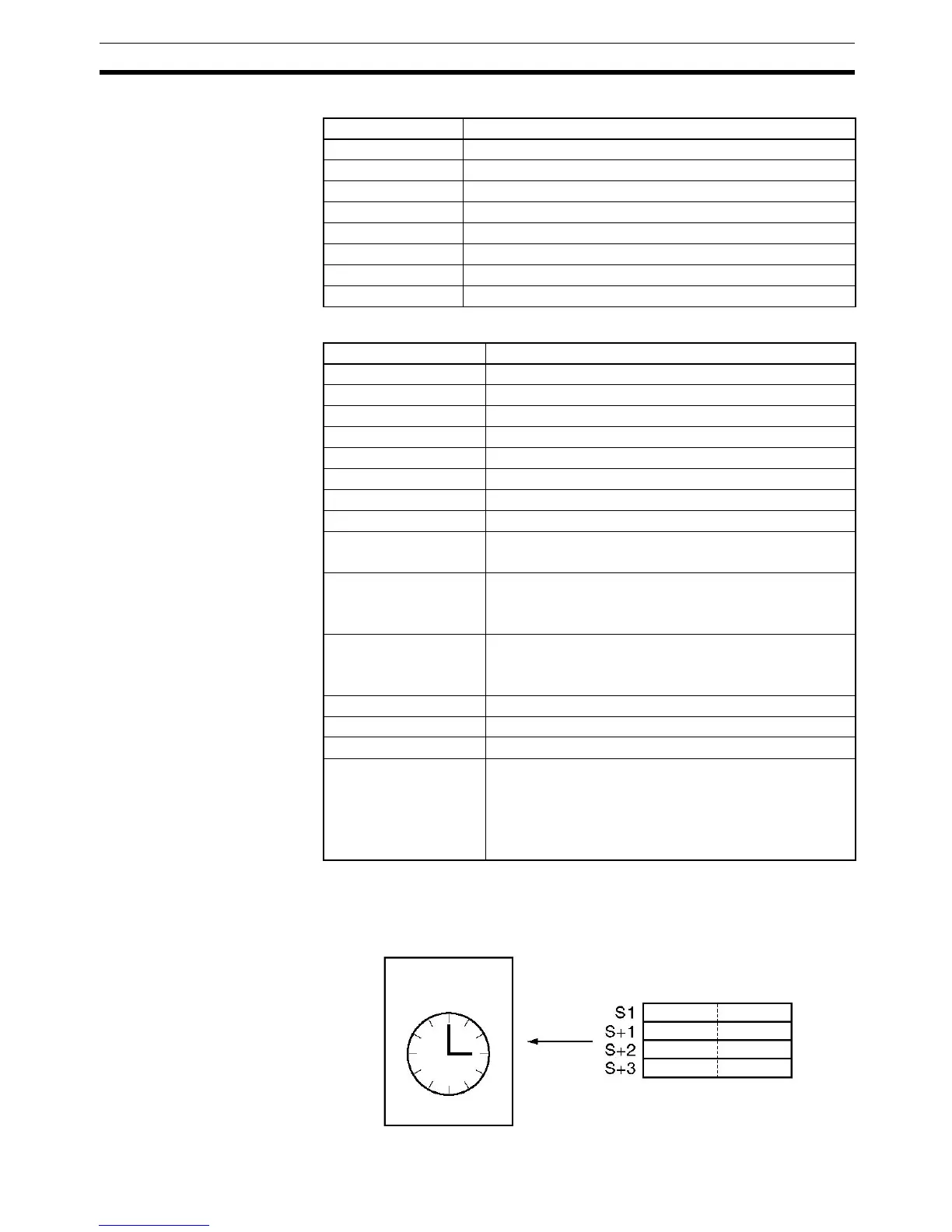

The following table shows the structure of the Calendar/Clock Area.
Operand Specifications
Description DATE(735) changes the internal clock setting according to the clock data in
the four source words. The new internal clock setting is immediately reflected
in the Calendar/Clock Area (A351 to A354).
Addresses Contents
A35100 to A35107 Second (00 to 59, BCD)
A35108 to A35115 Minute (00 to 59, BCD)
A35200 to A35207 Hour (00 to 23, BCD)
A35208 to A35215 Day of month (01 to 31, BCD)
A35300 to A35307 Month (01 to 12, BCD)
A35308 to A35315 Year (00 to 99, BCD)
A35400 to A35407 Day of week (00 to 06 = Sunday to Saturday, hexadecimal)
A35408 to A35415 Always set to 00.
Area S
CIO Area CIO 0000 to CIO 6140
Work Area W000 to W508
Holding Bit Area H000 to H508
Auxiliary Bit Area A000 to A956
Timer Area T0000 to T4092
Counter Area C0000 to C4092
DM Area D00000 to D32764
EM Area without bank E00000 to E32764
EM Area with bank En_00000 to En_32764
(n = 0 to C)
Indirect DM/EM
addresses in binary
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
Indirect DM/EM
addresses in BCD
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
Constants ---
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
00
CPU Unit
Internal clock
New setting
Day of week
Minutes Seconds
Day Hour
Year Month
