514
Conversion Instructions Section 3-12
Flags

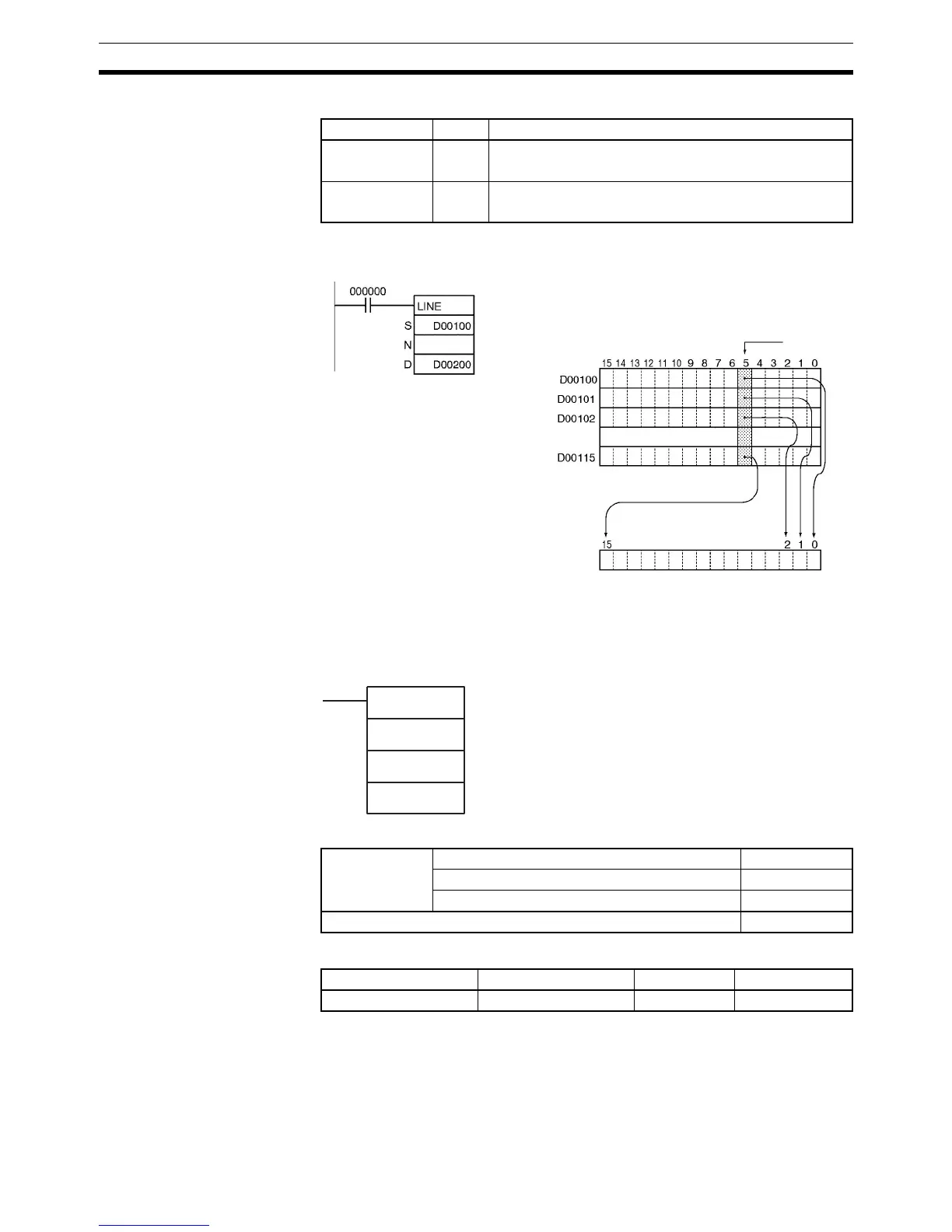

Example When CIO 000000 is ON in the following example, LINE(063) copies bit 5
from D00100 to D00115 to the 16 bits in D00200.
3-12-13LINE TO COLUMN: COLM(064)
Purpose Converts the 16 bits of the source word to a column of bits in a 16-word range
of destination words (the same bit number in 16 consecutive words).
Ladder Symbol
Variations
Applicable Program Areas
Operands D: First Destination Word
Specifies the first destination word. D and D+15 must be in the same data
area.
Name Label Operation
Error Flag ER ON if N is not within the specified range of 0000 to 000F.
OFF in all other cases.
Equals Flag = ON if D is 0000 after execution.
OFF in all other cases.
N: #0005
S:
D: D00200
to
to
&5
COLM(064)
S
D
N
S: Source word
D: First destination word
N: Bit number
Variations Executed Each Cycle for ON Condition COLM(064)
Executed Once for Upward Differentiation @COLM(064)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
