Sequence Control Instructions Section 3-5
When W00000 is OFF, the instructions between MILH(517) with interlock
number 0 and MILC(519) with interlock number 0 are interlocked.
When W00000 is ON and W00001 are OFF, the instructions between
MILH(517) with interlock number 1 and MILC(519) with interlock number 1 are
interlocked. The other instructions are executed normally.
3-5-6 JUMP and JUMP END: JMP(004) and JME(005)
Purpose When the execution condition for JMP(004) is OFF, program execution jumps
directly to the first JME(005) in the program with the same jump number.
JMP(004) and JME(005) are used in pairs.

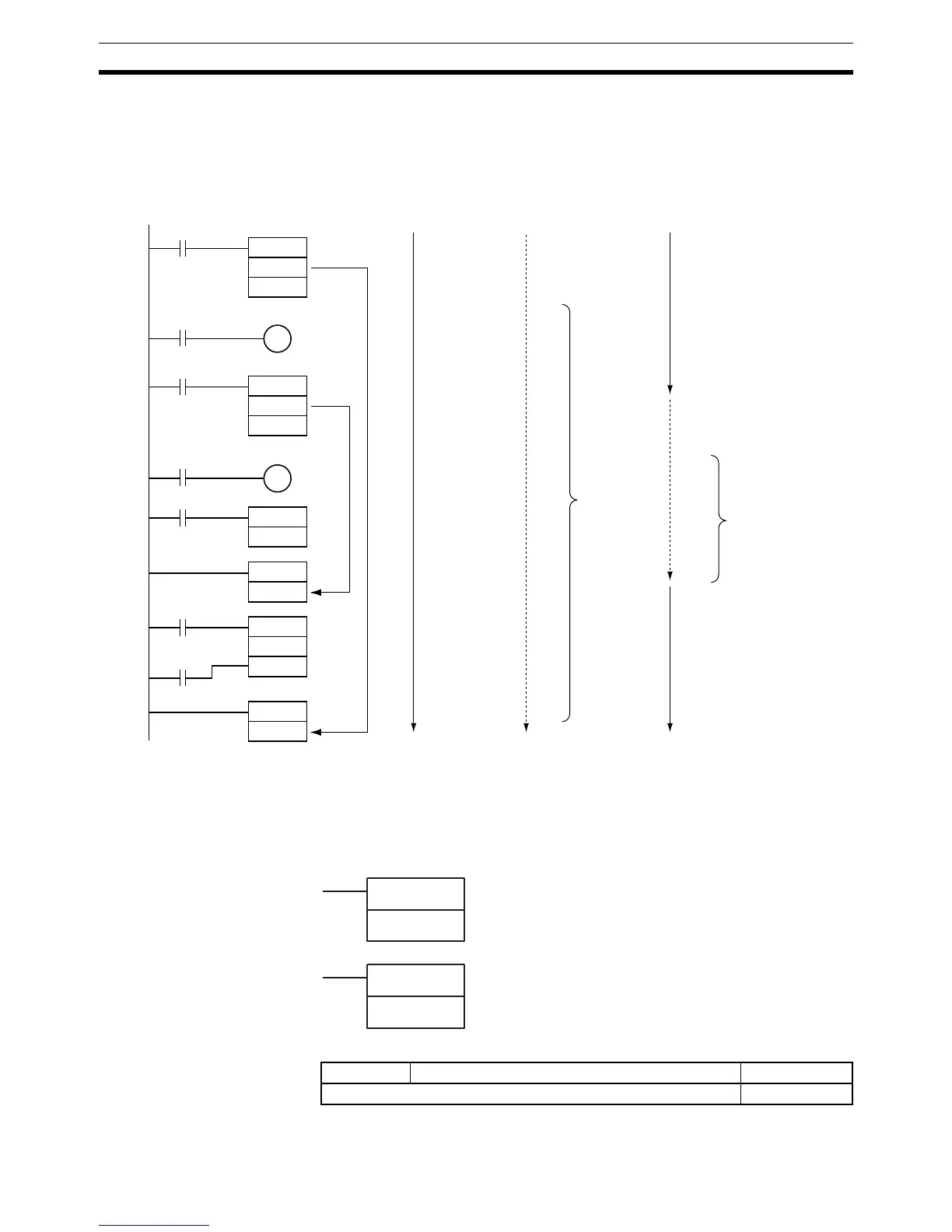

Ladder Symbols
Variations
W00000
000001
000002
000200
H0000
OFF
OFF
W0000 OFF
MILH
0
010000
W00001
MILH
1
010001
CNT
1
#0010
SET
000003
MILC
1
MILC
0
W00000 and W00001
both ON
W00000 ON and W00001
OFF
Executed
normally.
Executed
normally.
Outputs
interlocked.
Outputs
interlocked.
Held
Held
Executed
normally.
JMP(004)
N
JME(005)
N
N: Jump number
N: Jump number
Variations Jumps when OFF/Does Not Jump when ON JMP(004)
Immediate Refreshing Specification Not supported
