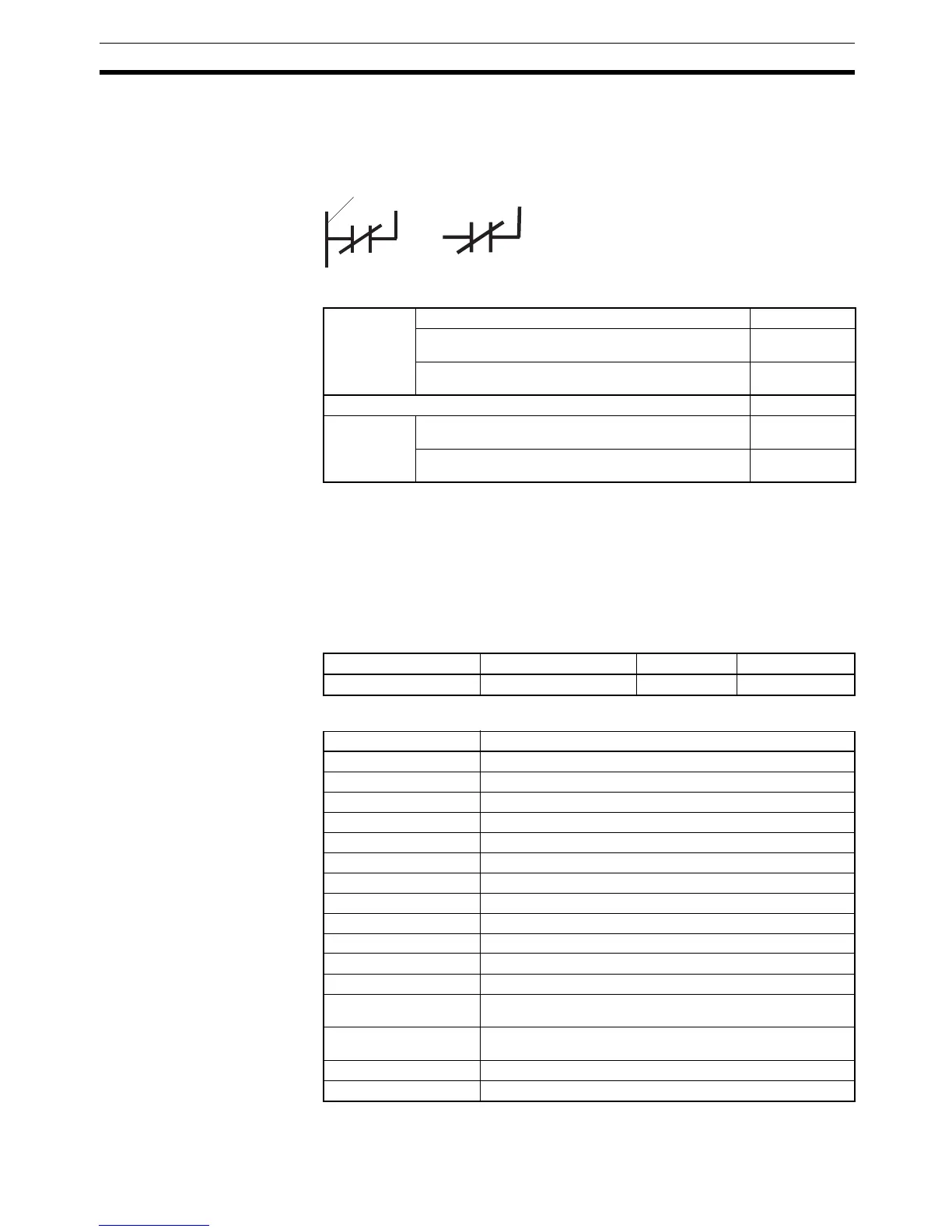

Sequence Input Instructions Section 3-3
3-3-6 OR NOT: OR NOT
Purpose Reverses the status of the specified bit and takes a logical OR with the current
execution condition.
Ladder Symbol
Variations
Note 1. The following variations are supported by only the CS1-H, CJ1-H, CJ1M,
or CS1D CPU Units: @OR NOT, %OR NOT, !@OR NOT, and !%OR NOT.
2. Immediate refreshing is not supported by CS1D CPU Units for Duplex-
CPU Systems.
3. Combined variations are supported by CS1D CPU Units for Single-CPU
Systems and CS1-H, CJ1-H, and CJ1M CPU Units only.
Applicable Program Areas
Operand Specifications
Bus bar
Variations Creates ON Each Cycle OR NOT Result is ON OR NOT
Creates ON Once for Upward Differentiation (See
note 1.)
@OR NOT
Creates ON Once for Downward Differentiation (See
note 1.)
%OR NOT
Immediate Refreshing Specification (See note 2.) !OR NOT
Combined
Variations
Refreshes Input Bit and Creates ON Once for
Upward Differentiation (See note 3.)
!@OR NOT
Refreshes Input Bit and Creates ON Once for
Downward Differentiation (See note 3.)
!%OR NOT
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area OR NOT bit operand
CIO Area CIO 000000 to CIO 614315
Work Area W00000 to W51115
Holding Bit Area H00000 to H51115
Auxiliary Bit Area A00000 to A95915
Timer Area T0000 to T4095
Counter Area C0000 to C4095
Task Flag Area TK0000 to TK0031
Condition Flags ER, CY, N, OF, UF, >, =, <, >=, <>, <=, A1, A0
Clock Pulses 0.02 s, 0.1 s, 0.2 s, 1 s, 1 min
TR Area ---
DM Area ---
EM Area with bank ---
Indirect DM/EM
addresses in binary
---
Indirect DM/EM
addresses in BCD
---
Constants ---
Data Registers ---
