Sequence Output Instructions Section 3-4
Description If there is no immediate refreshing specification, the status of the execution
condition (power flow) is reversed and written to a specified bit in I/O memory.
If there is an immediate refreshing specification, the status of the execution
condition (power flow) is reversed and also written to the Basic Output Unit’s
output terminal in addition to the output bit in I/O memory.
Flags There are no flags affected by this instruction.

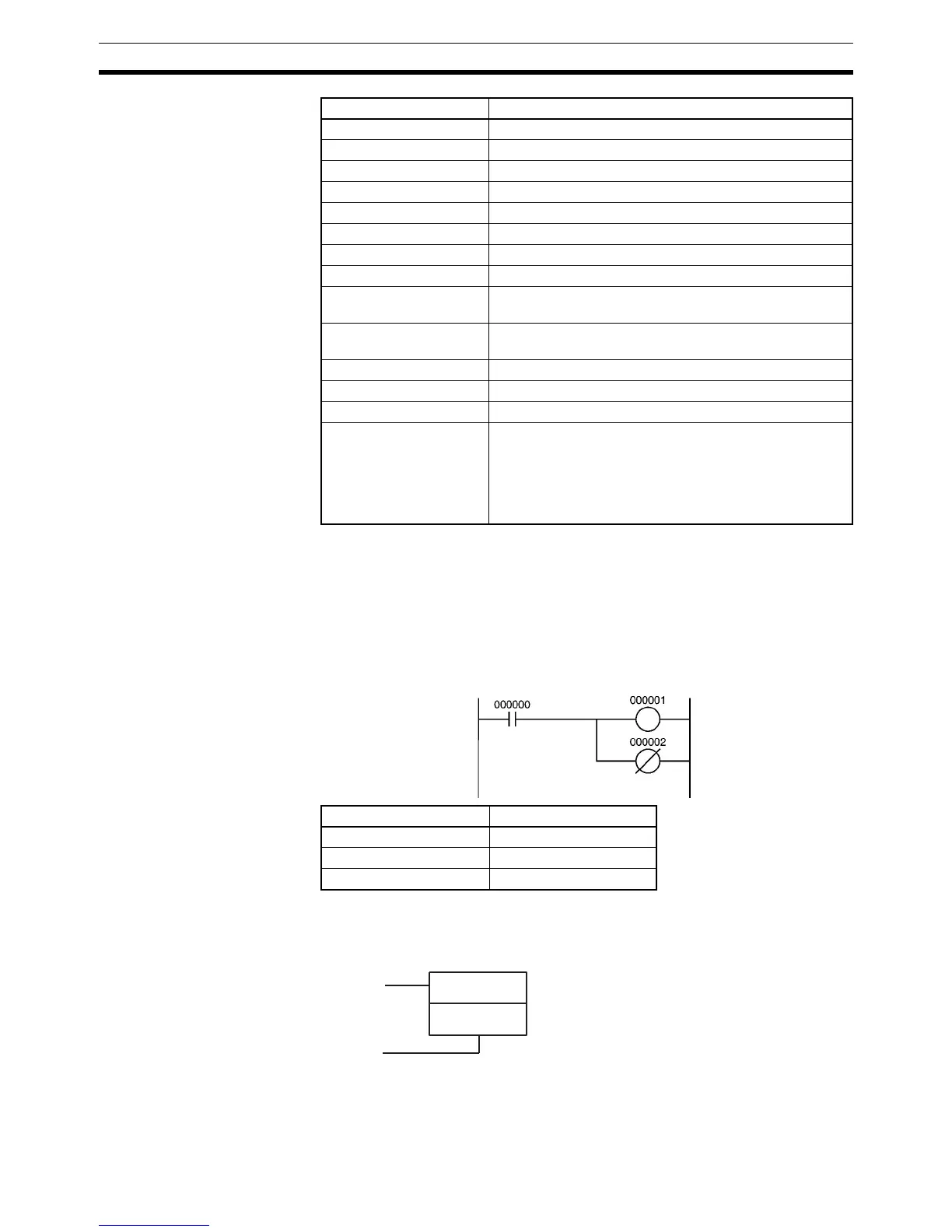

Example
3-4-3 KEEP: KEEP(011)
Purpose Operates as a latching relay.
Ladder Symbol
Holding Bit Area H00000 to H51115
Auxiliary Bit Area A44800 to A95915
Timer Area ---
Counter Area ---
TR Area TR0 to TR15
DM Area ---
EM Area without bank ---
EM Area with bank ---
Indirect DM/EM
addresses in binary
---
Indirect DM/EM
addresses in BCD
---
Constants ---
Data Registers ---
Index Registers ---
Indirect addressing using
Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to ,IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Area OUT bit operand
Instruction Operand
LD 000000
OUT 000001
OUT NOT 000002
KEEP(011)
B
S (Set)
R (Reset)
B: Bit
