189
Sequence Output Instructions Section 3-4
Variations
Note Immediate refreshing is not supported by CS1D CPU Units.
Applicable Program Areas
Operand Specifications

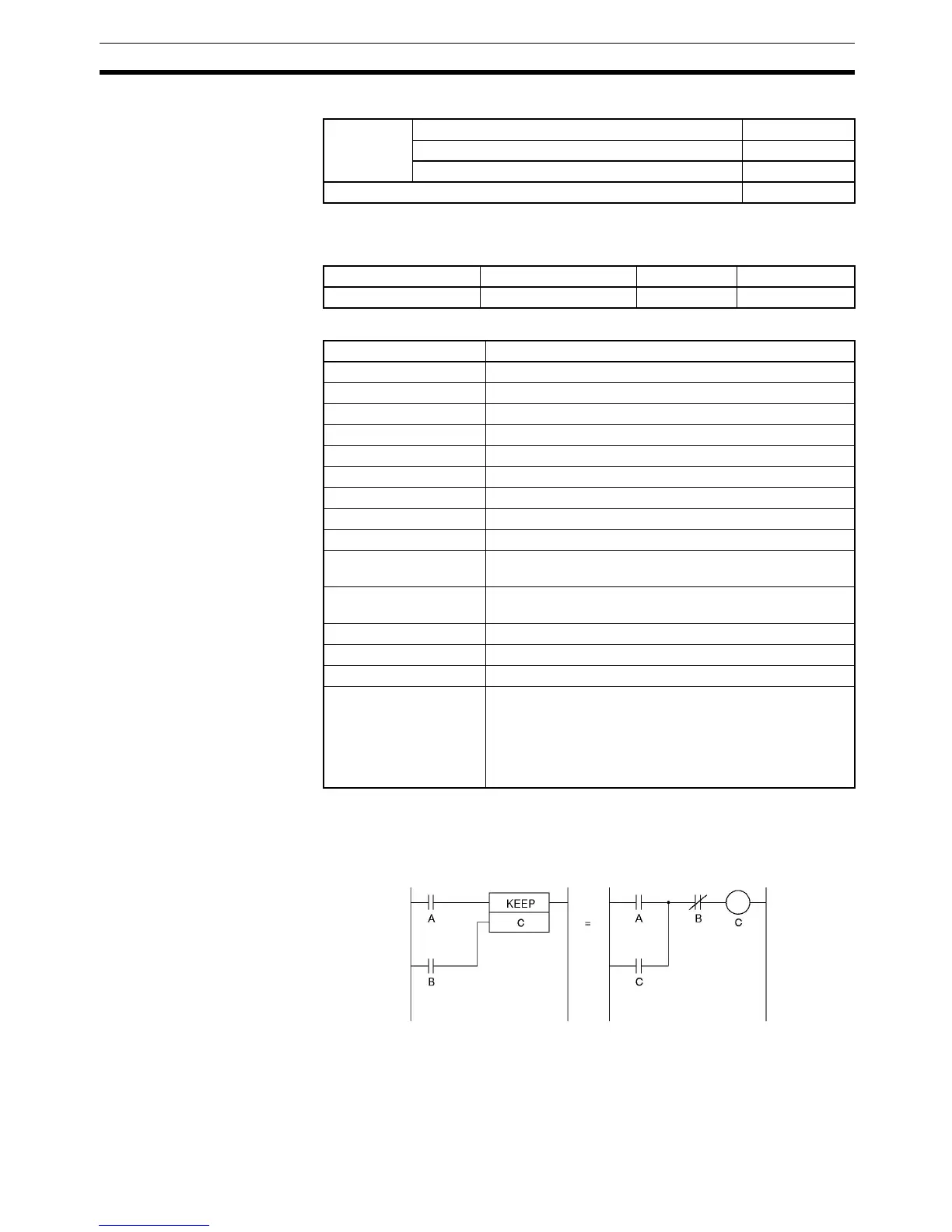

Description When S turns ON, the designated bit will go ON and stay ON until reset,
regardless of whether S stays ON or goes OFF. When R turns ON, the desig-
nated bit will go OFF. The relationship between execution conditions and
KEEP(011) bit status is shown below.
Variations Executed Each Cycle for ON Condition KEEP(011)
Executed Once for Upward Differentiation Not supported
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification (See note.) !KEEP(011)
Block program areas Step program areas Subroutines Interrupt tasks
Not allowed OK OK OK
Area B
CIO Area CIO 000000 to CIO 614315
Work Area W00000 to W51115
Holding Bit Area H00000 to H51115
Auxiliary Bit Area A44800 to A95915
Timer Area ---
Counter Area ---
DM Area ---
EM Area without bank ---
EM Area with bank ---
Indirect DM/EM
addresses in binary
---
Indirect DM/EM
addresses in BCD
---
Constants ---
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –) IR0 to, –(– –) IR15
Set
Reset
