617
Floating-point Math Instructions Section 3-15
instruction will not be executed. For information on converting from degrees to
radians, see 3-15-9 DEGREES TO RADIANS: RAD(458).

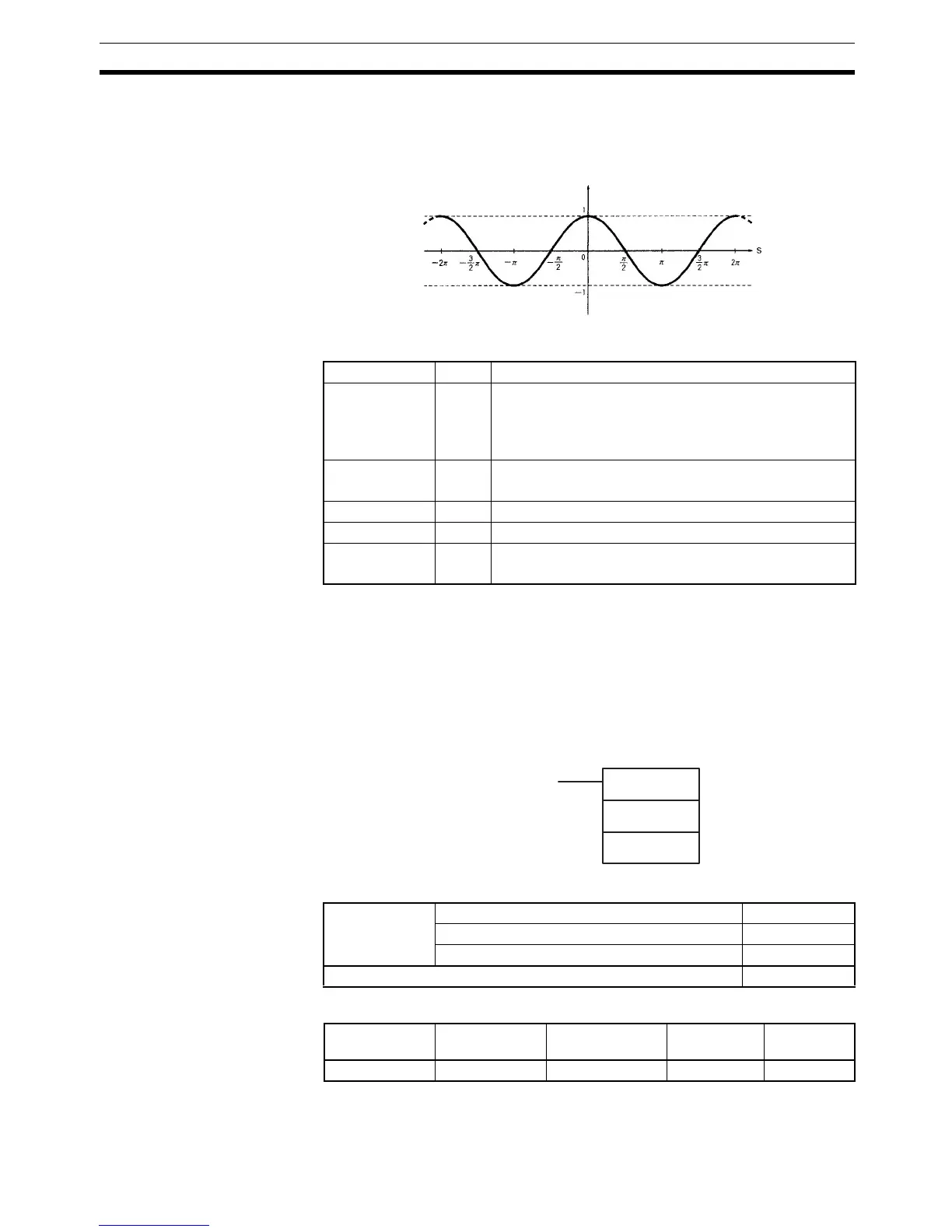

The following diagram shows the relationship between the angle and result.
Flags
Precautions The source data in S+1 and S must be in IEEE754 floating-point data format.
3-15-14HIGH-SPEED COSINE: COSQ(476)
Purpose Calculates the cosine of a 32-bit floating-point number (in radians) and places
the result in the specified result words.
Note These instructions can be used in the CJ1-H-R CPU Units only.
Ladder Symbol
Variations
Applicable Program Areas
R
S: Angle (radian) data
R: Result (cosine)
Name Label Operation
Error Flag ER ON if the source data is not a number (NaN).
ON if the absolute value of the source data exceeds
65,535.
OFF in all other cases.
Equals Flag = ON if both the exponent and mantissa of the result are 0.
OFF in all other cases.
Overflow Flag OF OFF
Underflow Flag UF OFF
Negative Flag N ON if the result is negative.
OFF in all other cases.
COSQ(476)
S
R
S: First source word
R: First result word
Variations Executed Each Cycle for ON Condition COSQ(476)
Executed Once for Upward Differentiation @COSQ(476)
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification Not supported.
Function block
definitions
Block program
areas
Step program
areas
Subroutines Interrupt
tasks
OK OK OK OK OK
