Block Programming Instructions Section 3-32

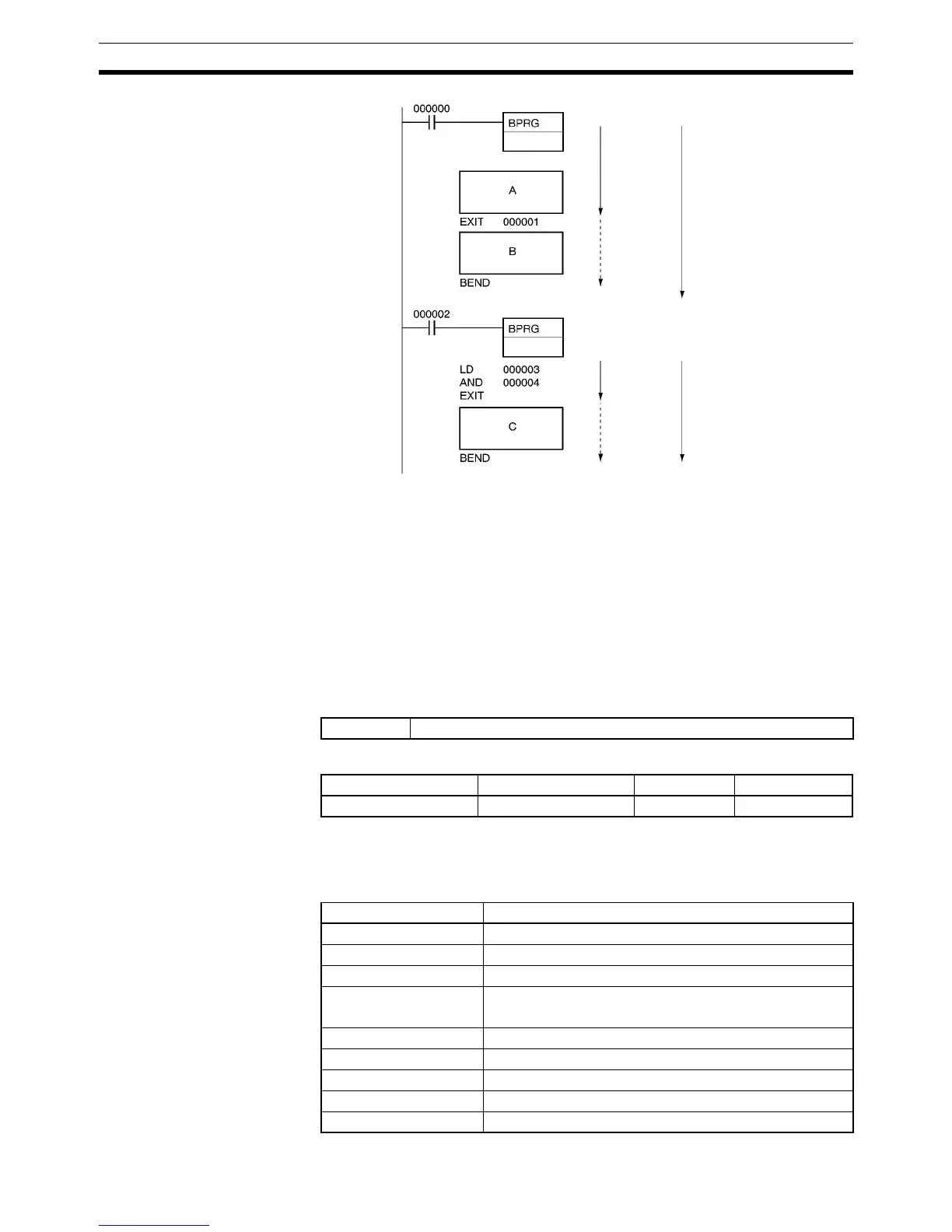

3-32-6 ONE CYCLE AND WAIT (NOT): WAIT(805)/WAIT(805) NOT
Purpose Stops execution of the rest of the block program until an execution condition
turns ON or an operand bit turns ON or OFF.
Ladder Symbol
Variations
Applicable Program Areas
Note WAIT(805)/WAIT(805) NOT must be used in block programming regions even
within subroutines and interrupt tasks.
Operand Specifications
CIO 000001 ON
CIO 000004 ON
CIO 000001 OFF
CIO 000004 OFF
0
2
Block ended
Block ended
CIO 000003 and CIO 000003 or
WAIT(805)
AIT(805)
WAIT(805) NOT B
B
B: Bit operand
Variations Always Executed in Block Program
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area B
CIO Area CIO 000000 to CIO 614315
Work Area W00000 to W51115
Holding Bit Area H00000 to H51115
Auxiliary Bit Area A00000 to A44715
A44800 to A95915
Timer Area T0000 to T4095
Counter Area C0000 to C4095
Task Flags TK0000 to TK0031
Condition Flags ER, CY, >, =, <, N, OF, UF, >=, <>, <=ON, OFF, AER
Clock Pulses 0.02 s, 0.1 s, 0.2 s, 1 s, 1 min
