Network Instructions Section 3-25
Attribute ID
Instance ID
Class ID
Service Code
0E 95 01 65

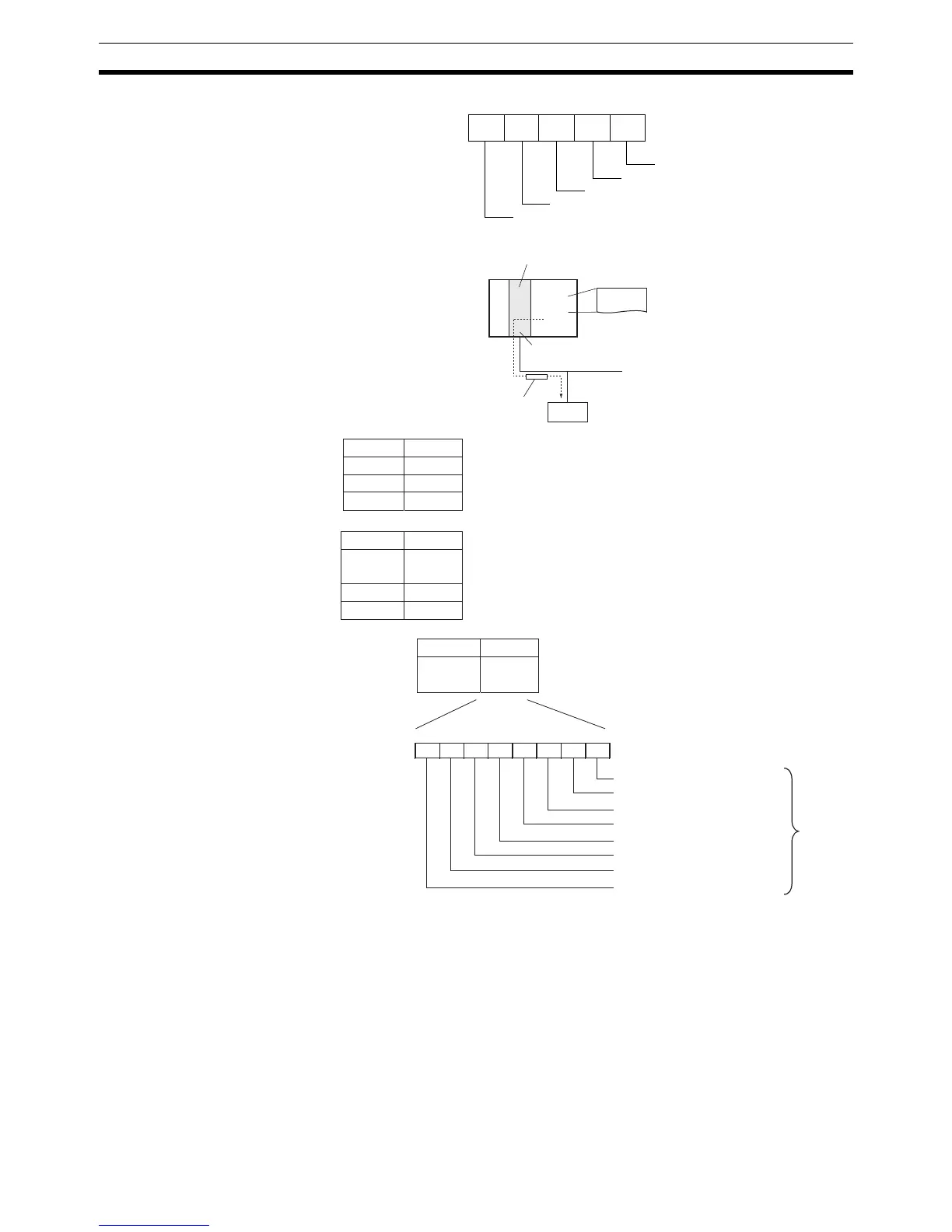

Explicit message command format
Destination node address
CS1W-DRM21 DeviceNet Unit
(CPU Bus Unit with unit number 2)
EGATR(721)
instruction
CPU
Unit
Unit address 12 hex (because
the unit number is 2)
Slave (I/O Terminal)
with node address 10
Explicit
message
S: D00000 0 0 0 A
S+1: D00001 0 0 9 5
S+2: D00002 0 0 0 1
S+3: D00003 0 0 6 5
C: D00200 0 0 0 2
C+1: D00201 8 6 1 2
C+2: D00202 0 0 0 0
C+3: D00203 0 0 0 0
Set 2 words = 0002 hex since there are 2 words in D to D+1.
Byte order = 8 hex (from rightmost byte), communications port = 6
hex (port 6), and the DeviceNet Unit’s unit address = 12 hex
Response monitoring time = 0000 hex (2 s)
Explicit format type = 0000 hex (DeviceNet format)
Slave’s node address = 10 = 0A hex
Class ID = 95 hex
Instance ID = 01 hex
Attribute ID = 65 hex
D: D00100 0 0 0 1
D+1: D00101 0 0 4 8
76543210
D00101
01001000
Basic Unit's I/O Power Status Flag
Expansion Unit's I/O Power Status Flag
Low Network Power Voltage Flag
Unit Maintenance Flag
Sensor Disconnected Flag
Sensor Power Shorted Flag
Operation Time Over Flag
Connected Device Maintenance Flag
D contains 0 hex for the 1 byte of data returned to the rightmost byte
of D+1.
The Slave’s general status is returned to bits 00 to 07.
(The data is stored in bits 00 to 07 because the byte order setting in
C+1 bits 12 to 15 was set to 8 hex (from rightmost byte).
General
status
