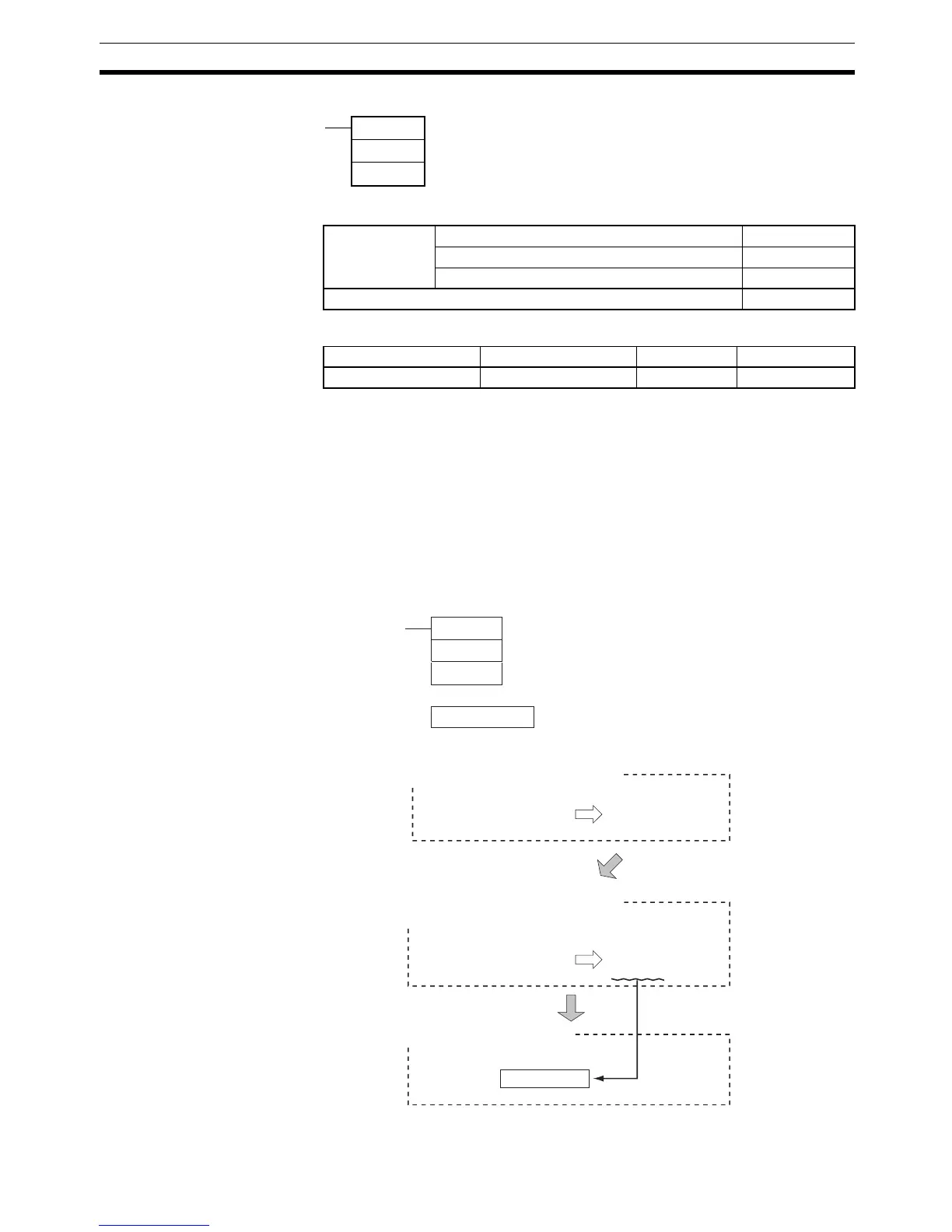

Other Instructions Section 3-31
Ladder Symbol
Variations
Applicable Program Areas
Description When the execution condition is ON, FRMCV(284) executes the following
operations.
1. The CV-series PLC memory address specified in S is converted to its
equivalent CV-series data area address.
2. FRMCV(284) determines the CS/CJ-series PLC memory address that cor-
responds to the same CV-series data area address.
3. The CS/CJ-series PLC memory address is output to D. (An index register
(IR0 to IR15) must be specified for D.)
The following example shows FRMCV(284) used to convert the CV-series
PLC memory address for D00001.
FRMCV(284)
S
D
S: Word containing the CV-
series PLC memory address
D: Destination Index Register
Variations Executed Each Cycle for ON Condition FRMCV(284)
Executed Once for Upward Differentiation @FRMCV(284)
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification Not supported.
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
FRMCV
D00000
IR1
#2001D00000
2001 Hex
D00001
D00001 10001 Hex
IR1
10001 Hex
1. The CV-series PLC memory address is
converted to its equivalent CV-series data
area address.
CV-series PLC
memory address
CV-series data
area address
CS/CJ-series data
area address
CS/CJ-series
PLC memory
2. The corresponding CV-series data area
address is converted to its CS/CJ-series
PLC memory address.
Storage
3. The CS/CJ-series PLC memory
address is stored in D.
