1181

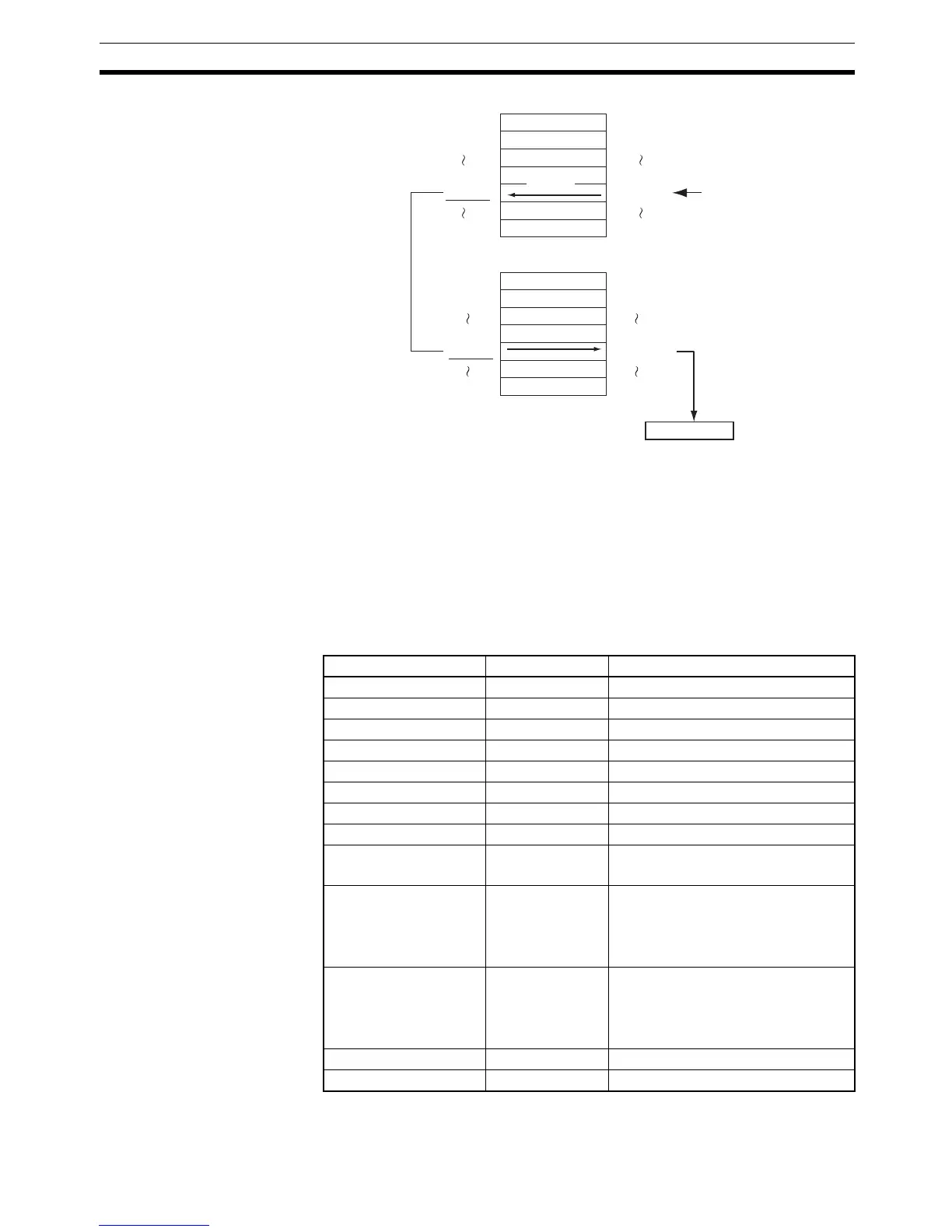

Other Instructions Section 3-31
Note 1. If there is no CV-series equivalent to the specified CS/CJ-series PLC mem-
ory address, an error will occur, the Error Flag will be turned ON, and the
address will not be converted.
2. The CV-series PLC memory address data stored by TOCV(285) can be
transferred to a CV-series PLC using CX-Programmer.
3. The same data area address that was used in the CS/CJ-series program
can be specified in the CV-series program by using indirect Index Register
addressing ( “,IR” prefix) or indirect binary mode DM addressing (*DM).
Operand Specifications
0000Hex
0001Hex
2000Hex
2001Hex
FFFDHex
0C000Hex
0C001Hex
10000Hex
10001Hex
FFFFFHex
0000CH
0001CH
D00000
D00001
E32765
S
D00100 2001Hex
0000CH
0001CH
D00000
D00001
EC_32767
D:
Specify the CS/CJ-series
PLC memory address in S.
(In this case, 10001 hex is
the PLC memory address of
D00001.)
Data area address PLC memory address
Convert
Corresponding
data area
address
CS/CJ-series
The corresponding CV-series
PLC memory address is
stored in D. (In this case,
data area address D00001 is
converted to PLC memory
address 2001 hex and
stored.)
Convert
CV-series
Area S D
CIO Area --- CIO 0000 to CIO 6143
Work Area --- W000 to W511
Holding Bit Area --- H000 to H511
Auxiliary Bit Area --- A448 to A959
Timer Area --- T0000 to T4095
Counter Area --- C0000 to C4095
DM Area --- D00000 to D32767
EM Area without bank --- E00000 to E32767
EM Area with bank --- En_00000 to En_32767
(n = 0 to C)
Indirect DM/EM
addresses in binary
--- @ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
Indirect DM/EM
addresses in BCD
--- *D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
Constants See note 1. ---
Data Registers --- DR0 to DR15
