1192
Block Programming Instructions Section 3-32

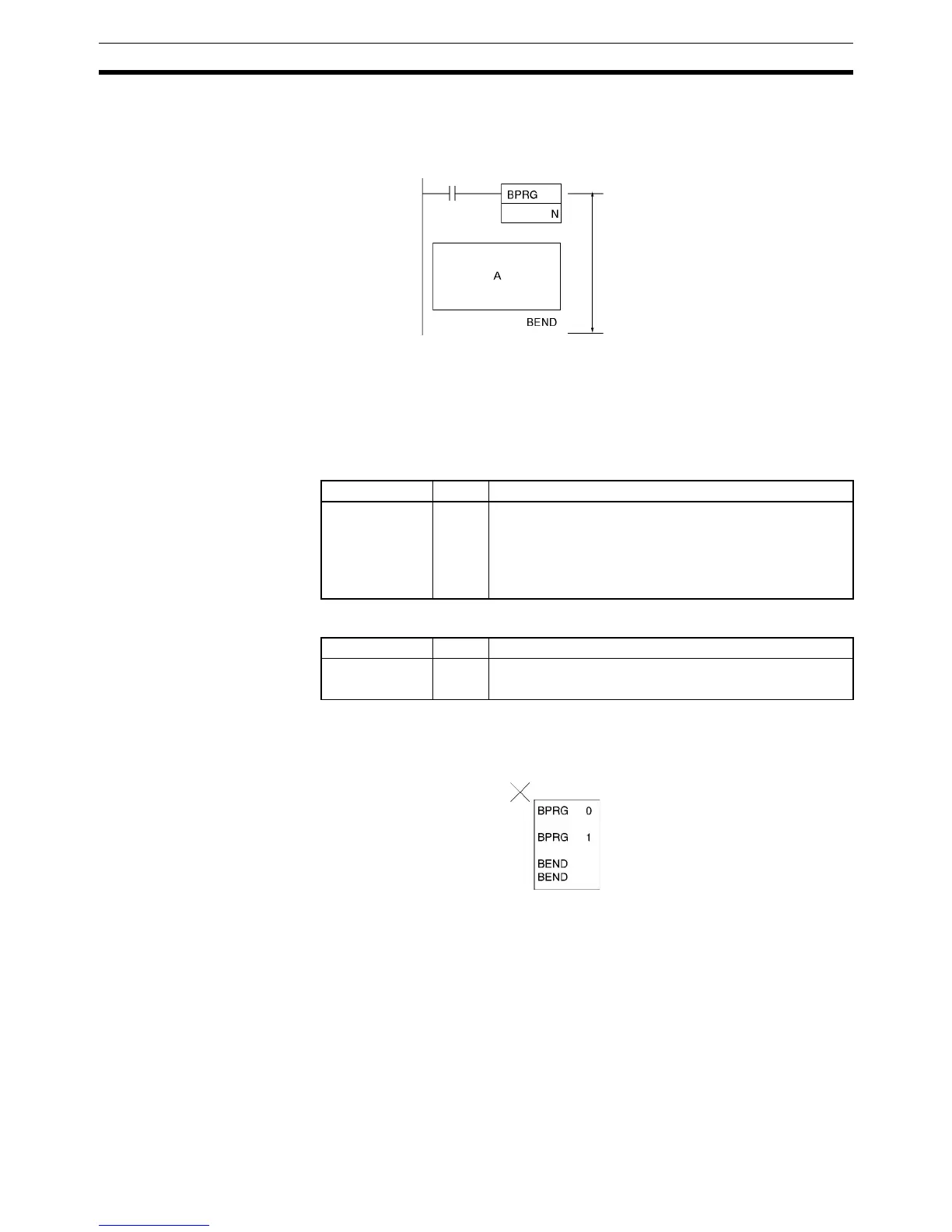

Description BPRG(096) executes the block program with the block number designated in
N, i.e., the one immediately after it and ending with BEND(801). All instruc-
tions between BPRG(096) and BEND(801) are executed with ON execution
conditions (i.e., unconditionally).
When the execution condition for BPRG(096) is OFF, the block program will
not be executed and no execution time will be required for the instruction in
the block program.
Execution of the block program can be stopped using BPPS(811) from within
another block program even if the execution condition for BPRG(096) is ON.
Flags BPRG(096)
BEND(801)
Precautions Each block program number can be used only once within the entire user pro-
gram.
Block programs cannot be nested.
If the block program is in an interlocked program section and the execution
condition for IL(002) is OFF, the block program will not be executed.
Block program
Executed when the execu-
tion condition is ON.
Name Label Operation
Error Flag ER ON if BPRG(096) is already being executed.
ON if N is not between 0 and 127.
ON if the same block program number is used more than
once.
OFF in all other cases.
Name Label Operation
Error Flag ER ON if a block program is not being executed.
OFF in all other cases.
Nesting NOT possible.
