1232
Text String Processing Instructions Section 3-33

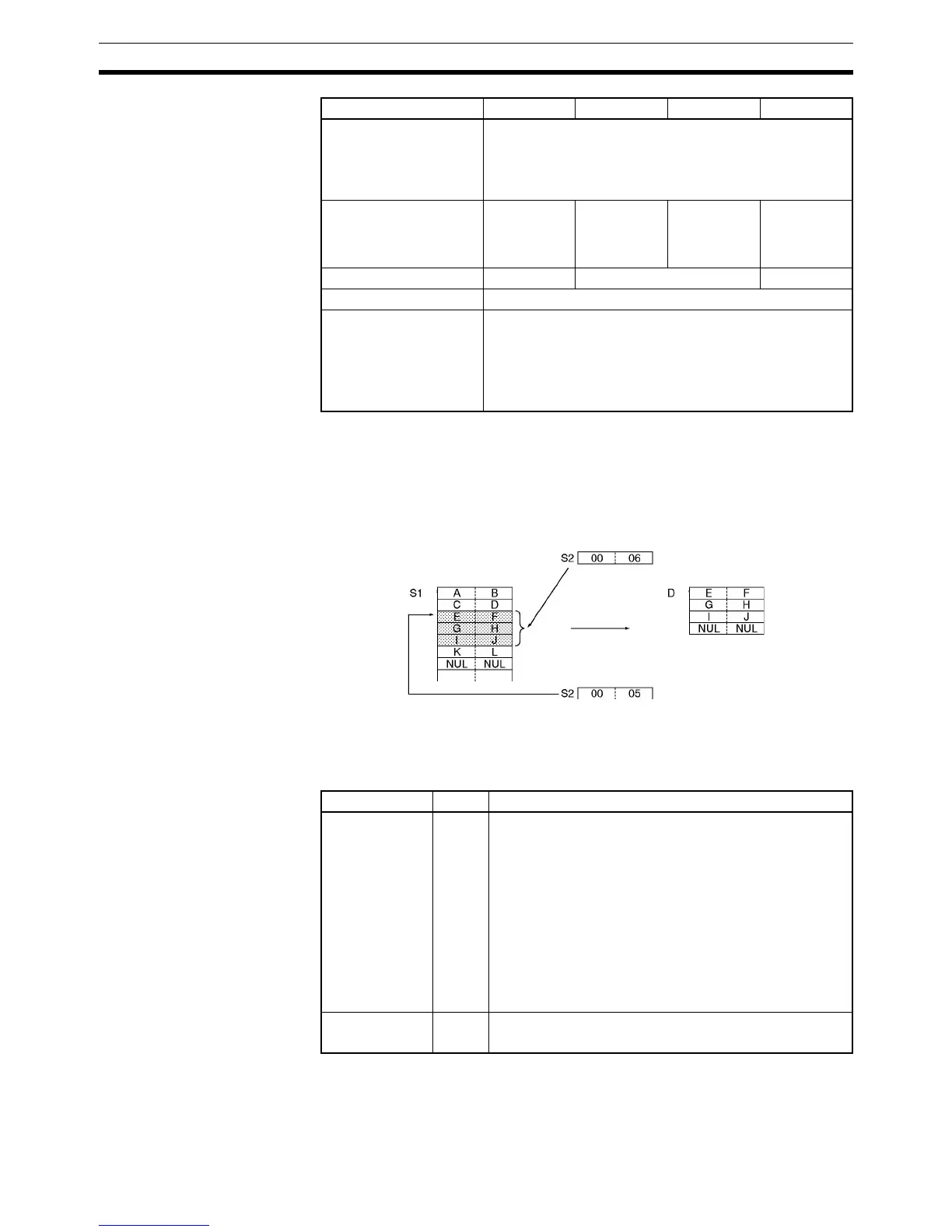

Description Within the text string identified by the first word designated by S1 until the
NUL code (00 hex), MID$(654) reads the number of characters designated by
S2, from the beginning word designated by S3, and outputs the result to D as
text string data (with NUL added at the end).
If the number of characters to be read extends beyond the end of the text
string designated by S1, the string will be output up to the end.
Note MID$(654) can be processed in the background. Refer to the SYSMAC CS/
CJ/NSJ Series PLC Programming Manual (W394) for details.
Flags
Precautions The range for the beginning position designated by S3 is the 1st to the
4,095th character (0001 to 0FFF hex). If the setting is outside of this range, an
error will be generated and the Error Flag will turn ON.
Indirect DM/EM
addresses in BCD
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
Constants --- #0000 to
#0FFF
(binary) or
&0 to &4095
#0001 to
#0FFF
(binary) or
&1 to &4095
---
Data Registers --- DR0 to DR15
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Area S1 S2 S3 D
Name Label Operation
Error Flag ER ON if more than 4,095 characters are designated by S1.
ON if more than 4,095 characters (0FFF hex) are desig-
nated by S2.
ON if the S3 data is within the range of 1 to 4,095 (0001
to 0FFF hex).
ON if S3 is greater than S1.
ON if the Communications Port Enabled Flag for the com-
munications port number specified as the Com Port num-
ber for Background Execution is OFF when background
processing is specified.
OFF in all other cases.
Equals Flag = ON if 0000 (hex) is output to D.
OFF in all other cases.
To Next Page
