305
Comparison Instructions Section 3-7
The immediate-refreshing variation (!CMP(020)) can be used with words allo-
cated to external inputs specified in S
1
and/or S
2
. When !CMP(020) is exe-
cuted, input refreshing will be performed for the external input word specified
in S
1
and/or S
2
and that refreshed value will be compared. (Immediate
refreshing cannot be performed on inputs allocated to Group-2 High-density
I/O Units or Units mounted to Slave Racks.)
Flags
Note In CS1-H, CJ1-H, CJ1M, and CS1D (for Single-CPU System) CPU Units,
these Flags are left unchanged.
In CS1 and CJ1 CPU Units, these Flags are turned OFF.

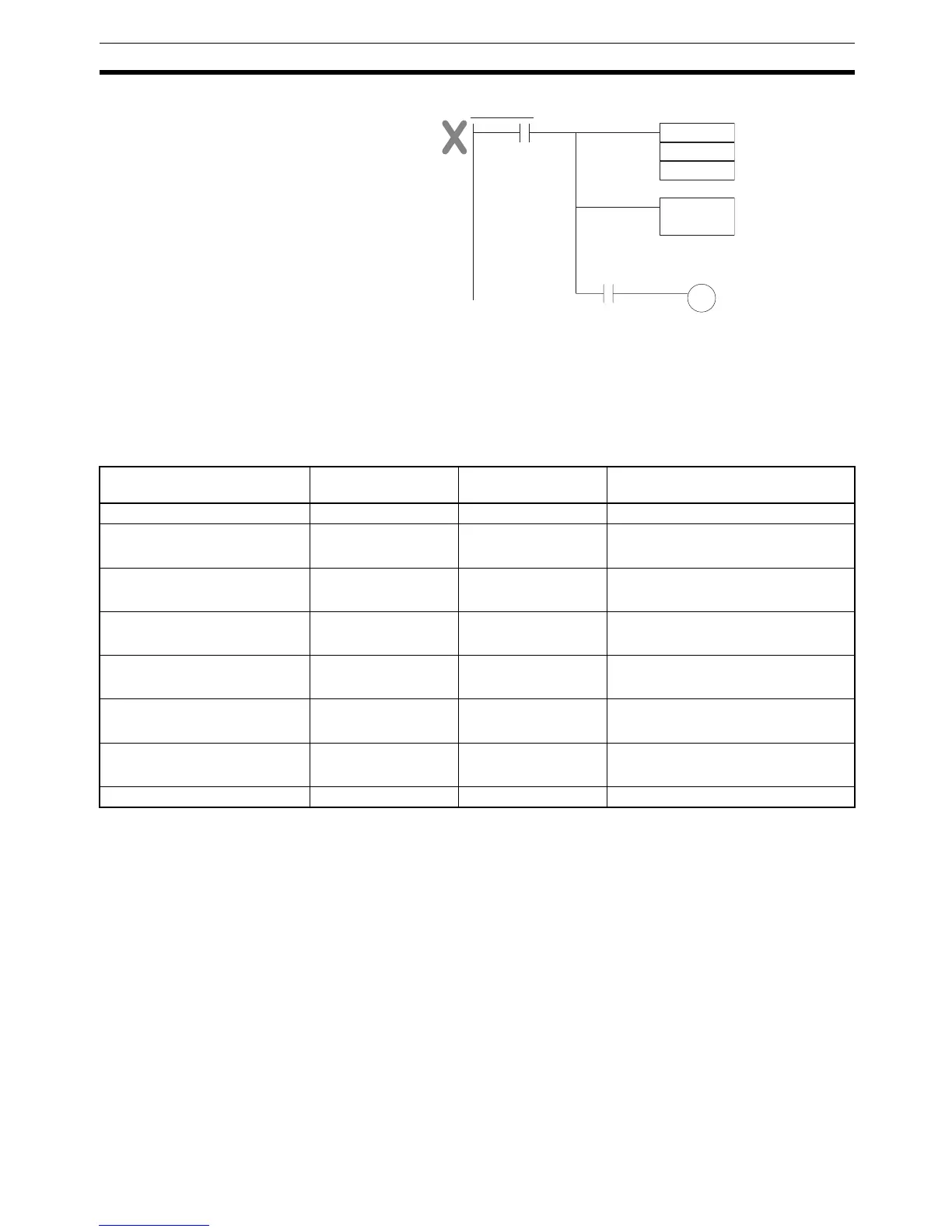

Precautions Do not program another instruction between CMP(020) and an input condition
that accesses the result of CMP(020) because the other instruction might
change the status of the Arithmetic Flags.
CMP
S1
S2
A
Incorrect Use of CMP(020)
Instruction
B
Arithmetic Flag
(Example: Equal Flag)
Name CX-Programmer
label
Programming
Console label
Operation
Error Flag P_ER ER Unchanged (See note.)
Greater Than Flag P_GT > ON if S
1
> S
2
.
OFF in all other cases.
Greater Than or Equal Flag P_GE > = ON if S
1
≥ S
2
.
OFF in all other cases.
Equal Flag P_EQ = ON if S
1
= S
2
.
OFF in all other cases.
Not Equal Flag P_NE = ON if S
1
≠ S
2
.
OFF in all other cases.
Less Than Flag P_LT < ON if S
1
< S
2
.
OFF in all other cases.
Less Than or Equal Flag P_LE < = ON if S
1
≤ S
2
.
OFF in all other cases.
Negative Flag P_N N Unchanged (See note.)
