332
Data Movement Instructions Section 3-8
Description Transfers S to D. If S is a constant, the value can be used for a data setting.
MOV(021) has an immediate refreshing variation (!MOV(021)). An external
input bits can be specified for S and external output bits can be specified for
D. Input bits used for S will refreshed just before, and output bits used for D
will be refreshed just after execution unless the bits are allocated to a Group-2
High-density I/O Unit, High-density Special I/O Unit, or a Unit mounted in a
SYSMAC BUS Remote I/O Slave Rack.
Flags

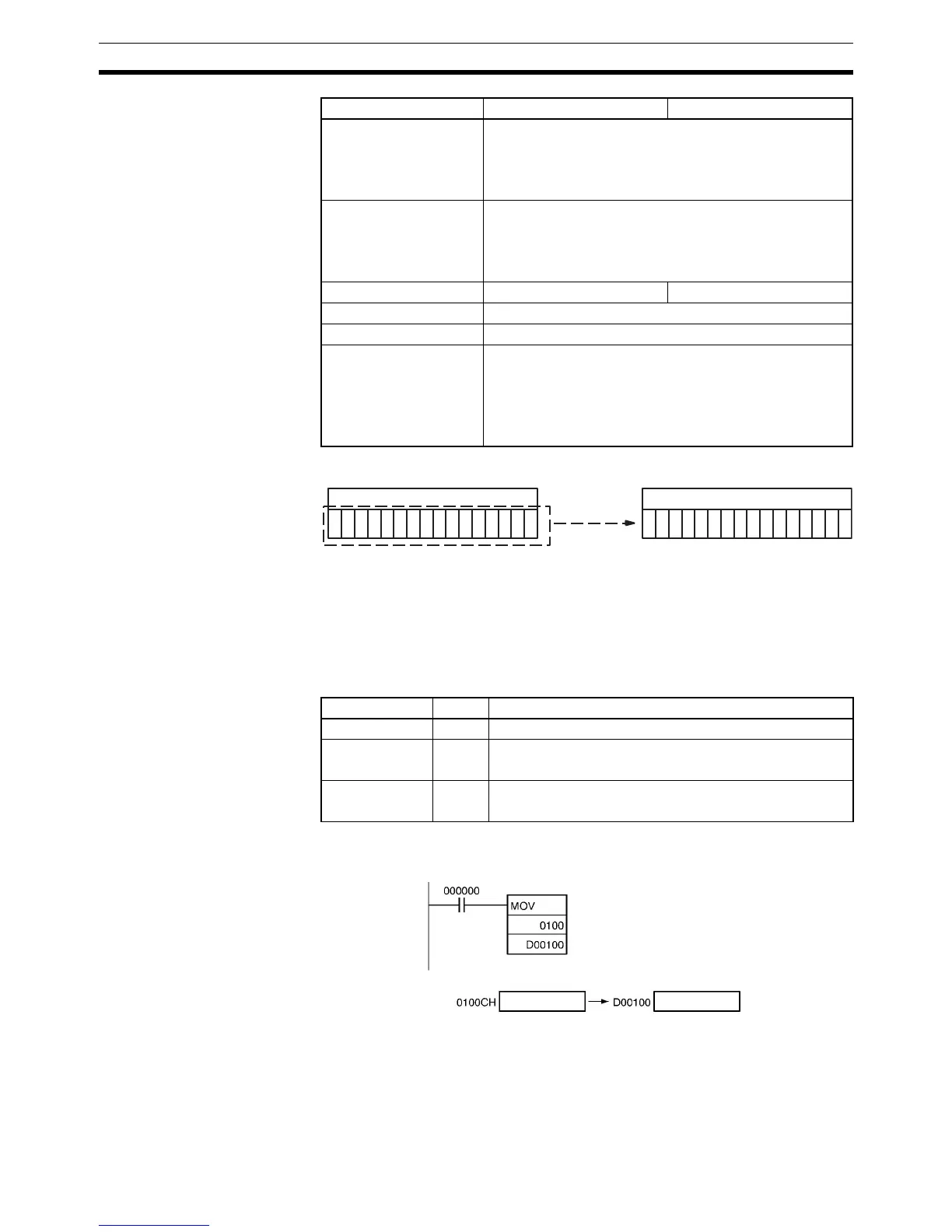

Example When CIO 000000 is ON in the following example, the content of CIO 0100 is
copied to D00100.
Indirect DM/EM
addresses in binary
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
Indirect DM/EM
addresses in BCD
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
Constants #0000 to #FFFF (binary) ---
Data Registers DR0 to DR15
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –) IR0 to, –(– –) IR15
Area S D
Destination word
Bit status not
changed.
Source word
Name Label Operation
Error Flag ER OFF
Equals Flag = ON if the data being transferred is 0000.
OFF in all other cases.
Negative Flag N ON if the leftmost bit of the data being transferred is 1.
OFF in all other cases.
