348
Data Movement Instructions Section 3-8

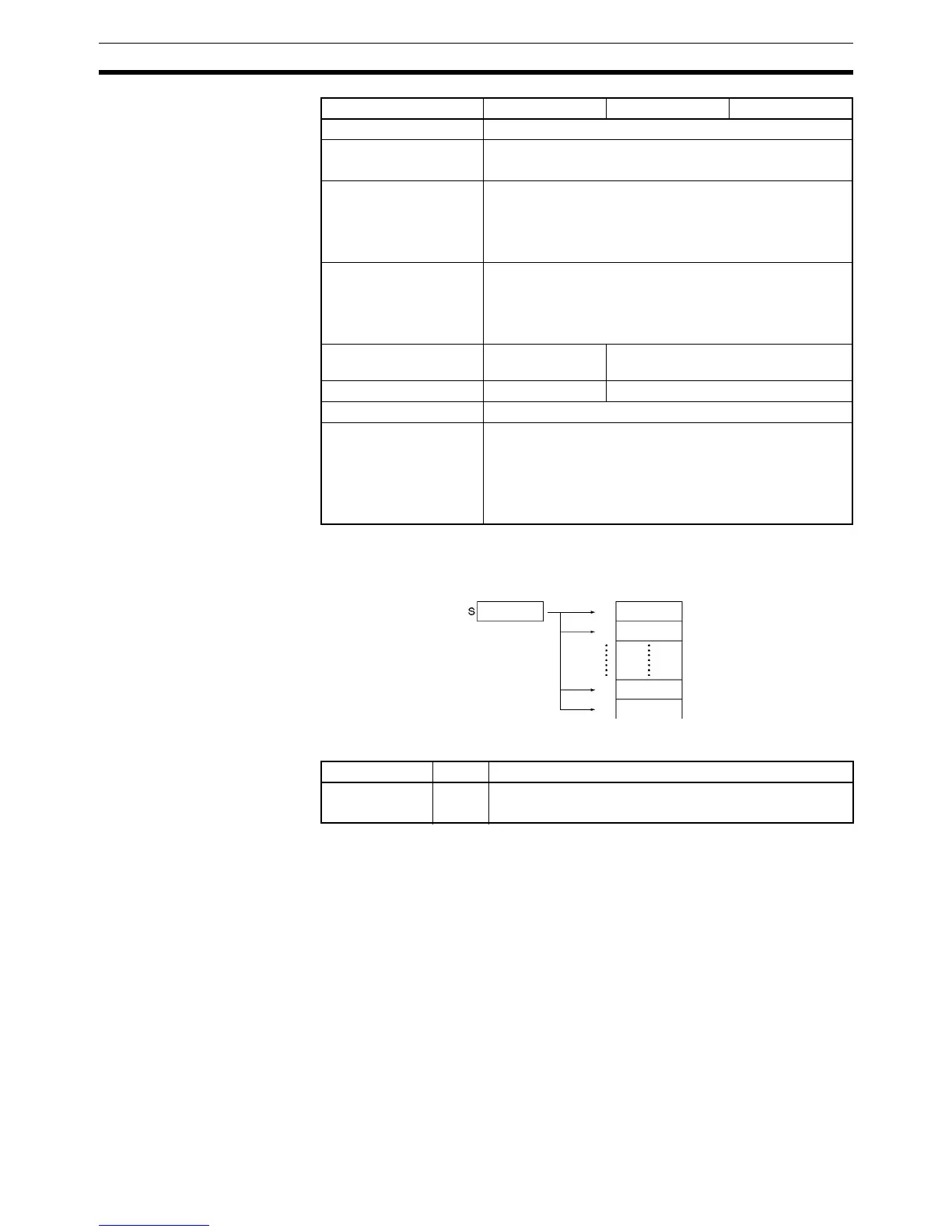

Description BSET(071) copies the same source word (S) to all of the destination words in
the range St to E.
Flags
Precautions Be sure that the starting word (St) and end word (E) are in the same data area
and that St
≤ E.
Some time will be required to complete BSET(071) when the source data is
being transferred to a large number of words. In this case, the BSET(071)
transfer might not be completed if a power interruption occurs during execu-
tion of the instruction.
Example When CIO 000000 is ON in the following example, the source data in D00100
is copied to D00200 through D00209.
EM Area without bank E00000 to E32767
EM Area with bank En_00000 to En_32767
(n = 0 to C)
Indirect DM/EM
addresses in binary
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
Indirect DM/EM
addresses in BCD
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
Constants #0000 to #FFFF
(binary)
---
Data Registers DR0 to DR15 ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –) IR0 to, 15–(– –) IR
Area S St E
E
Destination words
Source word
St
Name Label Operation
Error Flag ER ON if St is greater than E.
OFF in all other cases.
