Omron SYSMAC CJ - REFERENCE MANUAL 08-2008 User Manual

357

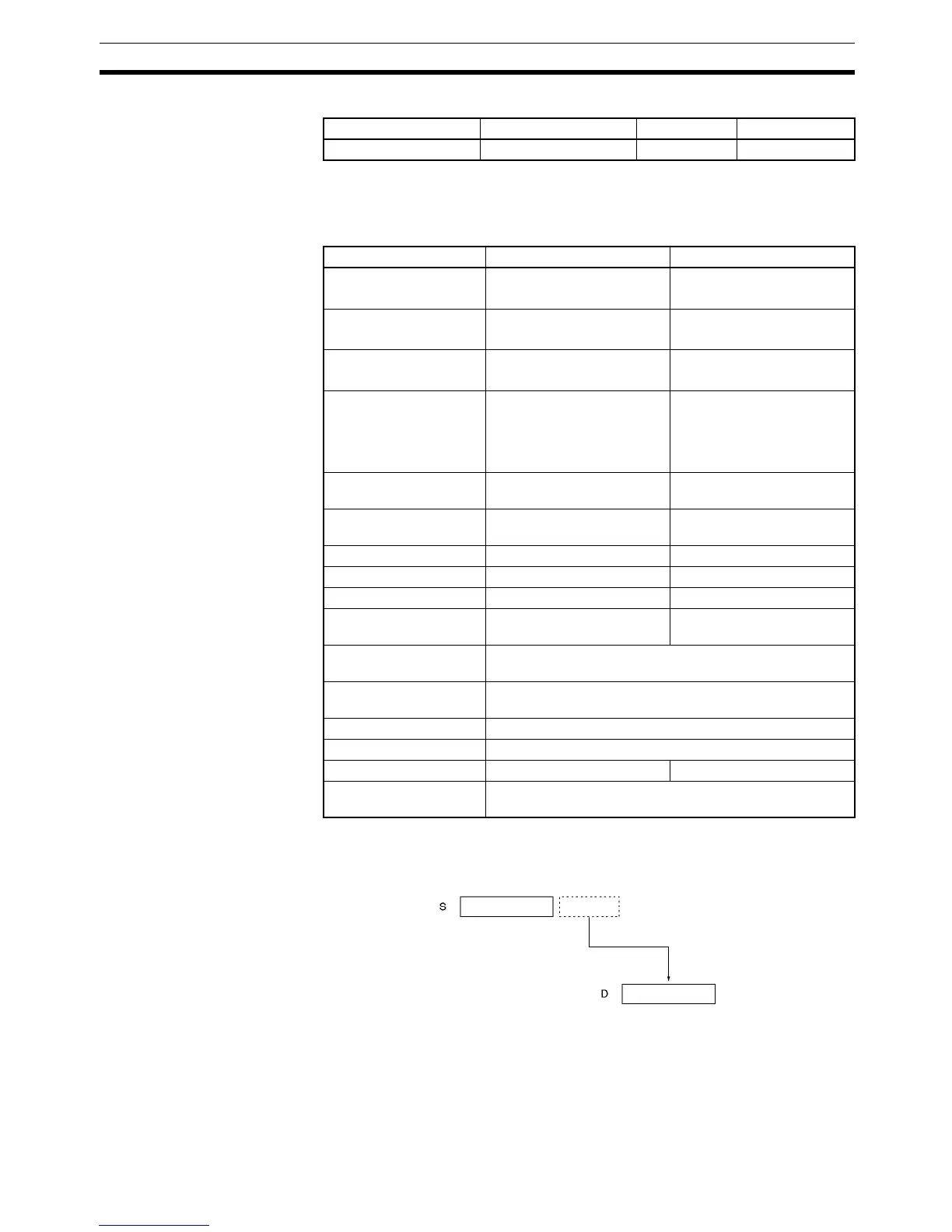

Data Movement Instructions Section 3-8
Applicable Program Areas
Operands D: Destination
The destination must be an Index Register (IR0 to IR15).
Operand Specifications
Description MOVR(560) finds the PLC memory address (absolute address) of S and
writes that address in D (an Index Register).
If a timer or counter is specified in S, MOVR(560) will write the PLC memory
address of the timer/counter Completion Flag in D. Use MOVRW(561) to write
the PLC memory address of the timer/counter PV in D.
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area S D
CIO Area CIO 0000 to CIO 6143
CIO 000000 to CIO 614315
---
Work Area W000 to W511
W00000 to W51115
---
Holding Bit Area H000 to H511
H00000 to H51115
---
Auxiliary Bit Area A000 to A447
A448 to A959
A00000 to A44715
A44800 to A95915
---
Timer Area T0000 to T4095
(Completion Flag)
---
Counter Area C0000 to C4095
(Completion Flag)
---
Task Flag TK0000 to TK0031 ---
DM Area D00000 to D32767 ---
EM Area without bank E00000 to E32767 ---
EM Area with bank En_00000 to En_32767
(n = 0 to C)
---
Indirect DM/EM
addresses in binary
---
Indirect DM/EM
addresses in BCD
---
Constants ---
Data Registers ---
Index Registers --- IR0 to IR15
Indirect addressing
using Index Registers
---
Internal I/O memory address of S
Index Register
