Symbol Math Instructions Section 3-11

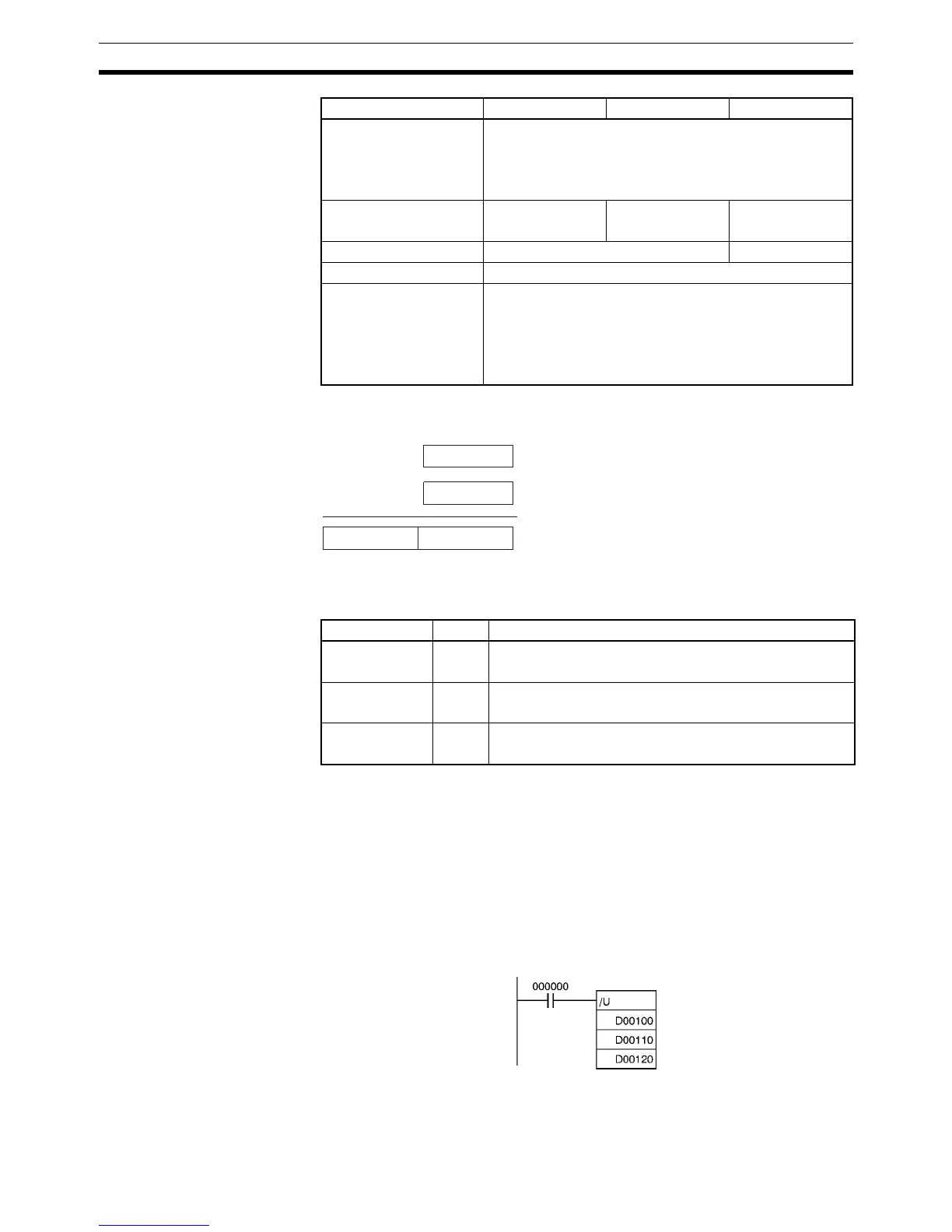

Description /U(432) divides the unsigned binary values in Dd by those in Dr and outputs
the quotient to R and the remainder to R+1.
Flags
Precautions If as a result of the division, the content of R+1 is 0, the Error Flag will turn
ON.
If as a result of the division, the content of R is 0000 hex, the Equals Flag will
turn ON.
If as a result of the division, the content of the leftmost bit of R is 1, the Nega-
tive Flag will turn ON.
Examples When CIO 000000 is ON in the following example, D00100 will be divided by
D00110 as 4-digit unsigned binary values and the quotient will be output to
D00120 and the remainder will be output to D00121.
Indirect DM/EM
addresses in BCD
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
Constants #0000 to #FFFF
(binary)
#0001 to #FFFF
(binary)
---
Data Registers DR0 to 15 ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Area Dd Dr R
R +1 R
÷
Dd
Dr
Remainder
(Unsigned binary)
(Unsigned binary)
(Unsigned binary)
Quotient
Name Label Operation
Error Flag ER ON when the result is 0.
OFF in all other cases.
Equals Flag = ON when as a result of the division, R is 0.
OFF in all other cases.
Negative Flag N ON when the leftmost bit of the R is 1.
OFF in all other cases.
